IDEC OT304-JE22059-SLC30 Test Report Technical Document
Summary
These comprehensive combination display lights are designed for professional signaling and industrial applications. This technical documentation confirms the series' robust performance against strict international standards (including UL508). The report validates reliable operation across diverse power sources—such as Full Voltage, Transformer, Resistor, and Flasher types—and ensures consistent function under extreme conditions, including low temperatures down to -25°C and high humidity. Ideal for engineers and maintenance professionals needing durable, fail-safe visibility systems.

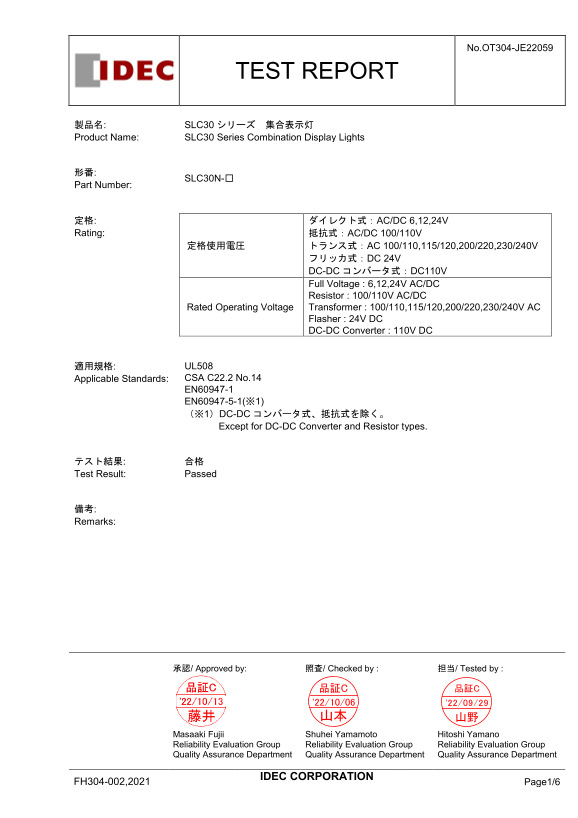

Page 1 Text Content
No.OT304-JE22059
TEST REPORT
製品名: SLC30シリーズ 集合表示灯 Product Name: SLC30 Series Combination Display Lights
SLC30N-□
Part Number:
定格: ダイレクト式：AC/DC 6,12,24V Rating: 抵抗式：AC/DC 100/110V
定格使用電圧 トランス式：AC 100/110,115/120,200/220,230/240V
フリッカ式：DC 24V DC-DCコンバータ式：DC110V Full Voltage : 6,12,24V AC/DC Resistor : 100/110V AC/DC
Rated Operating Voltage Transformer : 100/110,115/120,200/220,230/240V AC
Flasher : 24V DC DC-DC Converter : 110V DC
適用規格: UL508
Applicable Standards: CSA C22.2 No.14 EN60947-1 EN60947-5-1(※1) （※1）DC-DCコンバータ式、抵抗式を除く。 Except for DC-DC Converter and Resistor types.
テスト結果: 合格 Test Result: Passed
備考: Remarks:
承認/ Approved by: 照査/ Checked by : 担当/ Tested by :
Masaaki Fujii Shuhei Yamamoto Hitoshi Yamano
Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department
IDEC CORPORATION
FH304-002,2021 Page1/6
Page Summary Contents For IDEC OT304-JE22059-SLC30 Test Report Technical Document
Manual Details
| Brand | IDEC |
|---|---|
| Pages | 6 |
| File Size | 333.65 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What different voltages are available for the SLC30 series?
The ratings include Direct type (AC/DC 6, 12, 24V), Resistor type (AC/DC 100/110V), Transformer type (various AC mains), Flasher (24V DC), and DC-DC Converter types (e.g., 110V DC).
Are the display lights UL508 certified?
Yes, they comply with CSA C22.2 No.14 standard, and the test report confirms passing this applicable standard.
What is the maintenance limit for window count on different types?
Full Voltage 6, 12, 24V DC (w/Check Terminal) can handle up to 200 windows. Transformer type Flasher, DC-DC Converter, and Resistor are limited to 75 windows.
What is the operating temperature range?
The lights passed testing at various extreme conditions, including -20°C for Full Voltage/Transformer/Resistor types, and up to +40°C for normal operation.
