IDEC HS1L Test Report Technical Document

Summary

A highly reliable interlock switch featuring a solenoid and multi-point monitoring capabilities for industrial control safety systems. This technical documentation verifies the product's compliance and robust performance against stringent global standards, including IEC/EN 60947-5-1, IPX7 water resistance, and extensive endurance testing across electrical, mechanical, temperature, and humidity extremes. Designed for automation professionals and industrial engineers who require dependable and durable safety switching solutions in challenging operating environments.

📄 Preview ‹ PAGE OF 7 ›

‹

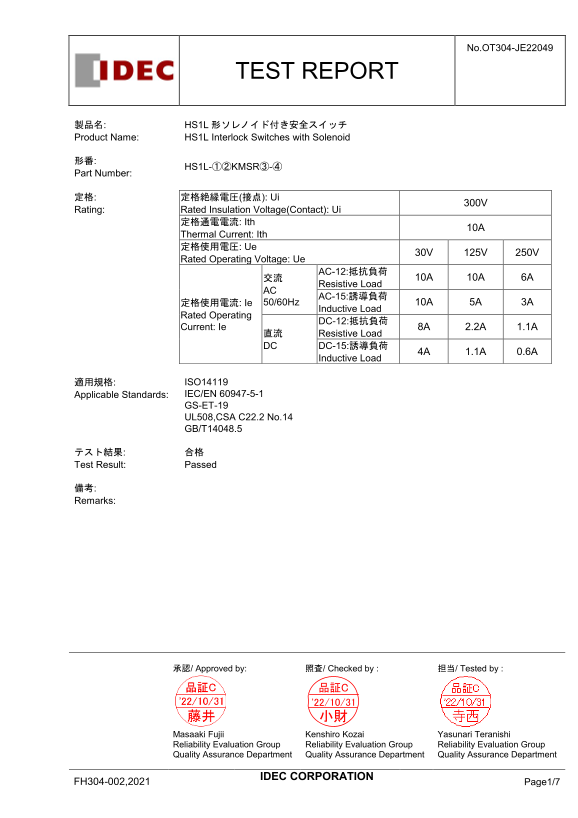

IDEC HS1L Test Report Technical Document - Page 1

›

Page 1 Text Content

No.OT304-JE22049

TEST REPORT

製品名: HS1L形ソレノイド付き安全スイッチ Product Name: HS1L Interlock Switches with Solenoid

HS1L-①②KMSR③-④

Part Number:

定格: 定格絶縁電圧(接点): Ui

Rating: Rated Insulation Voltage(Contact): Ui

定格通電電流: Ith

Thermal Current: Ith 定格使用電圧: Ue

Rated Operating Voltage: Ue

AC-12:抵抗負荷

Resistive Load

AC-15:誘導負荷

定格使用電流: Ie 50/60Hz 10A 5A 3A

Inductive Load

Rated Operating

DC-12:抵抗負荷

Current: Ie 8A 2.2A 1.1A

直流 Resistive Load DC DC-15:誘導負荷

Inductive Load

適用規格: ISO14119

Applicable Standards: IEC/EN 60947-5-1 GS-ET-19 UL508,CSA C22.2 No.14 GB/T14048.5

テスト結果: 合格 Test Result: Passed

備考: Remarks:

承認/ Approved by: 照査/ Checked by : 担当/ Tested by :

Masaaki Fujii Kenshiro Kozai Yasunari Teranishi

Reliability Evaluation Group Reliability Evaluation Group Reliability Evaluation Group Quality Assurance Department Quality Assurance Department Quality Assurance Department

IDEC CORPORATION

FH304-002,2021 Page1/7

Page Summary Contents For IDEC HS1L Test Report Technical Document

Page 1 No.OT304-JE22049 TEST REPORT 製品名: HS1L形ソレノイド付き安全スイッチ Product Name: HS1L Interlock Switches with Solenoid HS1L-①②KMSR③-④ Part Number: 定格: 定格絶縁電圧(接点): Ui Rating: Rated Insulation Voltage(Contact): Ui 定格...

Page 2 TEST REPORT No.OT304-JE22049 1. 対象形番 Part Number 1.1.ソレノイド付き安全スイッチ Interlock Switches with Solenoid HS1L-①②KMSR③-④ Part Number 項目記号機能 Item Code Function 回路番号メイン/ Main: 1NC+1NC Circuit Number R ドアモニ...

Page 3 TEST REPORT No.OT304-JE22049 2. 試験結果一覧 Test Results List 試験項目結果適用規格 Test Items Result Applicable Standards 接触抵抗合格 1. Contact Resistance Passed 絶縁抵抗合格 2. Insulation Resistance Passed インパルス耐電圧合格 3....

Page 4 TEST REPORT No.OT304-JE22049 3. 試験結果 Test Result 試験項目試験方法 / 結果 Test Items Test Method and Result 方法測定方法:電圧降下法 Method Measure Method: Voltage Drop 接触抵抗判定基準 50mΩ以下(初期値) 1. Contact Resistance Criteria...

Page 5 TEST REPORT No.OT304-JE22049 試験項目試験方法 / 結果 Test Items Test Method and Result Method Temperature: -40°C (no freezing) 保管耐寒 Duration: 96h Storage Low Temperature 判定基準試験後、試験品各部に破損および動作に異常のないこと。 Criteri...

Page 6 TEST REPORT No.OT304-JE22049 試験項目試験方法 / 結果 Test Items Test Method and Result Method [Damage limits] Acceleration: 1,000 m/s2 耐衝撃 Direction: 6 directions Shock Resistance 判定基準試験品各部に破損のないこと。 Criteria ...

Page 7 TEST REPORT No.OT304-JE22049 試験項目試験方法 / 結果 Test Items Test Method and Result 開閉回数: 100,000回 (AC-15 3A/250V) 1,000,000回 (AC/DC 24V 100m A ) Method Operation Frequency: 900 operations/h Total Operation...

Manual Details

Brand	IDEC
Pages	7
File Size	351.33 KB
Published	June 05, 2026

24 views

Enter the captcha to get the download link:

Frequently Asked Questions

What standards are applicable to this safety switch?

It complies with ISO14119 and IEC/EN 60947-5-1.

Can the device be used in various electrical environments (AC/DC)?

Yes, it supports AC voltages up to 250V and DC voltages up to 125V.

What are the performance ratings for different loads?

For Resistive Loads: AC-12 can handle 10A, 10A, or 6A; DC-12 can handle 8A, 2.2A, or 1.1A.

What kind of environments is the switch rated for?

The switch passed tests including -40°C to +80°C, confirming durable operation in various temperature ranges.
