HP Scitex FB10000 Industrial Printer Geffen TS Error Code 66053
Summary
This comprehensive troubleshooting guide addresses critical Error ID 66053: Yellow cross valve front failed to close in complex pneumatic systems. It empowers skilled technicians and certified electricians with detailed diagnostic procedures for diagnosing malfunctions related to air pressure, 24V power supply, mechanical sticking, and faulty sensors or B&R modules. Use this manual to efficiently troubleshoot valve closure failures and ensure optimal system operation across the entire component array.

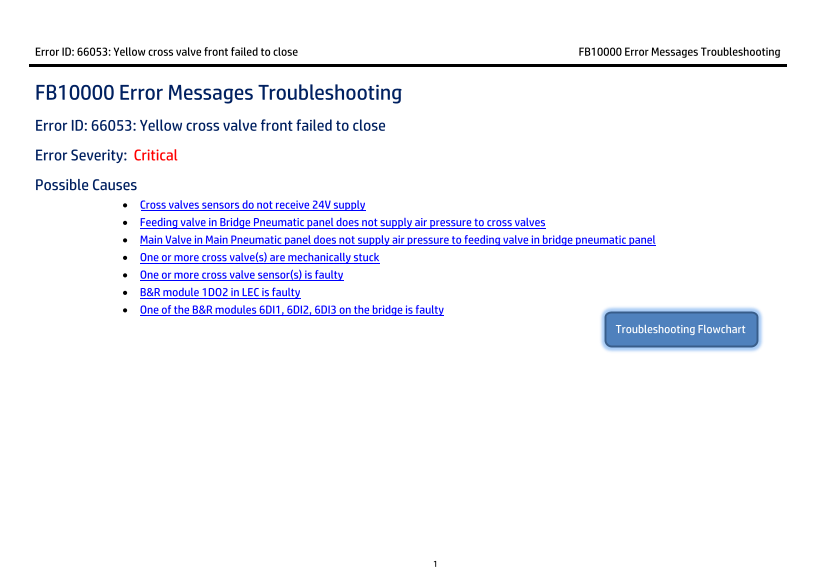

Page 1 Text Content
Error ID: 66053: Yellow cross valve front failed to close FB10000 Error Messages Troubleshooting
FB10000 Error Messages Troubleshooting Error ID: 66053: Yellow cross valve front failed to close Error Severity: Critical Possible Causes
Cross valves sensors do not receive 24V supply Feeding valve in Bridge Pneumatic panel does not supply air pressure to cross valves Main Valve in Main Pneumatic panel does not supply air pressure to feeding valve in bridge pneumatic panel One or more cross valve(s) are mechanically stuck One or more cross valve sensor(s) is faulty B&R module 1DO2 in LEC is faulty One of the B&R modules 6DI1, 6DI2, 6DI3 on the bridge is faulty
Troubleshooting Flowchart
Page Summary Contents For HP Scitex FB10000 Industrial Printer Geffen TS Error Code 66053
Manual Details
| Brand | Code |
|---|---|
| Pages | 7 |
| File Size | 639.91 KB |
| Published | May 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I troubleshoot if the yellow cross valve front fails to close (Error ID: 66053)?
Check for potential causes such as lack of 24V supply, no pressurized air (7 Bar), or mechanical obstruction.
My cross valves are not receiving pressure. What should I check?
First, check the air tube from the Feeding valve in the Bridge pneumatic panel. If that is okay, inspect the air outlet 1 from the Main Valve in the Main pneumatic panel and repair any leaks.
The yellow valve flag moves but the sensor doesn't change state. What does this mean?
This indicates that the optic sensor itself is faulty and needs to be replaced.
