HP Scitex FB10000 Industrial Printer Geffen TS Error 50017
Summary
This technical resource is essential for field engineers and maintenance technicians servicing industrial equipment with critical media handling functions. It provides comprehensive troubleshooting guidance for Error ID 50017, specifically addressing issues where the L1-axis fails to reach its designated Home position. The manual systematically covers potential hardware malfunctions, covering thorough checks of L1-home sensor functionality, motor coupling integrity, wiring paths between B&R modules and sensors, and necessary system initialization procedures. Use this guide to quickly diagnose and resolve complex electromechanical failures, ensuring efficient machine uptime.

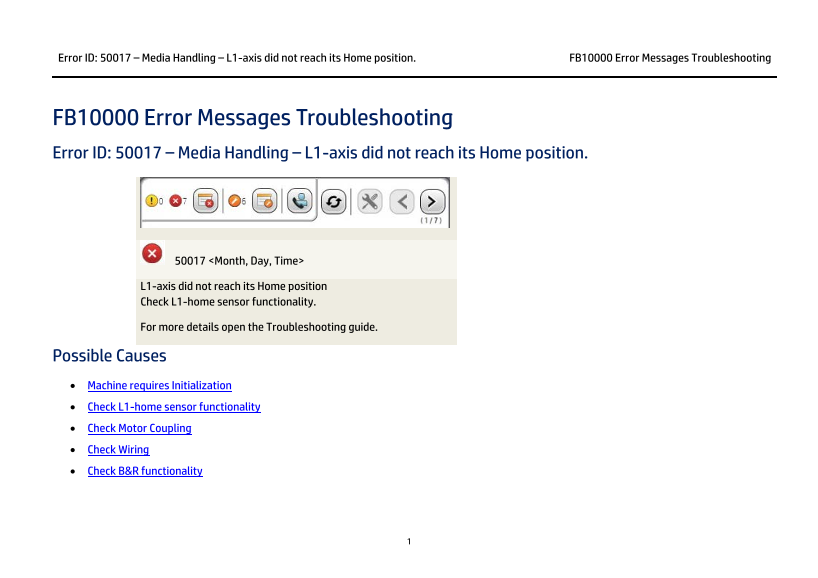

Page 1 Text Content
Error ID: 50017 – Media Handling – L1-axis did not reach its Home position. FB10000 Error Messages Troubleshooting
FB10000 Error Messages Troubleshooting Error ID: 50017 – Media Handling – L1-axis did not reach its Home position.
50017 <Month, Day, Time>
L1-axis did not reach its Home position Check L1-home sensor functionality.
For more details open the Troubleshooting guide.
Possible Causes • Machine requires Initialization • Check L1-home sensor functionality • Check Motor Coupling • Check Wiring • Check B&R functionality
Page Summary Contents For HP Scitex FB10000 Industrial Printer Geffen TS Error 50017
Manual Details
| Brand | HP |
|---|---|
| Pages | 3 |
| File Size | 111.47 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What does Error ID 50017 indicate?
It means the L1-axis did not reach its Home position during media handling.
How do I resolve the 'L1-axis did not reach its Home position' error initially?
Perform an INIT by tapping Get Ready. This procedure often corrects misalignment problems.
If the error persists after running INIT, what should I check regarding L1?
Verify that both the L1 sensor (Limit for T) and the L1-home sensor are properly positioned, undamaged, and functioning correctly.
What steps are required to check the motor coupling related to this error?
Check the belt, pulley, and specifically inspect the coupling connecting to the motor.
