HP Scitex FB10000 Industrial Printer Geffen TS Error 66049
Summary
This essential technical guide provides comprehensive troubleshooting steps for pneumatic automation systems featuring complex cross valve arrays. It details diagnostic processes for critical malfunction codes, including issues related to 24V electrical supply, air pressure loss, mechanical sticking, and faulty sensors across various modules (LEC, bridge panels). This manual is designed specifically for expert maintenance technicians and certified electricians who require deep-dive support to safely diagnose and resolve complex pneumatic and electronic control failures.
Page 1 Text Content

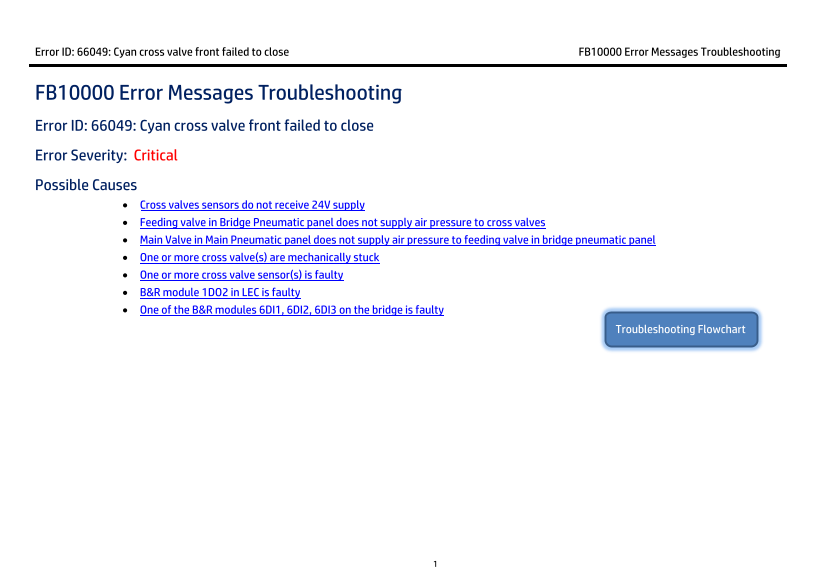

Error ID: 66049: Cyan cross valve front failed to close FB10000 Error Messages Troubleshooting
FB10000 Error Messages Troubleshooting Error ID: 66049: Cyan cross valve front failed to close Error Severity: Critical Possible Causes
Cross valves sensors do not receive 24V supply Feeding valve in Bridge Pneumatic panel does not supply air pressure to cross valves Main Valve in Main Pneumatic panel does not supply air pressure to feeding valve in bridge pneumatic panel One or more cross valve(s) are mechanically stuck One or more cross valve sensor(s) is faulty B&R module 1DO2 in LEC is faulty One of the B&R modules 6DI1, 6DI2, 6DI3 on the bridge is faulty
Troubleshooting Flowchart
Page Summary Contents For HP Scitex FB10000 Industrial Printer Geffen TS Error 66049
Manual Details
| Brand | HP |
|---|---|
| Pages | 7 |
| File Size | 627.39 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the immediate safety warning for troubleshooting this system?
Do not touch any wiring while the system is UP, as it is a High Voltage System; only an HP certified electrician may perform tests.
How do I check if the cross valves are getting proper electrical power (24V)?
Check the central 24V supply path from the LEC to the cross-valves, and inspect all wiring and connections for continuity.
What should I do if the cyan cross valve fails to close?
First, check air leakage in tubes, then verify the pressurized air feed from both the Main Valve and the Feeding valve using disconnectable fittings.
My cross-valve flag moves but the sensor state doesn't change; what does that mean?
If voltage is confirmed, it indicates that the optic sensor itself is faulty and needs to be replaced.
