This comprehensive troubleshooting manual is essential for diagnosing critical operational failures within advanced industrial pneumatic systems, specifically concerning cross-valve functionality. It provides expert guidance to skilled technicians on identifying root causes for valve failure, whether electrical (24V supply checks) or pneumatic (main air pressure and leakage). The guide details mechanical inspections, sensor fault isolation, and advanced diagnostics involving main valves and electronic modules (B&R/LEC), ensuring safe and accurate system repair by qualified personnel.
Page 1 Text Content

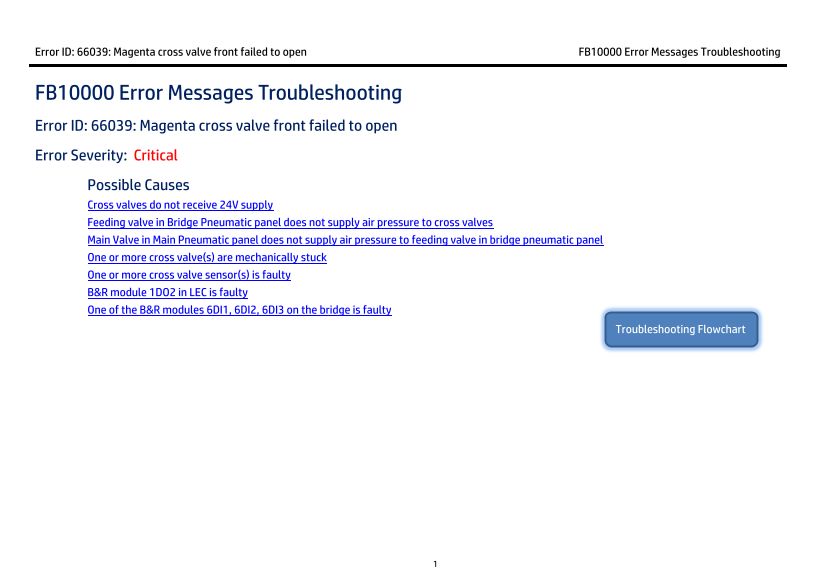

Error ID: 66039: Magenta cross valve front failed to open FB10000 Error Messages Troubleshooting
FB10000 Error Messages Troubleshooting Error ID: 66039: Magenta cross valve front failed to open Error Severity: Critical Possible Causes Cross valves do not receive 24V supply Feeding valve in Bridge Pneumatic panel does not supply air pressure to cross valves Main Valve in Main Pneumatic panel does not supply air pressure to feeding valve in bridge pneumatic panel One or more cross valve(s) are mechanically stuck One or more cross valve sensor(s) is faulty B&R module 1DO2 in LEC is faulty One of the B&R modules 6DI1, 6DI2, 6DI3 on the bridge is faulty
Troubleshooting Flowchart
Page Summary Contents For HP Scitex FB10000 Industrial Printer - Geffen TS Error 66039
Manual Details
| Brand | HP |
|---|---|
| Pages | 7 |
| File Size | 633.67 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the first step when diagnosing error ID 66039?
Check if the cross valves receive 24V supply from both the central path and by verifying that air pressure is supplied to the feeding valve.
How should I check for low pneumatic pressure (7 Bar)?
First, check the pressurized air feed from the Feeding valve in the Bridge pneumatic panel. If necessary, also inspect the Main Valve's air outlet and repair any tubing leaks.
What does it mean if the cross-valve flag moves but the sensor reading doesn't change?
This indicates that the optic sensor is faulty and should be replaced, assuming the valve still receives proper voltage.
