HP Photosmart C6300 Series Basic Guide
Summary
Discover comprehensive operating instructions for your HP Photosmart C6300 All-in-One printer. This guide is designed for new users who require step-by-step assistance setting up and managing their device. The manual covers detailed network setup, including wired and wireless connections, alongside guidance on basic functions such as scanning, printing photos, copying, and replacing ink. Furthermore, it provides essential troubleshooting tips and technical information to ensure smooth operation of your versatile home office tool.
Page 1 Text Content
HP Photosmart C6300 All-in-One series
Basics Guide
Page Summary Contents For HP Photosmart C6300 Series Basic Guide

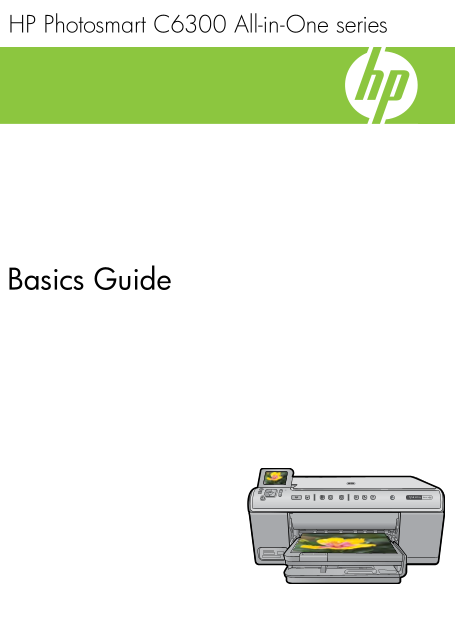

Page 1
HP Photosmart C6300 All-in-One series Basics Guide
Page 2
Hewlett-Packard Company notices The information contained in this document is subject to change without notice. All rights reserved. Reproduction, adaptation, or translation of this material is prohib...
Page 3
Contents Network setup Set up the HP All-in-One on a wired (Ethernet) network............................................................2 Set up the HP All-in-One on an integrated wireless (WLAN 802....
Page 4
Network setup This section describes how to connect the HP All-in-One to a network and how to view and manage network settings. If you want to: See this section: Connect to a wired (Ethernet) network....
Page 5
To set up the HP All-in-One on a wired See this section: network, you need to do the following: First, collect all of the required materials. “What you need for a wired network” on page 3 Next, connec...
Page 6
Chapter 1 2. Connect the Ethernet cable to the Ethernet port on the back of the product. 3. Connect the other end of the Ethernet cable to an available port on your Ethernet router or switch. 4. Once ...
Page 7
The advantages of a wireless infrastructure network as compared to an ad hoc network include: Advanced network security Enhanced reliability Network flexibility Better performance Shared Broadband Int...
Page 8
Chapter 1 CAUTION: To prevent other users from accessing your wireless network, HP strongly recommends using a password or passphrase (Wi-Fi Protected Access (WPA) or Wired Equivalent Privacy (WEP) se...
Page 9
c. When you are finished entering the new SSID, use the arrow buttons to highlight Done on the visual keyboard, and then press OK. d. Press the down arrow button until Infrastructure is highlighted, a...
Page 10
Chapter 1 There are two methods you may use to connect the HP All-in-One to your computer using an ad hoc wireless network connection. Once connected, you can install the HP All-in- One software. Turn...
Page 11
1. In the Control Panel, double-click Network Connections. 2. On the Network Connections window, right-click Wireless Network Connection. If you see Enable on the pop-up menu, select it. Otherwise, if...
Page 12
Chapter 1 Using the LAN card configuration program, create a network profile that has the following values: Network name (SSID): Mynetwork (example only) NOTE: You should create a network name that is...
Page 13
d. Press the down arrow button until Ad Hoc is highlighted, and then press OK. e. Press the down arrow button until Yes, my network uses WEP encryption is highlighted, and then press OK. The visual ke...
Page 14
Chapter 1 4. On the Connection Type screen, select Through the network, and then click Next. The Searching screen appears as the Setup program searches for the product on the network. 5. On the Printe...
Page 15
3. Press the down arrow button until Network is highlighted, and then press OK. 4. Press the down arrow button to highlight Wireless Setup Wizard, and then press OK. This runs the Wireless Setup Wizar...
Page 16
Chapter 1 NOTE: Some firewalls continue to cause interference even after you disable them. If you continue to have problems after configuring the firewall as described above, you might need to uninsta...
Page 17
Restore network defaults You can reset the network settings to what they were when you purchased the HP All-in- One. 1. Press Setup. 2. Press the down arrow button until Network is highlighted, and th...
Page 18
HP All-in-One overview Use the HP All-in-One to quickly and easily accomplish tasks such as making a copy, scanning documents, or printing photos from a memory card or USB storage device. You can acce...
Page 19
(continued) Label Description Rear door Ethernet port Rear USB port Power connection* * Use only with the power adapter supplied by HP. Control panel features The following diagram and related table p...
Page 20
Chapter 2 (continued) Label Icon Name and Description Attention light: Indicates a problem occurred. See the display for more information. Print Photos: Prints the photos selected on your memory card....
Page 21
To access the onscreen Help Windows: Click Start > All Programs > HP > Photosmart C6300 All-in-One series > Help. Macintosh: Open the HP Device Manager and click the ? icon. Next, click th...
Page 22
Chapter 2 CAUTION: Make sure that the product is idle and silent when you load paper into the main input tray. If the product is servicing the ink cartridges or otherwise engaged in a task, the paper ...
Page 23
3. Insert the stack of photo paper into the photo tray with the short edge forward and the print side down. Slide the stack of photo paper forward until it stops. If the photo paper you are using has ...
Page 24
Chapter 2 Remove printed papers from the output tray frequently. Prevent curled or wrinkled photo paper by storing all unused photo paper flat in a resealable bag. Ensure that paper loaded in the inpu...
Page 25
To print photos 1. Load photo paper in the appropriate input tray. 2. Insert a memory card into the appropriate slot on the product or connect a storage device to the front USB port. 3. Press OK to se...
Page 26
Chapter 2 To make a copy from the control panel 1. Make sure you have paper loaded in the input tray. 2. Load your original print side down on the right front corner of the glass. 3. Press Start Copy ...
Page 27
CAUTION: Do not lift the latch handle on the print carriage to remove the ink cartridges. 4. Remove the new ink cartridge from its packaging by pulling the orange pull-tab straight back to remove the ...
Page 28
Chapter 2 7. Repeat steps 3 through 6 for each ink cartridge you are replacing. 8. Close the ink cartridge door. P A ll-in-O ne overview HP All-in-One overview
Page 29
Troubleshooting and support This chapter contains troubleshooting information for the HP All-in-One. Specific information is provided for installation and configuration issues, and some operational to...
Page 30
Chapter 3 Setup troubleshooting Use this section to solve any problems you might encounter while setting up the HP All-in-One hardware. The product will not turn on Try the following solutions if ther...
Page 31
I connected the USB cable, but I am having problems using the product with my computer Solution: You must first install the software that came with the product before connecting the USB cable. During ...
Page 32
Chapter 3 Network troubleshooting If you are encountering issues using your HP All-in-One over a network, try the following steps in the order listed: 1. Turn off the router, product, and computer, an...
Page 33
To check a wireless connection 1. Make sure that the wireless radio on your computer is turned on. 2. If you are not using a unique network name (SSID), then it is possible that your wireless computer...
Page 34
Chapter 3 Network Status If the Network Status is Ready, the product is actively connected to a network. If the Network Status is Offline, the product is not connected to a network. Run the Wireless N...
Page 35
To check the printer status 1. Do one of the following, depending on your operating system: Windows XP: Click Start, point to Printers and Faxes, and then select View/Details. Windows Vista: Click Sta...
Page 36
Chapter 3 2. Gently pull the paper out of the rollers. CAUTION: If the paper tears when you are removing it from the rollers, check the rollers and wheels for torn pieces of paper that might be remain...
Page 37
Technical information The technical specifications and international regulatory information for the HP All-in-One are provided in this section. For additional regulatory and environmental information,...
Page 38
Chapter 4 Warranty Technical inform ation Technical information
Page 39
www.hp.com/support
