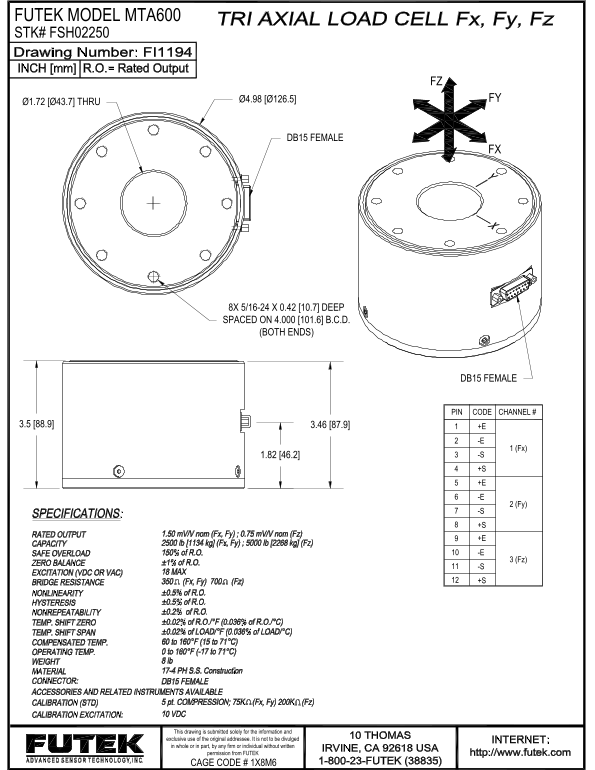

FUTEK MODEL MTA600 STK# FSH02250
Ø4.98 [Ø126.5] FY
Ø1.72 [Ø43.7] THRU
DB15 FEMALE
8X 5/16-24 X 0.42 [10.7] DEEP SPACED ON 4.000 [101.6] B.C.D. (BOTH ENDS)
DB15 FEMALE
CHANNEL #CODEPIN
1 (Fx)
1.82 [46.2] -S +S +E -E 2 (Fy) -S +S +E -E
3 (Fz)
This drawing is submitted solely for the information and exclusive use of the original addressee. It is not to be divulged in whole or in part, by any firm or individual without written
permission from FUTEK CAGE CODE # 1X8M6
