FUTEK LSM200(L2341) User's Manual and Specifications
Summary
This technical resource provides comprehensive specifications and operational guidelines for the FUTEK LSM200 series industrial component. It details complex electrical wiring configurations, precise mounting dimensions, safety features, and variable load limits. Designed for engineers and professional automation technicians, this documentation ensures proper integration, safe installation, and optimal performance of sophisticated industrial sensing systems.
Page 1 Text Content

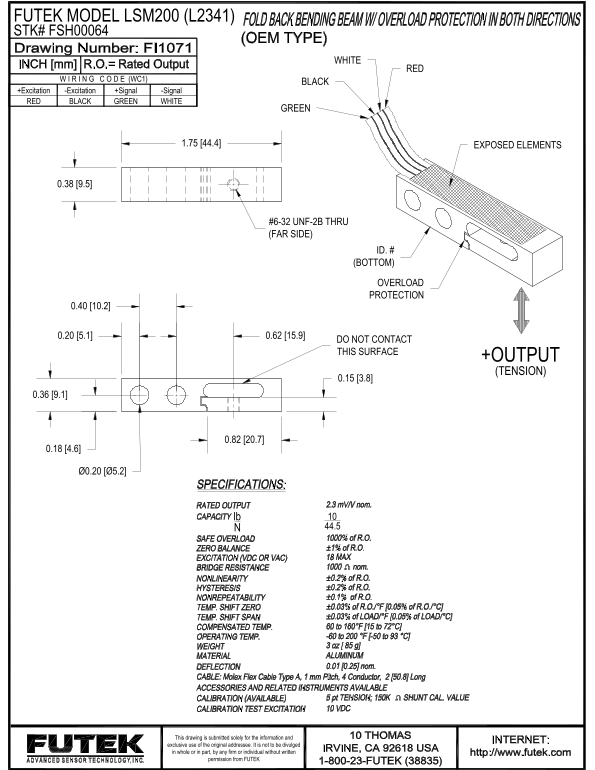

FUTEK MODEL LSM200 (L2341) STK# FSH00064
WHITE
W I R I N G C O D E (WC1)
BLACK
+Excitation -Excitation +Signal -Signal RED BLACK GREEN WHITE
GREEN
1.75 [44.4] EXPOSED ELEMENTS
#6-32 UNF-2B THRU (FAR SIDE)
ID. # (BOTTOM)
OVERLOAD PROTECTION
DO NOT CONTACT THIS SURFACE
+OUTPUT (TENSION)
This drawing is submitted solely for the information and exclusive use of the original addressee. It is not to be divulged in whole or in part, by any firm or individual without written
permission from FUTEK
