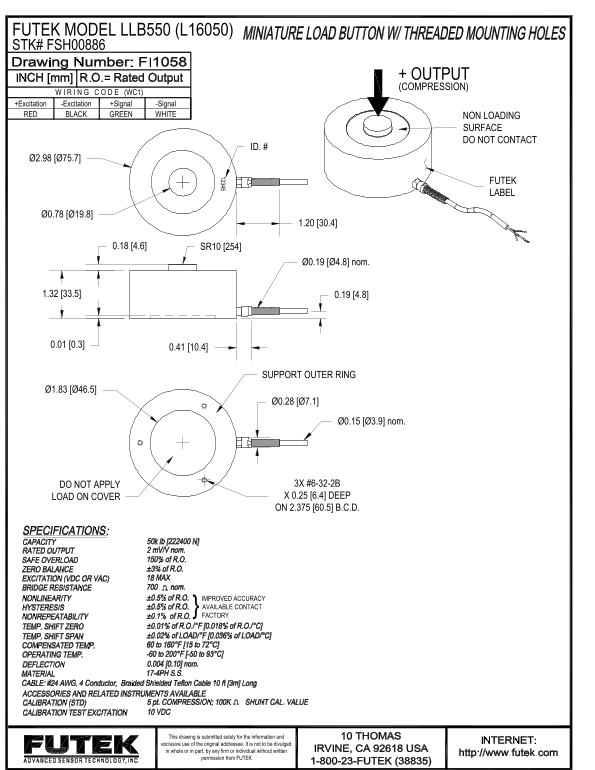

FUTEK MODEL LLB550 (L16050) STK# FSH00886
+ OUTPUT (COMPRESSION)
W I R I N G C O D E (WC1) +Excitation -Excitation +Signal -Signal RED BLACK GREEN WHITE NON LOADING
SURFACE DO NOT CONTACT
ID. #
FUTEK LABEL
0.18 [4.6] SR10 [254]
Ø0.19 [Ø4.8] nom.
SUPPORT OUTER RING
Ø0.15 [Ø3.9] nom.
DO NOT APPLY 3X #6-32-2B LOAD ON COVER X 0.25 [6.4] DEEP ON 2.375 [60.5] B.C.D.
IMPROVED ACCURACY AVAILABLE CONTACT FACTORY}
This drawing is submitted solely for the information and exclusive use of the original addressee. It is not to be divulged in whole or in part, by any firm or individual without written
permission from FUTEK
