FUTEK MODEL LSB300 Data Sheet
Summary
This comprehensive guide details the robust cable assemblies for industrial applications. It provides detailed wiring codes (CC4), specifications, and compatibility data for connecting various sensors and equipment. The manual covers conductor configurations, including signals, excitation, sense lines, and shielded grounds, alongside compatible LEMO receptacles and mating connectors. Ideal for automation engineers, industrial buyers, and technicians requiring reliable, coded cable solutions for machine connectivity and system integration.
Page 1 Text Content

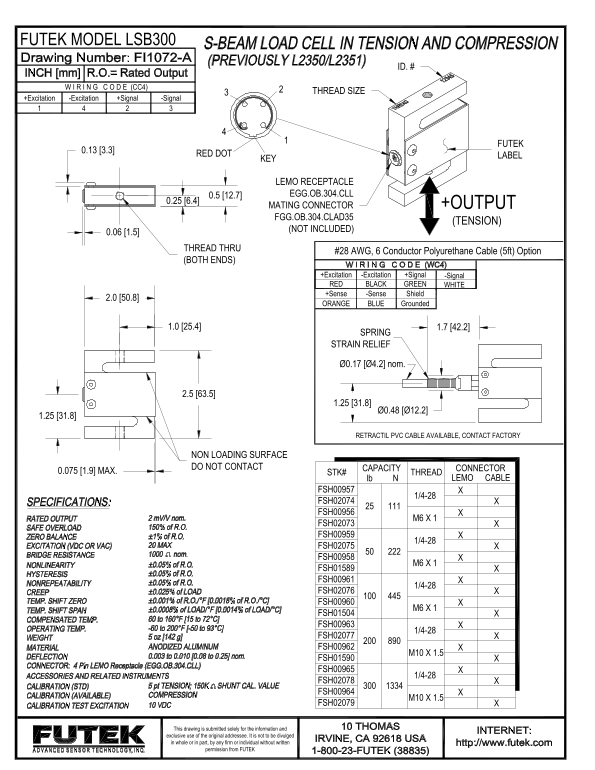

FUTEK MODEL LSB300
ID. #
W I R I N G C O D E (CC4)
THREAD SIZE
+Excitation -Excitation +Signal -Signal
FUTEK
RED DOT LABEL
LEMO RECEPTACLE 0.5 [12.7]0.25 [6.4] EGG.OB.304.CLL MATING CONNECTOR +OUTPUT FGG.OB.304.CLAD35
(TENSION)
(NOT INCLUDED)
THREAD THRU
#28 AWG, 6 Conductor Polyurethane Cable (5ft) Option
(BOTH ENDS)
+Excitation -Excitation +Signal -Signal
RED BLACK GREEN WHITE +Sense -Sense Shield
ORANGE BLUE Grounded
1.0 [25.4] 1.7 [42.2]SPRING
STRAIN RELIEF
Ø0.17 [Ø4.2] nom.
RETRACTIL PVC CABLE AVAILABLE, CONTACT FACTORY
NON LOADING SURFACE DO NOT CONTACT CAPACITY CONNECTOR
0.075 [1.9] MAX. STK# THREAD
lb LEMO CABLE
FSH00957
FSH02074 FSH00956
FSH02073 FSH00959
FSH02075 FSH00958
FSH01589 FSH00961
FSH02076 FSH00960
FSH01504 FSH00963 X1/4-28 FSH02077 FSH00962
FSH01590 FSH00965
FSH02078 FSH00964
FSH02079
This drawing is submitted solely for the information and exclusive use of the original addressee. It is not to be divulged in whole or in part, by any firm or individual without written
permission from FUTEK
Page Summary Contents For FUTEK MODEL LSB300 Data Sheet
Manual Details
| Brand | FUTEK |
|---|---|
| Pages | 1 |
| File Size | 127.74 KB |
| Published | May 21, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What cable type is specified for connection?
A 6 Conductor Polyurethane Cable (5ft) is available, with options for both ends.
Which colors correspond to the key connections?
Red and Black are labeled for Excitation; Green/White are for Signal; Orange/Blue are for Sense; and Shield is for Grounded.
What component provides strain relief?
The device includes a SPRING STRAIN RELIEF with a nominal size of 2.5 [63.5].
Is the tension cable included in the kit?
No, the MATING CONNECTOR +OUTPUT FGG.OB.304.CLAD35 (TENSION) is explicitly noted as (NOT INCLUDED).
How should I use or share this drawing?
This drawing is for the information and exclusive use of the original addressee only, and cannot be divulged without written permission.
