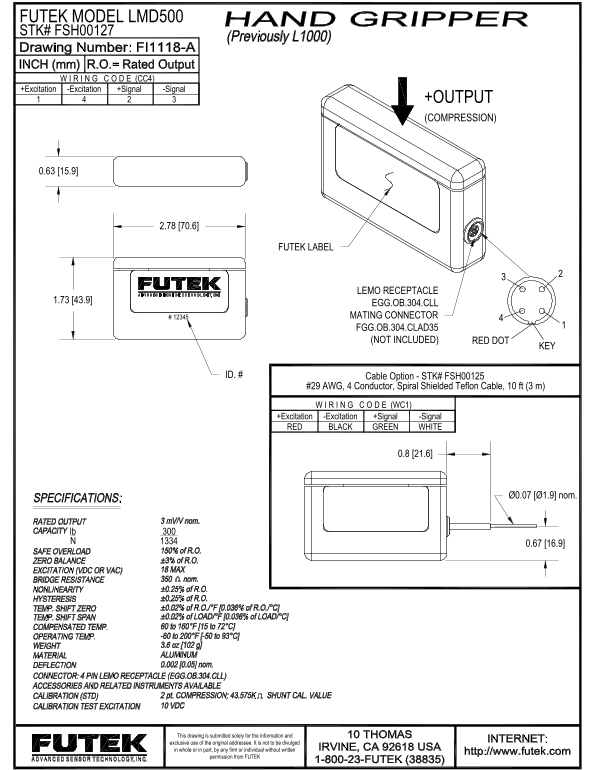

FUTEK MODEL LMD500 STK# FSH00127
W I R I N G C O D E (CC4)
+Excitation -Excitation +Signal -Signal
+OUTPUT (COMPRESSION)
FUTEK LABEL
LEMO RECEPTACLE
EGG.OB.304.CLL # 12345 MATING CONNECTOR FGG.OB.304.CLAD35 (NOT INCLUDED) RED DOT
ID. # Cable Option - STK# FSH00125
#29 AWG, 4 Conductor, Spiral Shielded Teflon Cable, 10 ft (3 m) W I R I N G C O D E (WC1) +Excitation -Excitation +Signal -Signal RED BLACK GREEN WHITE
Ø0.07 [Ø1.9] nom.
This drawing is submitted solely for the information and exclusive use of the original addressee. It is not to be divulged in whole or in part, by any firm or individual without written
permission from FUTEK
