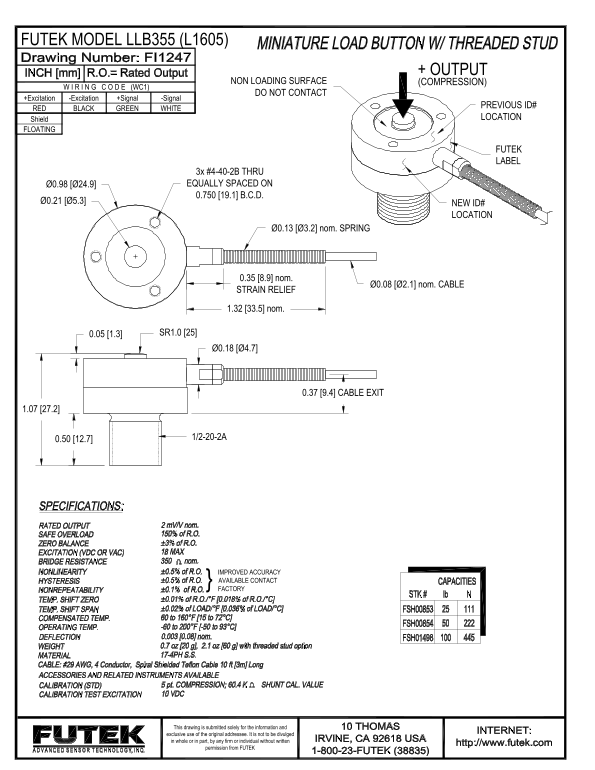

FUTEK MODEL LLB355 (L1605)
+ OUTPUT
NON LOADING SURFACE (COMPRESSION)
W I R I N G C O D E (WC1)
DO NOT CONTACT
+Excitation -Excitation +Signal -Signal
PREVIOUS ID#
RED BLACK GREEN WHITE
Shield LOCATION
FLOATING
FUTEK LABEL
3x #4-40-2B THRU Ø0.98 [Ø24.9] EQUALLY SPACED ON 0.750 [19.1] B.C.D.
Ø0.21 [Ø5.3] NEW ID#
LOCATION
Ø0.13 [Ø3.2] nom. SPRING
0.35 [8.9] nom.
Ø0.08 [Ø2.1] nom. CABLE
STRAIN RELIEF 1.32 [33.5] nom.
0.05 [1.3] SR1.0 [25]
0.37 [9.4] CABLE EXIT
IMPROVED ACCURACY AVAILABLE CONTACT FACTORY
This drawing is submitted solely for the information and exclusive use of the original addressee. It is not to be divulged in whole or in part, by any firm or individual without written
permission from FUTEK
