FUTEK MODEL LLB300 Data Sheet
Summary
This comprehensive technical manual details the specifications, connection guidelines, and structural support requirements for industrial electrical wiring assemblies. It provides detailed dimensional data, load capacities, and signal interface information necessary for reliable machine control installations. Designed for professional engineers, maintenance technicians, and facility designers, this guide ensures proper implementation of complex cable runs and electro-mechanical components in challenging operational environments.
Page 1 Text Content

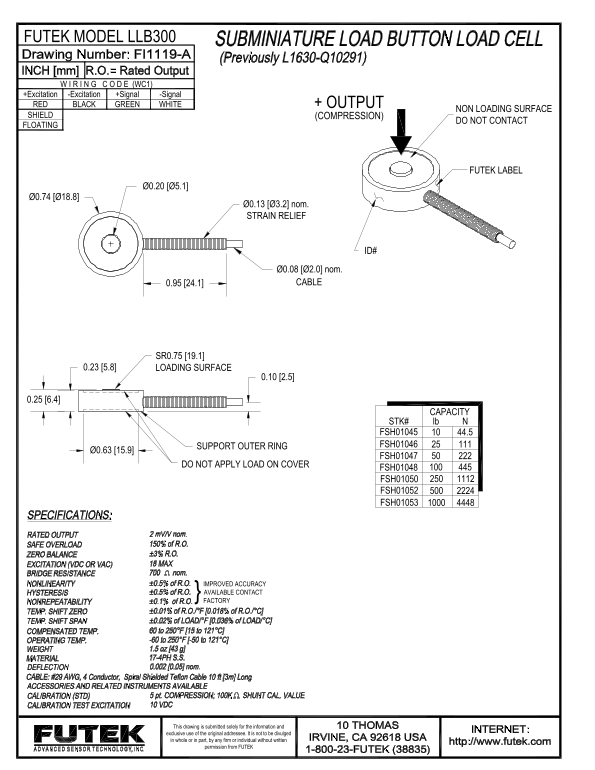

FUTEK MODEL LLB300
W I R I N G C O D E (WC1) +Excitation -Excitation +Signal -Signal RED BLACK GREEN WHITE + OUTPUT
NON LOADING SURFACE
SHIELD (COMPRESSION)
DO NOT CONTACT
FLOATING
FUTEK LABEL
Ø0.13 [Ø3.2] nom. STRAIN RELIEF
Ø0.08 [Ø2.0] nom. 0.95 [24.1] CABLE
SR0.75 [19.1]
0.23 [5.8] LOADING SURFACE
CAPACITY
STK# lb FSH01045 44.5 SUPPORT OUTER RING FSH01046
FSH01047
DO NOT APPLY LOAD ON COVER
FSH01048 FSH01050 FSH01052 FSH01053
IMPROVED ACCURACY AVAILABLE CONTACT FACTORY}
This drawing is submitted solely for the information and exclusive use of the original addressee. It is not to be divulged in whole or in part, by any firm or individual without written
permission from FUTEK
