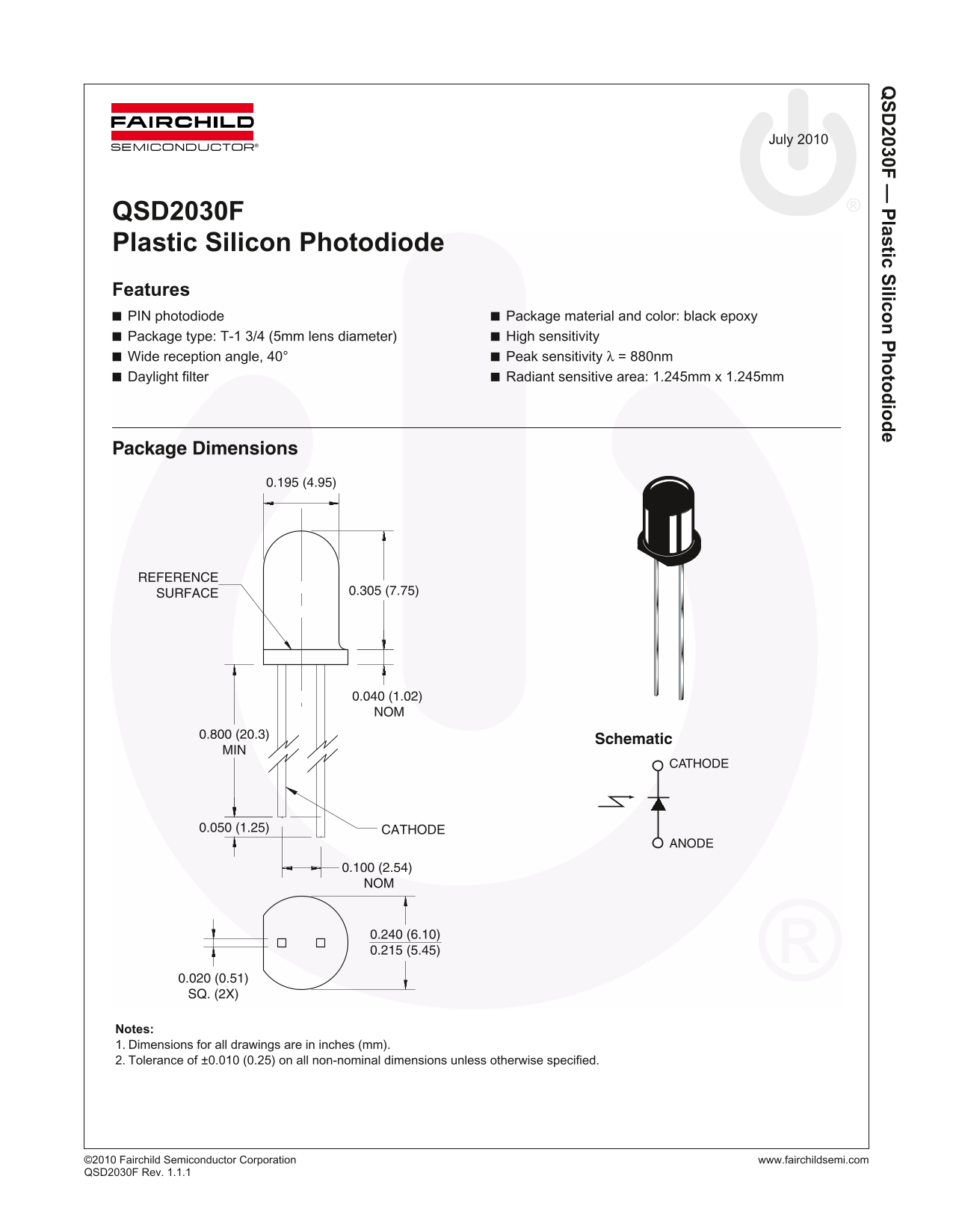

FAIRCHILD QSD2030F Silicon Photodiode Data Sheet
Summary
The QSD2030F is a high-sensitivity plastic silicon photodiode engineered for reliable light detection, featuring optimal response at 880nm and a wide reception angle. This comprehensive technical manual serves engineers and device designers, providing detailed information on electrical/optical characteristics, absolute maximum ratings, typical performance curves, and precise specifications required for successful integration into professional electronic systems.
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 4 |
| File Size | 257.67 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended working wavelength range and sensitivity?
The specified wavelength (λ) is 880nm, with a sensitivity range of 700-1100 nm.
How is power dissipation affected when operating above ambient temperature?
Power dissipation must be derated linearly at 1.33mW/°C for every degree Celsius above 25°C.
What cleaning agents are recommended for soldering this photodiode?
Methanol or isopropyl alcohols are recommended as cleaning agents.
What is the maximum storage and operating temperature range?
The device has an absolute maximum operating and storage temperature of -40 to +100 °C.
