7W 14 T in y L ic al In verter w ith ch itt Trig er In ts

March 1999 Revised February 2005

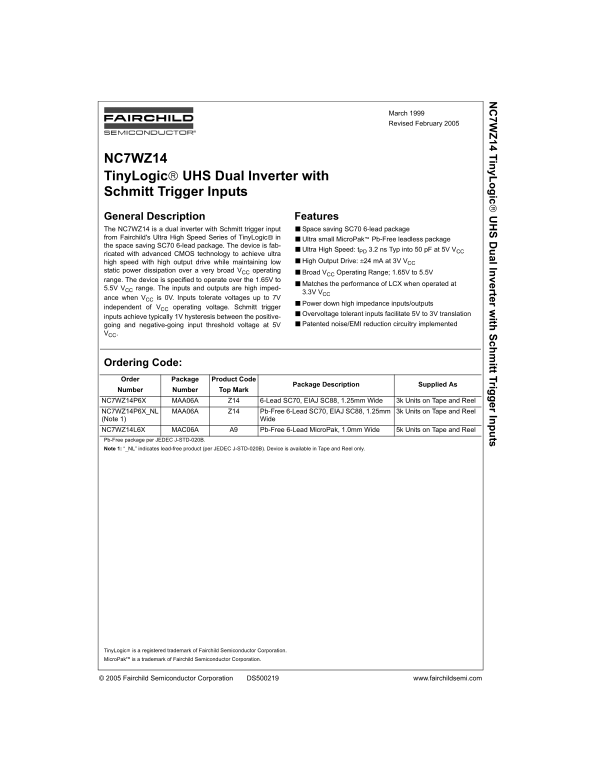

NC7WZ14 Tiny Logic
UHS Dual Inverter with Schmitt Trigger Inputs General Description Features The NC7WZ14 is a dual inverter with Schmitt trigger input ■Space saving SC70 6-lead package from Fairchild's Ultra High Speed Series of Tiny Logic£ in ■Ultra small Micro Pak¥ Pb-Free leadless package the space saving SC70 6-lead package. The device is fab-

■Ultra High Speed: t PD 3.2 ns Typ into 50 p F at 5V VCC

ricated with advanced CMOS technology to achieve ultra

high speed with high output drive while maintaining low ■High Output Drive: r24 m A at 3V VCC

static power dissipation over a very broad VCC operating

■Broad VCC Operating Range; 1.65V to 5.5V

range. The device is specified to operate over the 1.65V to

■Matches the performance of LCX when operated at

5.5V VCC range. The inputs and outputs are high imped-

3.3V VCC

ance when VCC is 0V. Inputs tolerate voltages up to 7V

■Power down high impedance inputs/outputs

independent of VCC operating voltage. Schmitt trigger

■Overvoltage tolerant inputs facilitate 5V to 3V translation

inputs achieve typically 1V hysteresis between the positive-

going and negative-going input threshold voltage at 5V ■Patented noise/EMI reduction circuitry implemented

Ordering Code: Order Package Product Code

Package Description Supplied As

Number Number Top Mark NC7WZ14P6X MAA06A Z14 6-Lead SC70, EIAJ SC88, 1.25mm Wide 3k Units on Tape and Reel NC7WZ14P6X_NL MAA06A Z14 Pb-Free 6-Lead SC70, EIAJ SC88, 1.25mm 3k Units on Tape and Reel (Note 1) Wide NC7WZ14L6X MAC06A A9 Pb-Free 6-Lead Micro Pak, 1.0mm Wide 5k Units on Tape and Reel Pb-Free package per JEDEC J-STD-020B. Note 1: “_NL” indicates lead-free product (per JEDEC J-STD-020B). Device is available in Tape and Reel only.

Tiny Logic£ is a registered trademark of Fairchild Semiconductor Corporation. Micro Pak¥ is a trademark of Fairchild Semiconductor Corporation.

© 2005 Fairchild Semiconductor Corporation DS500219 www.fairchildsemi.com
