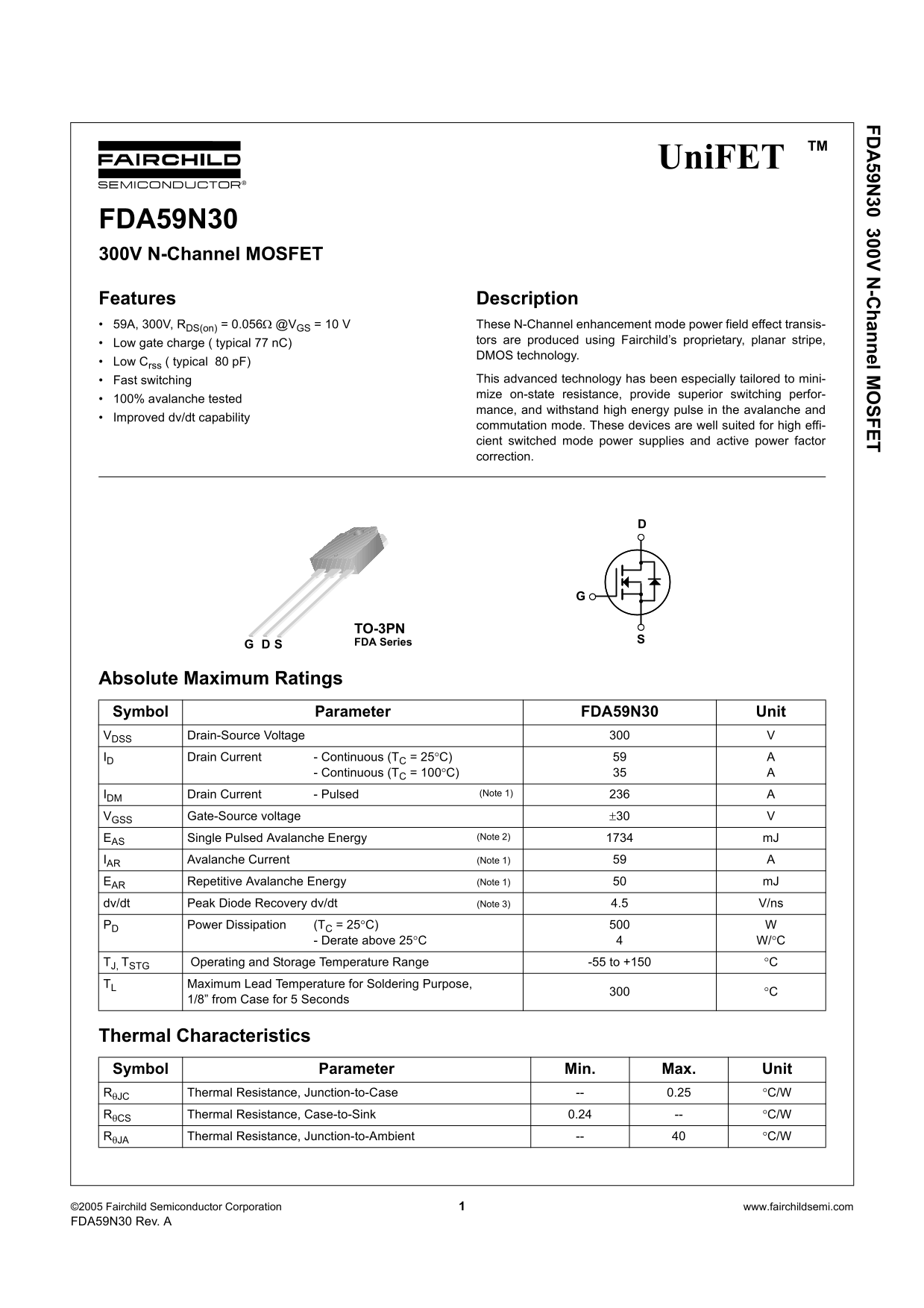

FD 59N 30 300V N -C hannel M SFET

Uni FET

FDA59N30 300V N-Channel MOSFET

Features Description 59A, 300V, RDS(on) = 0.056Ω @VGS = 10 V These N-Channel enhancement mode power field effect transis-

Low gate charge ( typical 77 n C) tors are produced using Fairchild’s proprietary, planar stripe, DMOS technology.

Low Crss ( typical 80 p F)

Fast switching This advanced technology has been especially tailored to mini- mize on-state resistance, provide superior switching perfor-

100% avalanche tested

mance, and withstand high energy pulse in the avalanche and

Improved dv/dt capability

commutation mode. These devices are well suited for high effi- cient switched mode power supplies and active power factor correction.

TO-3PN SD FDA Series

Absolute Maximum Ratings Symbol Parameter FDA59N30 Unit VDSS Drain-Source Voltage

ID Drain Current - Continuous (TC = 25°C)

- Continuous (TC = 100°C)

IDM Drain Current - Pulsed (Note 1)

VGSS Gate-Source voltage ±30

EAS Single Pulsed Avalanche Energy (Note 2) m J

IAR Avalanche Current (Note 1)

EAR Repetitive Avalanche Energy (Note 1) m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 4.5 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

TL Maximum Lead Temperature for Soldering Purpose,

1/8” from Case for 5 Seconds

Thermal Characteristics Symbol Parameter Min. Max. Unit RθJC Thermal Resistance, Junction-to-Case 0.25 °C/W

RθCS Thermal Resistance, Case-to-Sink 0.24 °C/W

RθJA Thermal Resistance, Junction-to-Ambient °C/W

©2005 Fairchild Semiconductor Corporation www.fairchildsemi.com FDA59N30 Rev. A

Page Summary Contents For Fairchild FDA59N30 Product Specifications Manual

Page 1 FD 59N 30 300V N -C hannel M SFET Uni FET FDA59N30 300V N-Channel MOSFET Features Description 59A, 300V, RDS(on) = 0.056Ω @VGS = 10 V These N-Channel enhancement mode power field effect transis- Low g...
Page 2 FD 59N 30 300V N -C hannel M SFET Package Marking and Ordering Information Device Marking Device Package Reel Size Tape Width Quantity FDA59N30 FDA59N30 TO-3PN Electrical Characteristics TC = 25°C unl...
Page 3 FD 59N 30 300V N -C hannel M SFET , D ra in ur re nt [A ap ac ita nc es [p F] S( ) [ ra in -S ou rc n- es is ta nc Typical Performance Characteristics Figure 1. On-Region Characteristics Figure 2. Tra...
Page 4 FD 59N 30 300V N -C hannel M SFET , D ra in ur re nt [A BV SS , ( or al iz ed ra in -S ou rc Br ea kd ow Vo lta ge Typical Performance Characteristics (Continued) Figure 7. Breakdown Voltage Variation...
Page 5 FD 59N 30 300V N -C hannel M SFET Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) ...
Page 6 FD 59N 30 300V N -C hannel M SFET Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = G...
Page 7 FD 59N 30 300V N -C hannel M SFET Mechanical Dimensions TO-3PN Dimensions in Millimeters www.fairchildsemi.com FDA59N30 Rev. A
Page 8 FD 59N 30 300V N -C hannel M SFET TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list ...
