Fairchild FQPF5N90 Technical Specifications Manual

Summary

The FQPF5N90 is a high-performance N-Channel MOSFET designed for demanding applications requiring superior switching efficiency and durability. Rated for 900V and low on-state resistance, this transistor excels in handling fast transients and high energy pulses. This comprehensive manual provides detailed electrical characteristics, thermal management guidelines, absolute maximum ratings, and performance graphs—making it the essential reference tool for engineers designing highly efficient switch mode power supplies (SMPS).

📄 Preview PAGE OF 8

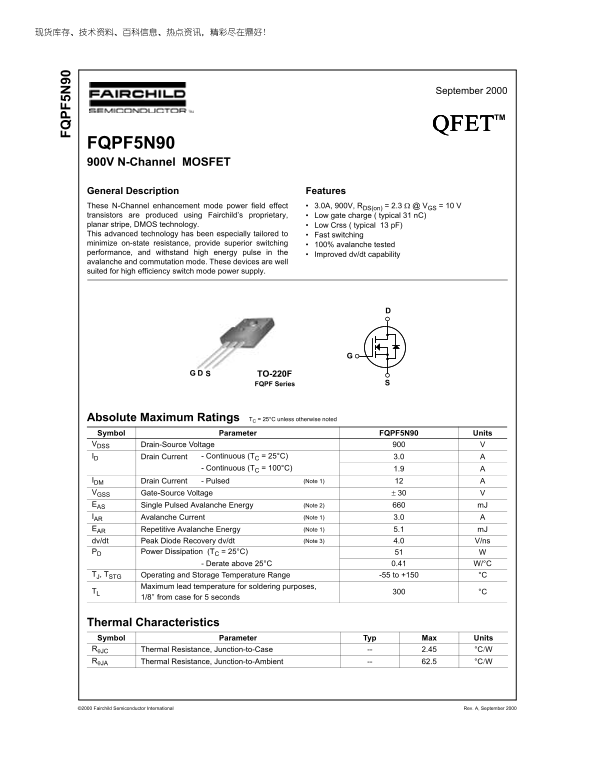

Page 1 Text Content

September 2000

QFETTM

FQPF5N90 900V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 3.0A, 900V, RDS(on) = 2.3 Ω @ VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 31 n C) planar stripe, DMOS technology. Low Crss ( typical 13 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the

Improved dv/dt capability

avalanche and commutation mode. These devices are well suited for high efficiency switch mode power supply.

SD TO-220F

FQPF Series

Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQPF5N90 Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 3.0

- Continuous (TC = 100°C) 1.9

IDM Drain Current - Pulsed (Note 1) VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 3.0 EAR Repetitive Avalanche Energy (Note 1) 5.1 m J

dv/dt Peak Diode Recovery dv/dt (Note 3) 4.0 V/ns

PD Power Dissipation (TC = 25°C)

- Derate above 25°C 0.41 W/°C

TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C

Maximum lead temperature for soldering purposes,

TL °C

1/8" from case for 5 seconds

Thermal Characteristics Symbol Parameter Typ Max Units RθJC Thermal Resistance, Junction-to-Case 2.45 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

©2000 Fairchild Semiconductor International Rev. A, September 2000

Page Summary Contents For Fairchild FQPF5N90 Technical Specifications Manual

Page 1 September 2000 QFETTM FQPF5N90 900V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 3.0A, 900V, RDS(on) = 2.3 Ω @ VGS = 10 V transistors are produced ...
Page 2 Electrical Characteristics TC = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆BVDSS Br...
Page 3 Typical Characteristics ap ac ita nc [p F] , D ra in ur re nt [A ra in -S ou rc n- es is ta nc Top : 15.0 V 10.0 V 8.0 V 7.0 V 6.5 V 6.0 V Bottom : 5.5 V ※ Notes : ※ Notes : 1. 250μs Pulse Test 1. V =...
Page 4 Typical Characteristics (Continued) BV SS , ( or al iz ed , D ra in ur re nt [A ra in -S ou rc Br ea kd ow Vo lta ge 0.9 ※ Notes : 1. V GS = 0 V ※ Notes : 1. V GS = 10 V 2. I = 2.7 A , Junction Temper...
Page 5 Gate Charge Test Circuit & Waveform Same Type as DUT Qgs Qgd Charge Resistive Switching Test Circuit & Waveforms VDS VDS 90% VGS RG 10% VGS td(on) tr td(off) on off Unclamped Inductive Switchi...
Page 6 Peak Diode Recovery dv/dt Test Circuit & Waveforms Driver RG Same Type as DUT VDD dv/dt controlled by RG ISD controlled by pulse period Gate Pulse Width VGS D = Gate Pulse Period 10V ( Driver ) IF...
Page 7 Package Dimensions TO-220F MAX1.47 2.54TYP 2.54TYP [2.54 ±0.20] [2.54 ±0.20] Rev. A, September 2000©2000 Fairchild Semiconductor International
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FAST...
