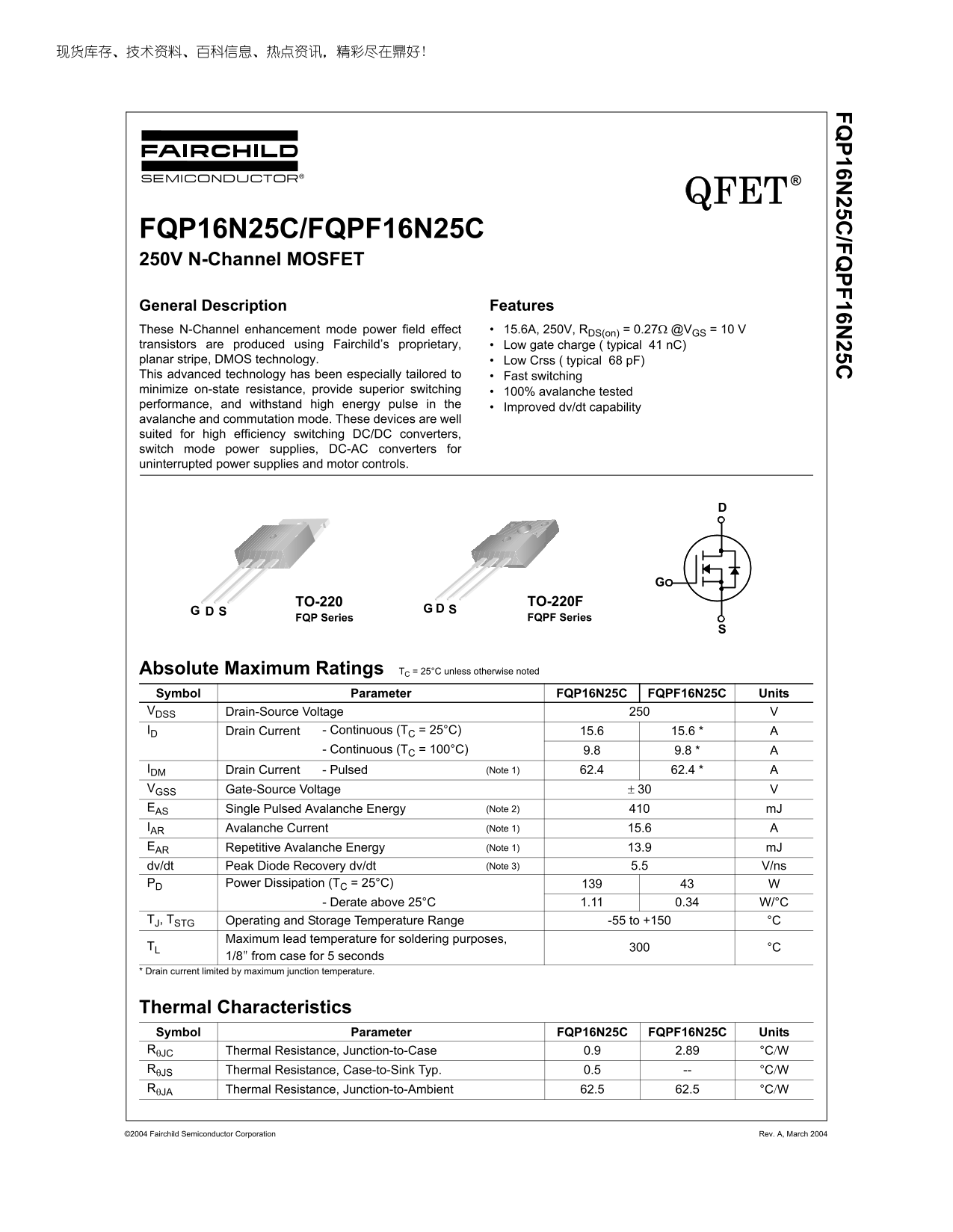

FQ P16N 25C /FQ PF16N 25C
QFET®
FQP16N25C/FQPF16N25C 250V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 15.6A, 250V, RDS(on) = 0.27Ω @VGS = 10 V transistors are produced using Fairchild’s proprietary, Low gate charge ( typical 41 n C) planar stripe, DMOS technology. Low Crss ( typical 68 p F) This advanced technology has been especially tailored to Fast switching minimize on-state resistance, provide superior switching 100% avalanche tested performance, and withstand high energy pulse in the Improved dv/dt capability avalanche and commutation mode. These devices are well suited for high efficiency switching DC/DC converters, switch mode power supplies, DC-AC converters for uninterrupted power supplies and motor controls.
TO-220 TO-220F
SD SD
FQP Series G FQPF Series
Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol Parameter FQP16N25C FQPF16N25C Units VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 15.6 15.6 *
- Continuous (TC = 100°C) 9.8 9.8 *
IDM Drain Current - Pulsed (Note 1) 62.4 62.4 * VGSS Gate-Source Voltage ± 30 EAS Single Pulsed Avalanche Energy (Note 2) m J IAR Avalanche Current (Note 1) 15.6 EAR Repetitive Avalanche Energy (Note 1) 13.9 m J
dv/dt Peak Diode Recovery dv/dt (Note 3) 5.5 V/ns
PD Power Dissipation (TC = 25°C)
- Derate above 25°C 1.11 0.34 W/°C
TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C
Maximum lead temperature for soldering purposes,
TL °C
1/8" from case for 5 seconds
* Drain current limited by maximum junction temperature.
Thermal Characteristics Symbol Parameter FQP16N25C FQPF16N25C Units RθJC Thermal Resistance, Junction-to-Case 0.9 2.89 °C/W RθJS Thermal Resistance, Case-to-Sink Typ. 0.5 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 62.5 °C/W
