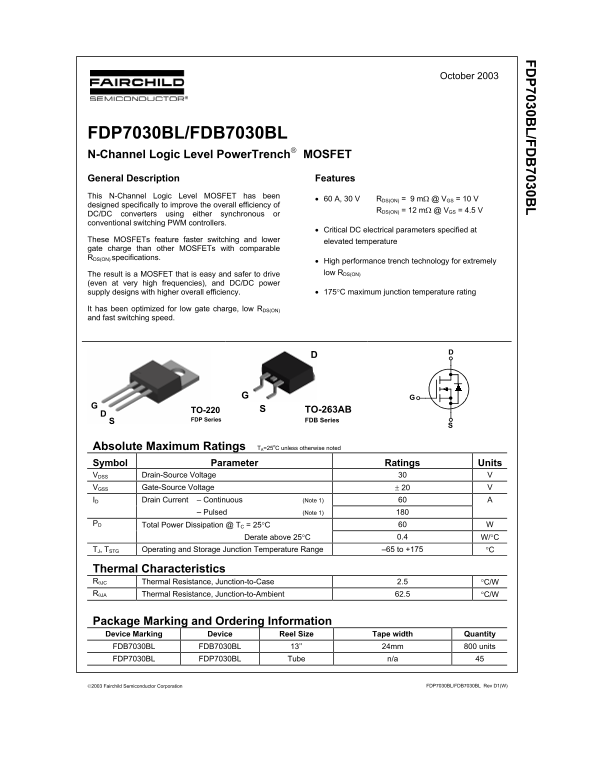

Page 1 Text Content

October 2003

FDP7030BL/FDB7030BL N-Channel Logic Level Power Trench MOSFET

General Description Features

This N-Channel Logic Level MOSFET has been

• 60 A, 30 V RDS(ON) = 9 mΩ @ VGS = 10 V

designed specifically to improve the overall efficiency of

RDS(ON) = 12 mΩ @ VGS = 4.5 V

DC/DC converters using either synchronous or conventional switching PWM controllers.

• Critical DC electrical parameters specified at

These MOSFETs feature faster switching and lower elevated temperature gate charge than other MOSFETs with comparable RDS(ON) specifications.

• High performance trench technology for extremely The result is a MOSFET that is easy and safer to drive low RDS(ON)

(even at very high frequencies), and DC/DC power

supply designs with higher overall efficiency. • 175°C maximum junction temperature rating

It has been optimized for low gate charge, low RDS(ON) and fast switching speed.

TO-220 TO-263AB

FDP Series FDB Series

Absolute Maximum Ratings TA=25o C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain-Source Voltage VGSS Gate-Source Voltage ± 20 ID Drain Current – Continuous (Note 1)

– Pulsed (Note 1)

PD Total Power Dissipation @ TC = 25°C

Derate above 25°C 0.4 W/°C

TJ, TSTG Operating and Storage Junction Temperature Range –65 to +175 °C

Thermal Characteristics RθJC Thermal Resistance, Junction-to-Case 2.5 °C/W RθJA Thermal Resistance, Junction-to-Ambient 62.5 °C/W

Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity FDB7030BL FDB7030BL 13’’ 24mm 800 units FDP7030BL FDP7030BL Tube n/a

2003 Fairchild Semiconductor Corporation FDP7030BL/FDB7030BL Rev D1(W)

Page Summary Contents For Fairchild FDP7030BL FDB7030BL User Manual

Page 1 October 2003 FDP7030BL/FDB7030BL N-Channel Logic Level Power Trench MOSFET General Description Features This N-Channel Logic Level MOSFET has been • 60 A, 30 V RDS(ON) = 9 mΩ @ VGS = 10 V designed sp...
Page 2 Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Test Conditions Min Typ Max Units Drain-Source Avalanche Ratings (Note 1) WDSS Single Pulse Drain-Source VDD = 15 V, ID = 6...
Page 3 IZ , D IN Typical Characteristics (O , D IN (A IN -S -R IS VGS=10V VGS = 3.5V VDS, DRAIN-SOURCE VOLTAGE (V) ID, DRAIN CURRENT (A) Figure 1. On-Region Characteristics. Figure 2. On-Resistance Variation...
Page 4 Typical Characteristics , D IN (A , G -S r( t) , N IZ IV IE IS f = 1MHz ID = 30A VDS = 10V 20V VGS = 0 V Qg, GATE CHARGE (n C) VDS, DRAIN TO SOURCE VOLTAGE (V) Figure 7. Gate Charge Characteristics. F...
Page 5 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ FACT...
