The FCP4N60 is a 600V N-Channel SuperFET MOSFET designed for high-efficiency power conversion in switching mode operations. Featuring proprietary technology, this component ensures outstanding low on-resistance and superior switching performance, ideal for system miniaturization. This comprehensive manual provides all necessary technical details, including absolute maximum ratings, thermal characteristics, detailed electrical parameters (transconductance, capacitance), and dynamic switching timings needed to ensure reliable integration into various AC/DC power systems.

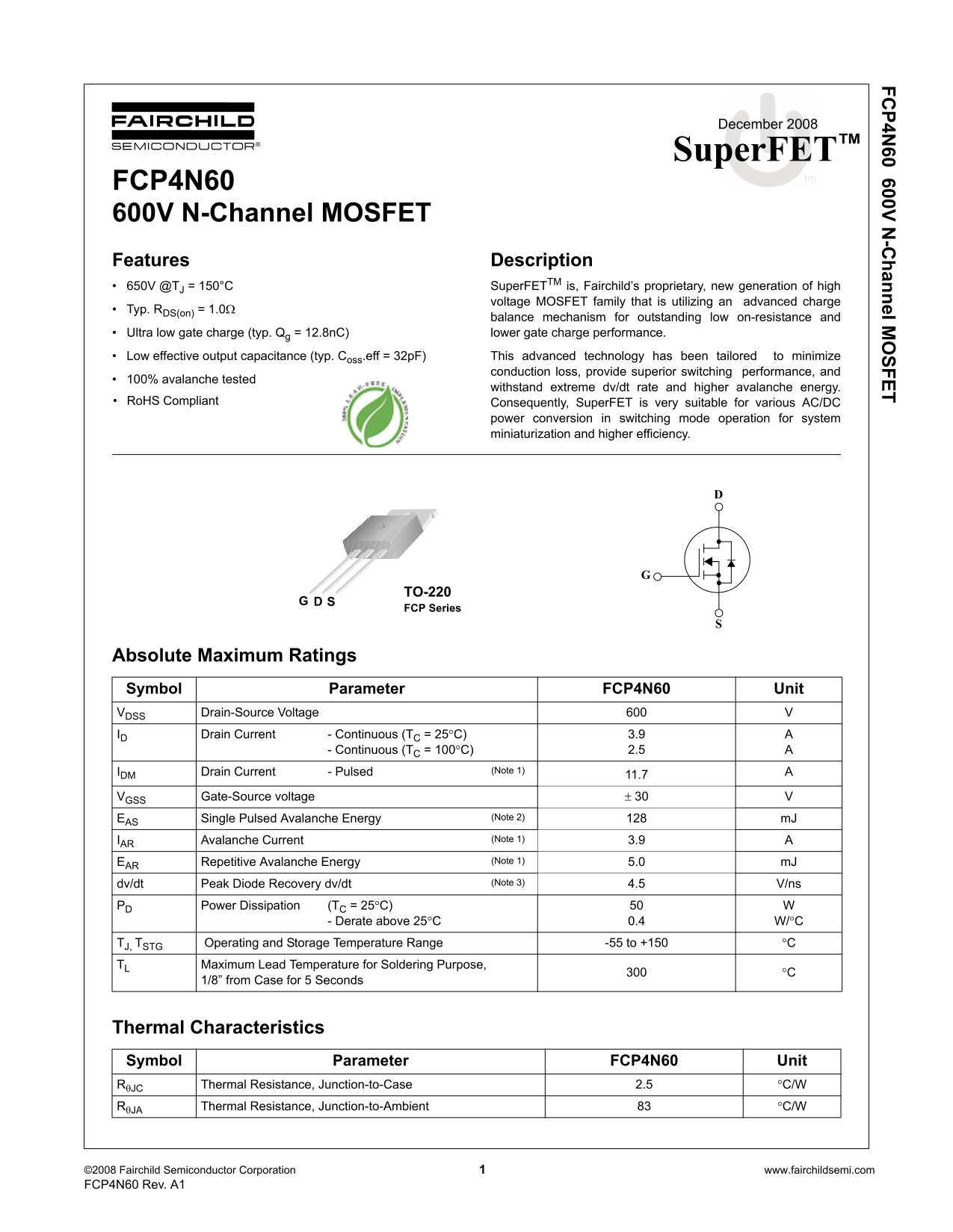

Page 1 Text Content
FC P4N 60 600V N -C hannel M SFET
December 2008
Super FET
FCP4N60 600V N-Channel MOSFET Features Description 650V @TJ = 150°C Super FETTM is, Fairchild’s proprietary, new generation of high
voltage MOSFET family that is utilizing an advanced charge
Typ. RDS(on) = 1.0Ω
balance mechanism for outstanding low on-resistance and
Ultra low gate charge (typ. Qg = 12.8n C) lower gate charge performance.
Low effective output capacitance (typ. Coss.eff = 32p F) This advanced technology has been tailored to minimize
conduction loss, provide superior switching performance, and
100% avalanche tested
withstand extreme dv/dt rate and higher avalanche energy.
Ro HS Compliant Consequently, Super FET is very suitable for various AC/DC
power conversion in switching mode operation for system miniaturization and higher efficiency.
TO-220
FCP Series G
Absolute Maximum Ratings Symbol Parameter FCP4N60 Unit VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) 3.9
- Continuous (TC = 100°C) 2.5
IDM Drain Current - Pulsed (Note 1)
VGSS Gate-Source voltage ± 30
EAS Single Pulsed Avalanche Energy (Note 2) m J
IAR Avalanche Current (Note 1) 3.9
EAR Repetitive Avalanche Energy (Note 1) 5.0 m J
dv/dt Peak Diode Recovery dv/dt (Note 3) 4.5 V/ns
PD Power Dissipation (TC = 25°C)
- Derate above 25°C 0.4 W/°C
TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C TL Maximum Lead Temperature for Soldering Purpose,
1/8” from Case for 5 Seconds
Thermal Characteristics Symbol Parameter FCP4N60 Unit RθJC Thermal Resistance, Junction-to-Case 2.5 °C/W
RθJA Thermal Resistance, Junction-to-Ambient °C/W
©20 08 Fairchild Semiconductor Corporation www.fairchildsemi.com FC P4N60 Rev. A1
