Fairchild FDC6321C User Manual

Summary

The DC6321C is a dual N & P channel logic-level enhancement mode MOSFET designed for efficient low-voltage load switching applications, particularly in simple 3V circuits. This advanced FET simplifies circuit design by replacing multiple digital transistors and eliminating the need for external bias resistors. The accompanying datasheet provides comprehensive electrical specifications, including absolute maximum ratings, dynamic characteristics, thermal profiles, and detailed usage guidelines necessary for precise integration into new electronic systems.

📄 Preview PAGE OF 8

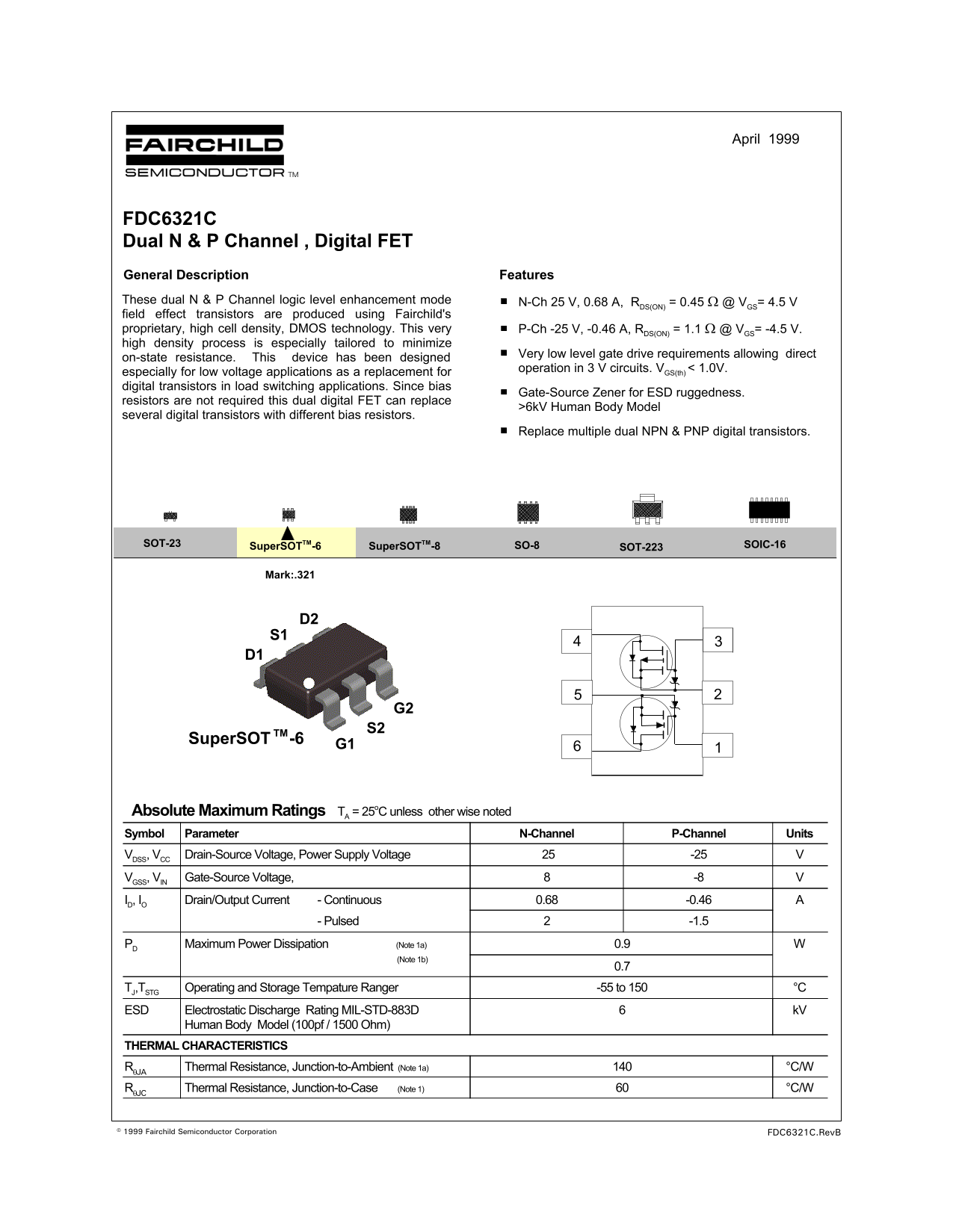

Page 1 Text Content

April 1999

FDC6321C Dual N & P Channel , Digital FET General Description Features These dual N & P Channel logic level enhancement mode N-Ch 25 V, 0.68 A, RDS(ON) = 0.45 Ω @ VGS= 4.5 V field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very P-Ch -25 V, -0.46 A, RDS(ON) = 1.1 Ω @ VGS= -4.5 V. high density process is especially tailored to minimize

Very low level gate drive requirements allowing direct

on-state resistance. This device has been designed

operation in 3 V circuits. VGS(th) < 1.0V.

especially for low voltage applications as a replacement for digital transistors in load switching applications. Since bias

Gate-Source Zener for ESD ruggedness.

resistors are not required this dual digital FET can replace

>6k V Human Body Model

several digital transistors with different bias resistors.

Replace multiple dual NPN & PNP digital transistors.

SOT-23 Super SOTTM-8 SOIC-16SO-8

SOT-223Super SOTTM-6

Mark:.321

Super SOT -6TM

Absolute Maximum Ratings TA = 25o C unless other wise noted Symbol Parameter N-Channel P-Channel Units VDSS, VCC Drain-Source Voltage, Power Supply Voltage -25 VGSS, VIN Gate-Source Voltage, 8 -8 ID, IO Drain/Output Current - Continuous 0.68 -0.46

- Pulsed -1.5

PD Maximum Power Dissipation (Note 1a) 0.9

(Note 1b)

TJ,TSTG Operating and Storage Tempature Ranger -55 to 150 °C ESD Electrostatic Discharge Rating MIL-STD-883D k V

Human Body Model (100pf / 1500 Ohm)

THERMAL CHARACTERISTICS RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) °C/W

© 1999 Fairchild Semiconductor Corporation FDC6321C.Rev B

Page Summary Contents For Fairchild FDC6321C User Manual

Page 1 April 1999 FDC6321C Dual N &amp; P Channel , Digital FET General Description Features These dual N &amp; P Channel logic level enhancement mode N-Ch 25 V, 0.68 A, RDS(ON) = 0.45 Ω @ VGS= 4.5 V field e...
Page 2 Electrical Characteristics (TA = 25 OC unless otherwise noted ) Symbol Parameter Conditions Type Min Typ Max Units OFF CHARACTERISTICS BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA N-Ch ...
Page 3 Electrical Characteristics (TA = 25 OC unless otherwise noted ) SWITCHING CHARACTERISTICS (Note 2) Symbol Parameter Conditions Type Min Typ Max Units t D(on) Turn - On Delay Time N-Channel N-Ch n S VD...
Page 4 (O , N LI Typical Electrical Characteristics: N-Channel IN IN -S IN -S -R IS V = 4.5VGS 2.5 3.5 1.2 3.0 V = 2.0VGS V , DRAIN-SOURCE VOLTAGE (V) I , DRAIN CURRENT (A) DS Figure 1. On-Region Characteris...
Page 5 Typical Electrical Characteristics: N-Channel (continued) IN , G -S LT V = 5VDS I = 0.5AD C iss C oss f = 1 MHz V = 0VGS C rss 0.4 0.8 1.2 1.6 V , DRAIN TO SOURCE VOLTAGE (V) Q , GATE CHARGE (n C) Fig...
Page 6 (O , N LI -I IN -S Typical Electrical Characteristics: P-Channel IN -S -R IS 1.5 2.4 V = -4.5VGS V = -2.0 VGS -V , DRAIN-SOURCE VOLTAGE (V) -I , DRAIN CURRENT (A) Figure 11. On-Region Characteristics....
Page 7 -I , D IN Typical Electrical Characteristics: P-Channel (continued) -V , G -S LT r( t) , N LI IV IE IS I = -0.5AD V = -5VDS C iss C oss C rss f = 1 MHz V = 0 VGS -V , DRAIN TO SOURCE VOLTAGE (V) Q , G...
Page 8 TRADEMARKS The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks. ACEx™ ISOP...
