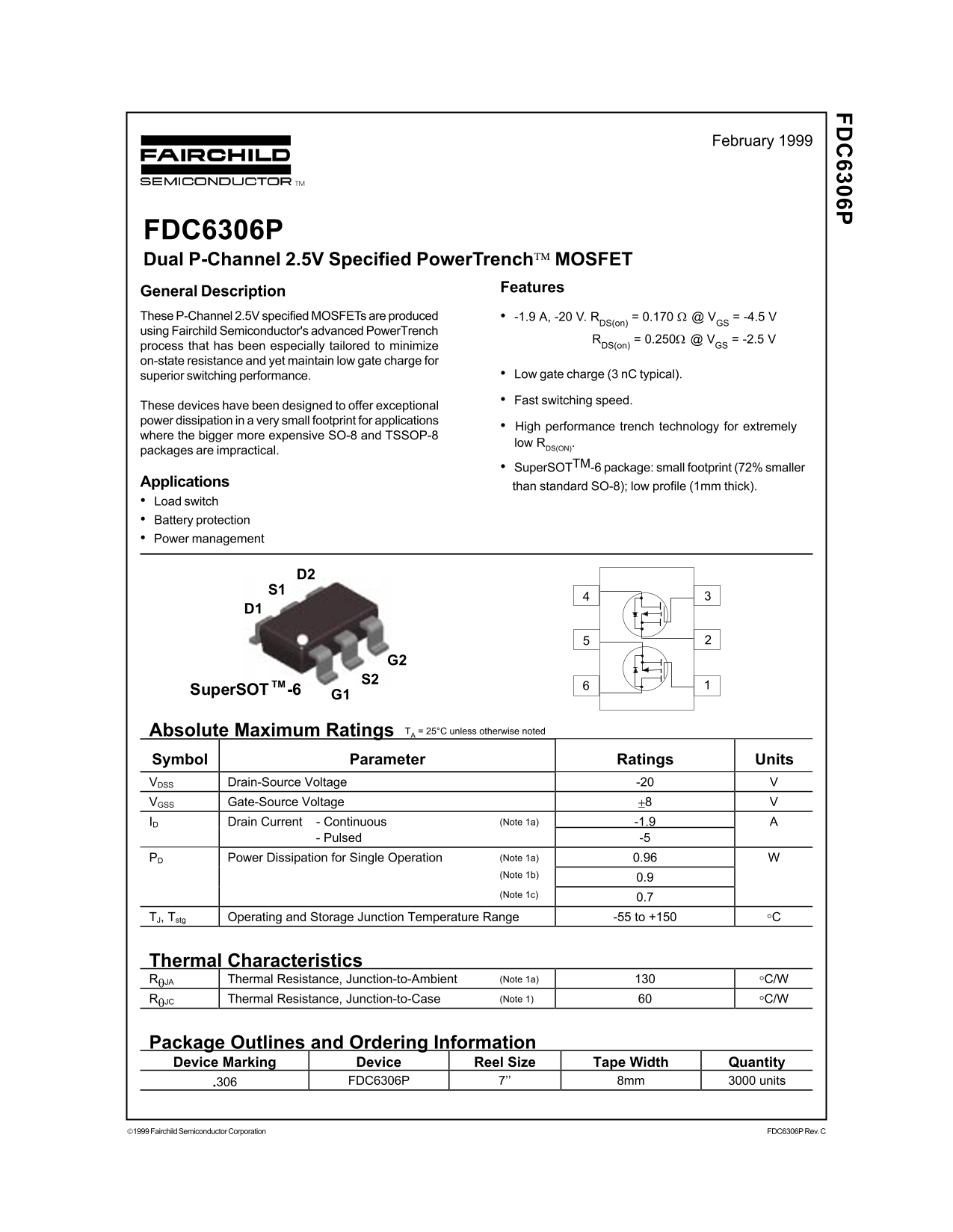

Page 1 Text Content

February 1999

FDC6306P Dual P-Channel 2.5V Specified Power Trench MOSFET

Features

General Description These P-Channel 2.5V specified MOSFETs are produced -1.9 A, -20 V. R = 0.170 Ω @ V = -4.5 V

DS(on) GS

using Fairchild Semiconductor's advanced Power Trench

= 0.250Ω @ V = -2.5 V process that has been especially tailored to minimize DS(on) GS

on-state resistance and yet maintain low gate charge for

superior switching performance. Low gate charge (3 n C typical).

Fast switching speed.

These devices have been designed to offer exceptional power dissipation in a very small footprint for applications

• High performance trench technology for extremely

where the bigger more expensive SO-8 and TSSOP-8

low RDS(ON).

packages are impractical.

Super SOTTM-6 package: small footprint (72% smaller

Applications

than standard SO-8); low profile (1mm thick).

Load switch Battery protection • Power management

Super SOT -6TM

Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter Ratings Units VDSS Drain-Source Voltage -20 VGSS Gate-Source Voltage ±8 ID Drain Current - Continuous (Note 1a) -1.9

- Pulsed -5

PD Power Dissipation for Single Operation (Note 1a) 0.96 (Note 1b)

(Note 1c)

TJ, Tstg Operating and Storage Junction Temperature Range -55 to +150 °C

Thermal Characteristics

RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) °C/W RθJC Thermal Resistance, Junction-to-Case (Note 1) °C/W

Package Outlines and Ordering Information Device Marking Device Reel Size Tape Width Quantity

.306 FDC6306P 7’’ 8mm 3000 units

1999 Fairchild Semiconductor Corporation FDC6306P Rev. C
