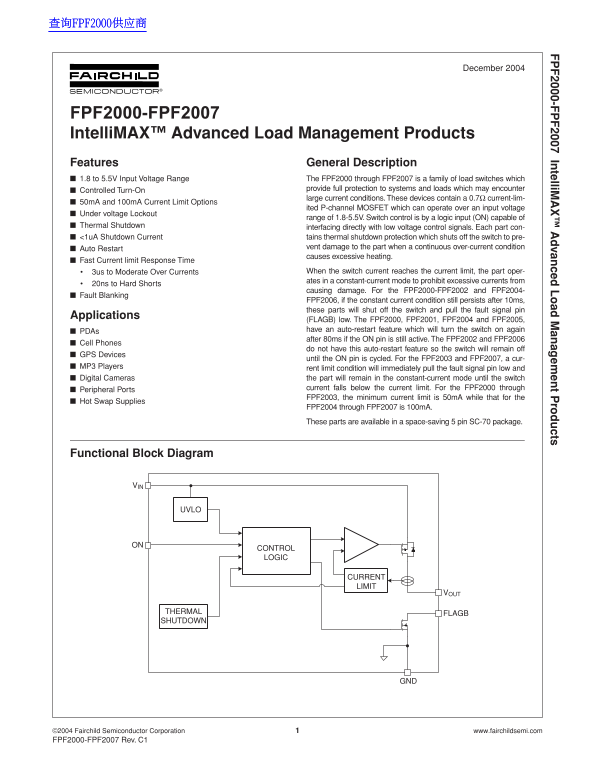

Fairchild FPF2000-FPF2007 IntelliMAX™ Advanced Load Management Products Data Manual
Summary
This is the technical datasheet for the Fairchild Semiconductor FPF2000-FPF2007 IntelliMAX Advanced Load Management Products family. These load switches provide full protection with 0.7Ω current-limited P-channel MOSFET operating from 1.8V to 5.5V input. Features include controlled turn-on, 50mA and 100mA current limit options, under-voltage lockout, thermal shutdown, auto-restart, and fast current limit response. Applications include PDAs, cell phones, GPS devices, MP3 players, and digital cameras. Target users are power management designers and portable electronics engineers requiring compact, protected load switch solutions for battery-powered devices.
Page 1 Text Content
查询FPF2000供应商 2000-F 2007 In telli M dvan ced ad an ag em en t P ro cts
December 2004
FPF2000-FPF2007 Intelli MAX™ Advanced Load Management Products Features General Description 1.8 to 5.5V Input Voltage Range The FPF2000 through FPF2007 is a family of load switches which
provide full protection to systems and loads which may encounter
Controlled Turn-On
large current conditions. These devices contain a 0.7 current-lim-
50m A and 100m A Current Limit Options
ited P-channel MOSFET which can operate over an input voltage
Under voltage Lockout
range of 1.8-5.5V. Switch control is by a logic input (ON) capable of
Thermal Shutdown
interfacing directly with low voltage control signals. Each part con-
<1u A Shutdown Current tains thermal shutdown protection which shuts off the switch to pre-
vent damage to the part when a continuous over-current condition
Auto Restart
causes excessive heating.
Fast Current limit Response Time
3us to Moderate Over Currents When the switch current reaches the current limit, the part oper- ates in a constant-current mode to prohibit excessive currents from
20ns to Hard Shorts
causing damage. For the FPF2000-FPF2002 and FPF2004-
Fault Blanking
FPF2006, if the constant current condition still persists after 10ms, these parts will shut off the switch and pull the fault signal pin
Applications
(FLAGB) low. The FPF2000, FPF2001, FPF2004 and FPF2005, have an auto-restart feature which will turn the switch on again
after 80ms if the ON pin is still active. The FPF2002 and FPF2006
Cell Phones
do not have this auto-restart feature so the switch will remain off
GPS Devices
until the ON pin is cycled. For the FPF2003 and FPF2007, a cur-
MP3 Players
rent limit condition will immediately pull the fault signal pin low and
Digital Cameras the part will remain in the constant-current mode until the switch
current falls below the current limit. For the FPF2000 through
Peripheral Ports
FPF2003, the minimum current limit is 50m A while that for the
Hot Swap Supplies
FPF2004 through FPF2007 is 100m A. These parts are available in a space-saving 5 pin SC-70 package.
Functional Block Diagram
CONTROL LOGIC
CURRENT LIMIT
THERMAL
FLAGB
SHUTDOWN
©2004 Fairchild Semiconductor Corporation www.fairchildsemi.com FPF2000-FPF2007 Rev. C1
Page Summary Contents For Fairchild FPF2000-FPF2007 IntelliMAX™ Advanced Load Management Products Data Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 10 |
| File Size | 515.75 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the input voltage range for FPF2000-FPF2007 switches?
1.8 to 5.5 volts.
How do I know if there's a fault like overcurrent?
The FLAGB pin goes low to indicate over-current, under-voltage, or over-temperature.
What is the difference between FPF2000 and FPF2002 models?
FPF2000 has auto-restart after a fault, FPF2002 stays off until the ON pin is cycled.
What package do these load switches come in?
They are available in a space-saving 5-pin SC-70 package.
What happens during a sustained over-current condition?
Thermal protection shuts off the switch to prevent damage from overheating.
