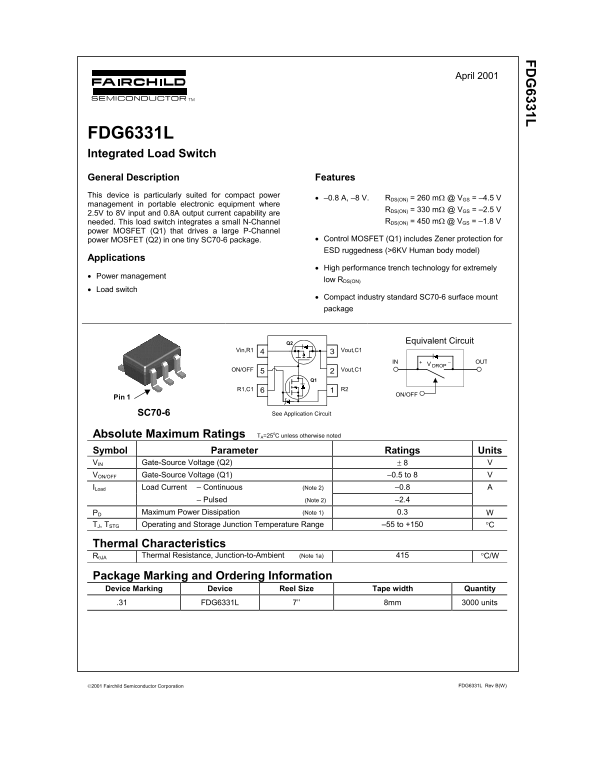

Fairchild FDG6331L Integrated Load Switch Data Sheet

FD 6331L

April 2001

FDG6331L Integrated Load Switch General Description Features This device is particularly suited for compact power

• –0.8 A, –8 V. RDS(ON) = 260 mΩ @ VGS = –4.5 V

management in portable electronic equipment where

RDS(ON) = 330 mΩ @ VGS = –2.5 V

2.5V to 8V input and 0.8A output current capability are

needed. This load switch integrates a small N-Channel RDS(ON) = 450 mΩ @ VGS = –1.8 V

power MOSFET (Q1) that drives a large P-Channel

power MOSFET (Q2) in one tiny SC70-6 package. • Control MOSFET (Q1) includes Zener protection for ESD ruggedness (>6KV Human body model)

Applications

• High performance trench technology for extremely

• Power management

low RDS(ON)

• Load switch

• Compact industry standard SC70-6 surface mount package

Q2 Equivalent Circuit

Vin,R1 Vout,C1

–IN OUT

ON/OFF Vout,C1

ON/OFF

Pin 1

SC70-6 See Application Circuit

Absolute Maximum Ratings TA=25o C unless otherwise noted Symbol Parameter Ratings Units VIN Gate-Source Voltage (Q2) ± 8 V VON/OFF Gate-Source Voltage (Q1) –0.5 to 8 V ILoad Load Current – Continuous (Note 2) –0.8 A – Pulsed (Note 2) –2.4 PD Maximum Power Dissipation (Note 1) 0.3 W TJ, TSTG Operating and Storage Junction Temperature Range –55 to +150 °C

Thermal Characteristics RθJA Thermal Resistance, Junction-to-Ambient (Note 1a) 415 °C/W

Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity .31 FDG6331L 7’’ 8mm 3000 units

2001 Fairchild Semiconductor Corporation FDG6331L Rev B(W)
