Fairchild FST16211 24-Bit Bus Switch Data Sheet
Summary
The FST16211 is a high-speed, 24-bit CMOS TTL-compatible bus switch designed for robust signal routing and controlled interconnection between two digital ports. It features low on-resistance and minimal propagation delay, ensuring reliable communication for demanding systems. This technical guide provides comprehensive documentation necessary for hardware designers, including detailed AC/DC electrical characteristics, operational truth tables, pin descriptions, and diverse packaging options (FBGA, SSOP, TSSOP) required for precise system integration and design validation.

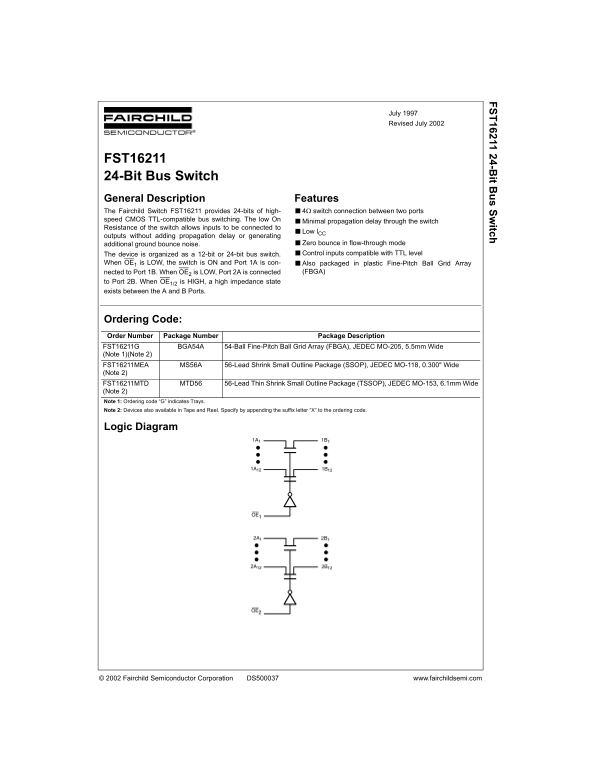

Page 1 Text Content
16211 24-B it B s S itch
July 1997 Revised July 2002
FST16211 24-Bit Bus Switch General Description Features The Fairchild Switch FST16211 provides 24-bits of high- ■4Ω switch connection between two ports speed CMOS TTL-compatible bus switching. The low On
■Minimal propagation delay through the switch
Resistance of the switch allows inputs to be connected to
■Low l CC
outputs without adding propagation delay or generating
additional ground bounce noise. ■Zero bounce in flow-through mode The device is organized as a 12-bit or 24-bit bus switch. ■Control inputs compatible with TTL level
When OE1 is LOW, the switch is ON and Port 1A is con- ■Also packaged in plastic Fine-Pitch Ball Grid Array
nected to Port 1B. When OE2 is LOW, Port 2A is connected (FBGA)
to Port 2B. When OE1/2 is HIGH, a high impedance state exists between the A and B Ports.
Ordering Code: Order Number Package Number Package Description FST16211G BGA54A 54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide (Note 1)(Note 2) FST16211MEA MS56A 56-Lead Shrink Small Outline Package (SSOP), JEDEC MO-118, 0.300" Wide (Note 2) FST16211MTD MTD56 56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide (Note 2) Note 1: Ordering code “G” indicates Trays. Note 2: Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Diagram
© 2002 Fairchild Semiconductor Corporation DS500037 www.fairchildsemi.com
Page Summary Contents For Fairchild FST16211 24-Bit Bus Switch Data Sheet
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 7 |
| File Size | 296.44 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I power on or off the switch ports?
When OE is LOW, Port 1A connects to Port 1B, and Port 2A connects to Port 2B. When OE is HIGH, there is a high impedance state between the A and B Ports.
What should I do with unused control inputs?
The unused control inputs must be held either HIGH or LOW; they may not float.
Is this device suitable for life support systems?
No, Fairchild states that its products are not authorized for use as critical components in life support devices without the express written approval of the corporation's President.
What is the switch's recommended maximum on resistance?
The typical On Resistance (R_ON) is 4.5 Ω (when V=0V and I=64 mA).
In what temperature range can this device be stored?
The Storage Temperature Range is specified as -65°C to +150 °C.
