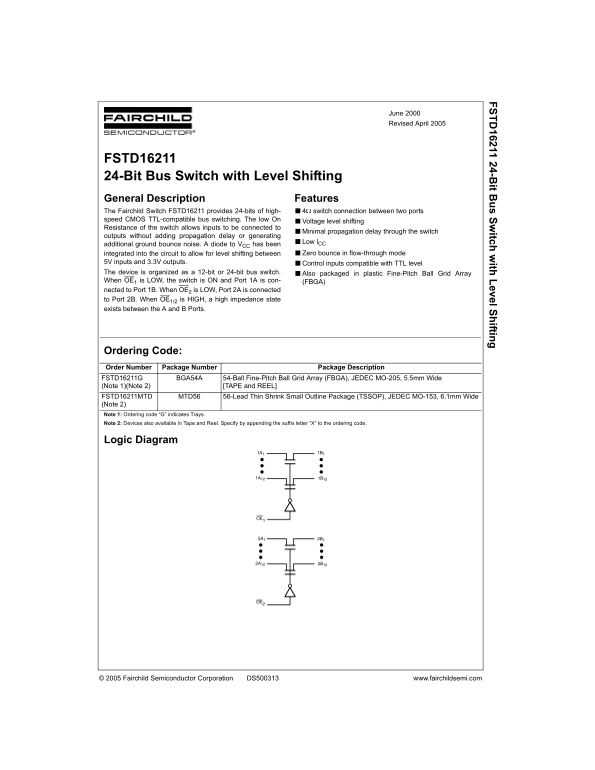

16211 24-B it B s S itch ith evel S iftin
June 2000 Revised April 2005
FSTD16211 24-Bit Bus Switch with Level Shifting General Description Features The Fairchild Switch FSTD16211 provides 24-bits of high- ■4: switch connection between two ports speed CMOS TTL-compatible bus switching. The low On
■Voltage level shifting
Resistance of the switch allows inputs to be connected to
■Minimal propagation delay through the switch
outputs without adding propagation delay or generating
■Low l CC
additional ground bounce noise. A diode to VCC has been
integrated into the circuit to allow for level shifting between ■Zero bounce in flow-through mode
5V inputs and 3.3V outputs. ■Control inputs compatible with TTL level The device is organized as a 12-bit or 24-bit bus switch. ■Also packaged in plastic Fine-Pitch Ball Grid Array When OE1 is LOW, the switch is ON and Port 1A is con- (FBGA) nected to Port 1B. When OE2 is LOW, Port 2A is connected to Port 2B. When OE1/2 is HIGH, a high impedance state exists between the A and B Ports.
Ordering Code: Order Number Package Number Package Description FSTD16211G BGA54A 54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-205, 5.5mm Wide (Note 1)(Note 2) [TAPE and REEL] FSTD16211MTD MTD56 56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide (Note 2) Note 1: Ordering code “G” indicates Trays. Note 2: Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
