PHILIPS CBTD16213 24-bit Level Shifting Bus Exchange Switch with 12-bit Output Enables Data Manual
Summary
The CBTD16213 is a versatile 24-bit level shifting bus exchange switch designed to reliably transfer data between electronic circuits. It provides high-speed, TTL-compatible switching while integrating a diode to facilitate level shifting from 5V inputs down to 3.3V outputs. This comprehensive manual offers critical electrical specifications, operating parameters, and advanced logic functions for engineers designing complex systems. Use this guide to ensure proper integration of the switch into your circuit board designs requiring robust cross-bus communication.

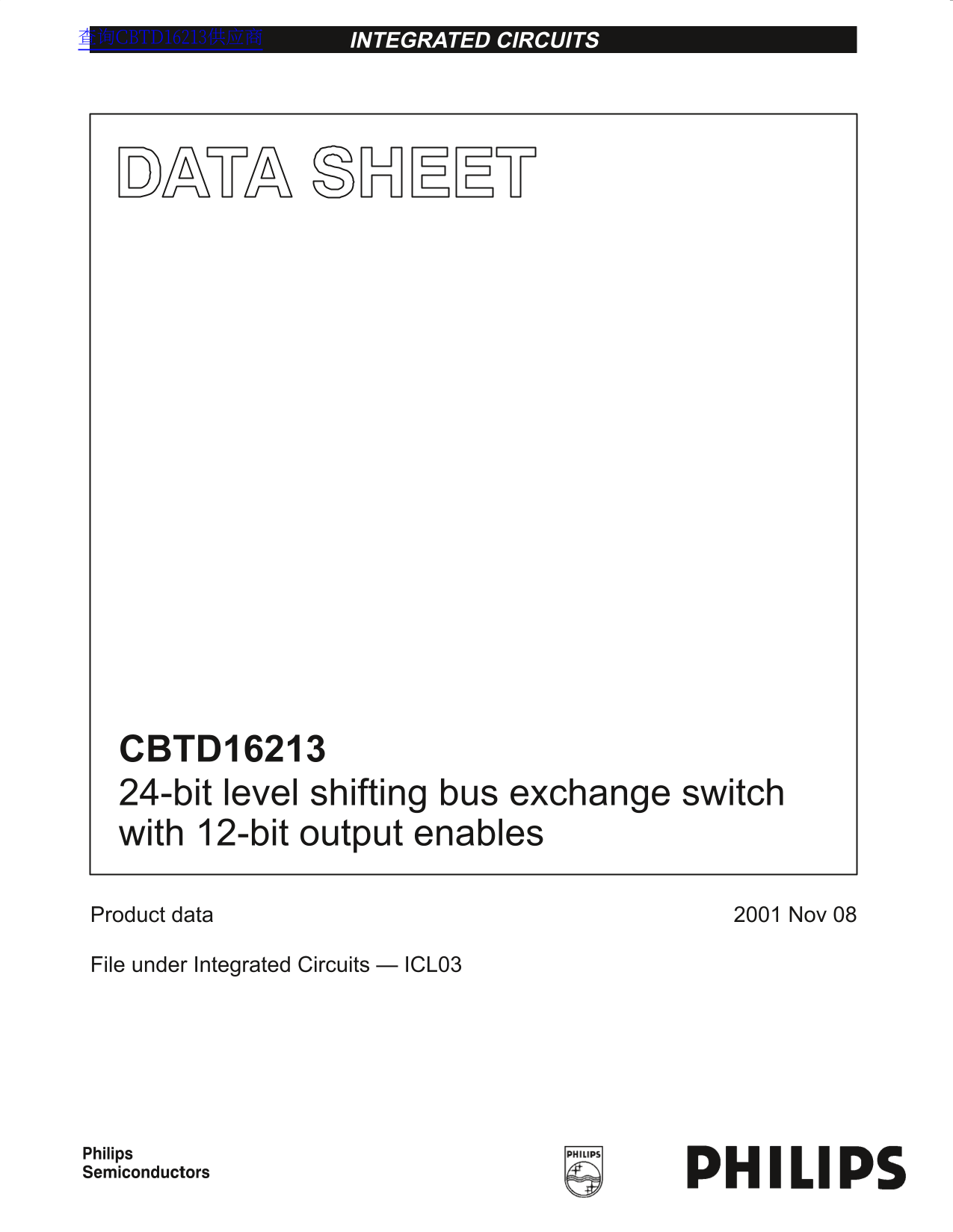

Page 1 Text Content
INTEGRATED CIRCUITS查询CBTD16213供应商
CBTD16213 24-bit level shifting bus exchange switch with 12-bit output enables
Product data 2001 Nov 08
File under Integrated Circuits — ICL03
Page Summary Contents For PHILIPS CBTD16213 24-bit Level Shifting Bus Exchange Switch with 12-bit Output Enables Data Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 10 |
| File Size | 77.96 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the bit capacity of the CBTD16213 bus switch?
The device provides 24 bits of high-speed TTL-compatible bus switching capability.
Does this chip support level shifting between different voltages?
Yes, an integrated diode enables level shifting from 5 V inputs to 3.3 V outputs.
What is the designated operating temperature range?
The CBTD16213 is characterized for operation over a range of –40 °C to +85 °C.
Can this product be used in life support systems?
No, these products are explicitly stated as not being designed for use in life support appliances or systems.
