Philips CBT3384 10-bit Bus Switch with 5-bit Output Enables Data Manual
Summary
The CBT3384 is a 10-bit bus switch designed for high-speed TTL-compatible signal routing. It features low on-state resistance and independent output enables, making it ideal for digital circuit designers and engineers requiring efficient signal management.
Page 1 Text Content

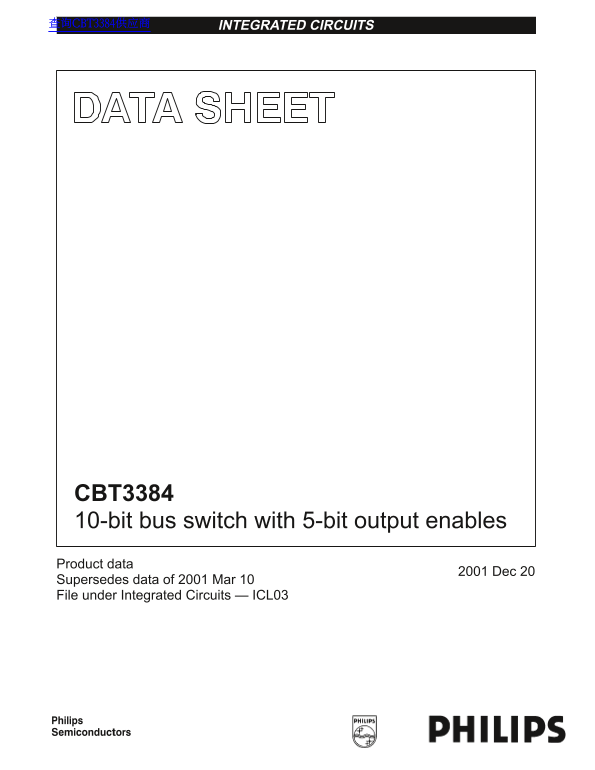

查询CBT3384供应商 INTEGRATED CIRCUITS
CBT3384 10-bit bus switch with 5-bit output enables Product data
2001 Dec 20
Supersedes data of 2001 Mar 10 File under Integrated Circuits — ICL03
Page Summary Contents For Philips CBT3384 10-bit Bus Switch with 5-bit Output Enables Data Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 10 |
| File Size | 103.60 KB |
| Published | June 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating temperature range of the CBT3384?
The CBT3384 is characterized for operation from –40 to +85 °C.
How do the output enable pins control the switch?
When OE is LOW, the switch is on and port A connects to B. When OE is HIGH, the switch is open (high-impedance).
What is the typical on-state resistance of the CBT3384?
The typical on-state resistance is 5 Ω, as specified in features and DC electrical characteristics.
What ESD protection does the CBT3384 offer?
ESD protection exceeds 2000 V HBM (per method A114) and 1000 V CDM (per method C101).
What package options are available for the CBT3384?
Available packages include 24-pin Plastic SO (CBT3384D), SSOP (CBT3384DB), SSOP QSOP (CBT3384DK), and TSSOP (CBT3384PW).
