This high-speed, TTL-compatible 8-bit bus switch provides reliable connection between two digital ports with minimal propagation delay and zero bounce in flow-through mode. Ideal for engineers designing robust electronic systems, the manual offers critical specifications covering operational pin configurations, DC electrical characteristics, absolute maximum ratings, and recommended operating conditions. It ensures optimal integration of this versatile component into your circuit design plans.

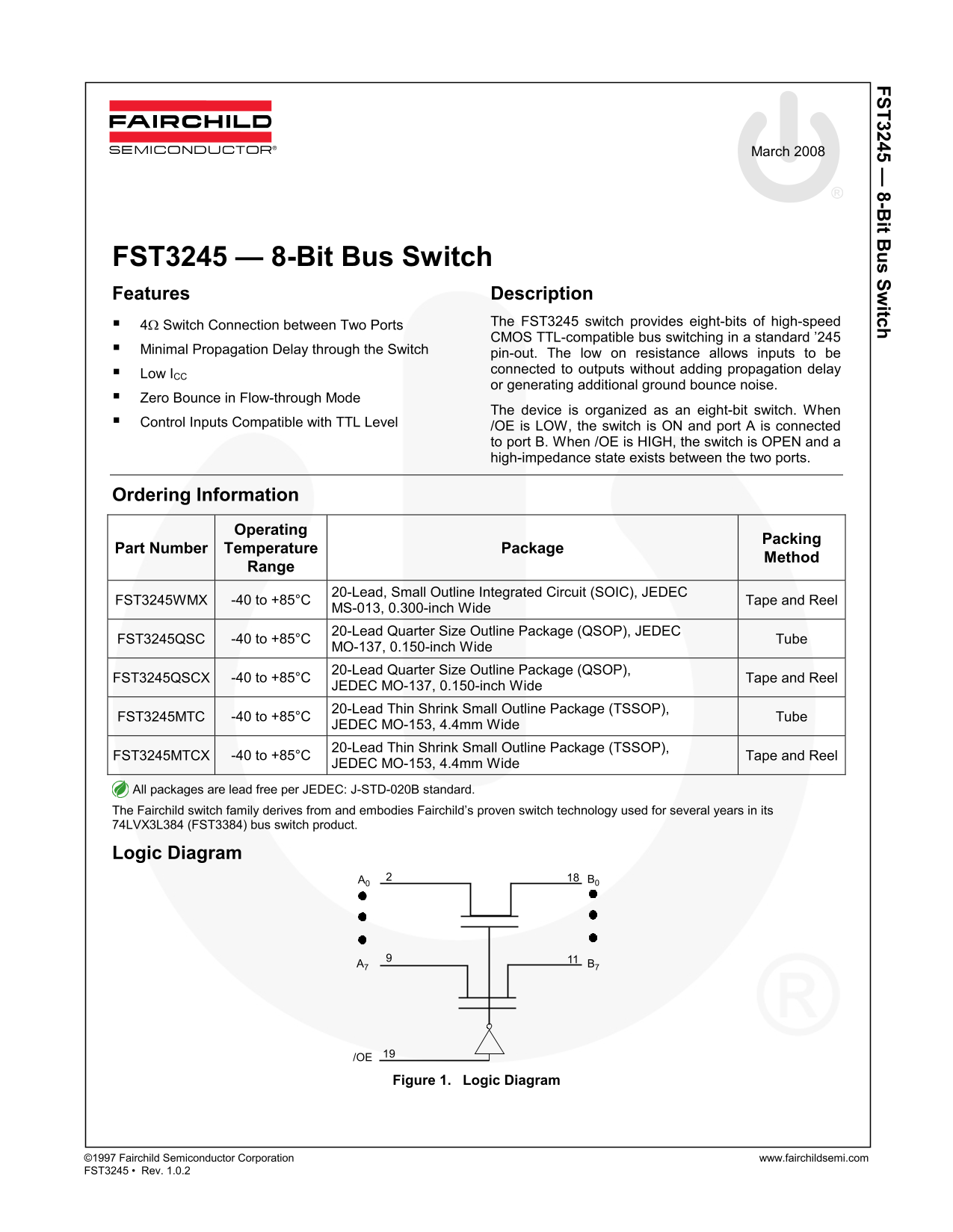

Page 1 Text Content
FST3245 — 8-B it B us Sw itch
March 2008
FST3245 — 8-Bit Bus Switch Features Description
4Ω Switch Connection between Two Ports The FST3245 switch provides eight-bits of high-speed CMOS TTL-compatible bus switching in a standard ’245
Minimal Propagation Delay through the Switch
pin-out. The low on resistance allows inputs to be connected to outputs without adding propagation delay
Low ICC
or generating additional ground bounce noise.
Zero Bounce in Flow-through Mode
The device is organized as an eight-bit switch. When
Control Inputs Compatible with TTL Level
/OE is LOW, the switch is ON and port A is connected to port B. When /OE is HIGH, the switch is OPEN and a high-impedance state exists between the two ports.
Ordering Information
Operating
Part Number Temperature Package Packing
Method
Range
FST3245WMX -40 to +85°C 20-Lead, Small Outline Integrated Circuit (SOIC), JEDEC
MS-013, 0.300-inch Wide Tape and Reel
FST3245QSC -40 to +85°C 20-Lead Quarter Size Outline Package (QSOP), JEDEC
MO-137, 0.150-inch Wide Tube
FST3245QSCX -40 to +85°C 20-Lead Quarter Size Outline Package (QSOP),
JEDEC MO-137, 0.150-inch Wide Tape and Reel
FST3245MTC -40 to +85°C 20-Lead Thin Shrink Small Outline Package (TSSOP),
JEDEC MO-153, 4.4mm Wide Tube
FST3245MTCX -40 to +85°C 20-Lead Thin Shrink Small Outline Package (TSSOP),
JEDEC MO-153, 4.4mm Wide Tape and Reel
All packages are lead free per JEDEC: J-STD-020B standard. The Fairchild switch family derives from and embodies Fairchild’s proven switch technology used for several years in its 74LVX3L384 (FST3384) bus switch product.
Logic Diagram
Figure 1. Logic Diagram
©1997 Fairchild Semiconductor Corporation www.fairchildsemi.com FST3245 • Rev. 1.0.2
Page Summary Contents For Fairchild FST3245 8-Bit Bus Switch Data Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 9 |
| File Size | 434.50 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How is the FST3245 switch activated?
The device connects Bus A to Bus B when /OE is LOW, turning it ON; connecting it HIGH keeps the switch open.
What determines if the switch output causes signal delay?
Its low on resistance (R_ON) allows inputs to be connected to outputs without adding propagation delay.
What is the typical operating voltage range for the FST3245?
The recommended Power Supply Operating range is between 4.0 V and 5.5 V.
Which packages are available for ordering this switch?
Available packages include QSOP (e.g., FST3245QSC) and TSSOP (e.g., FST3245MTC).
