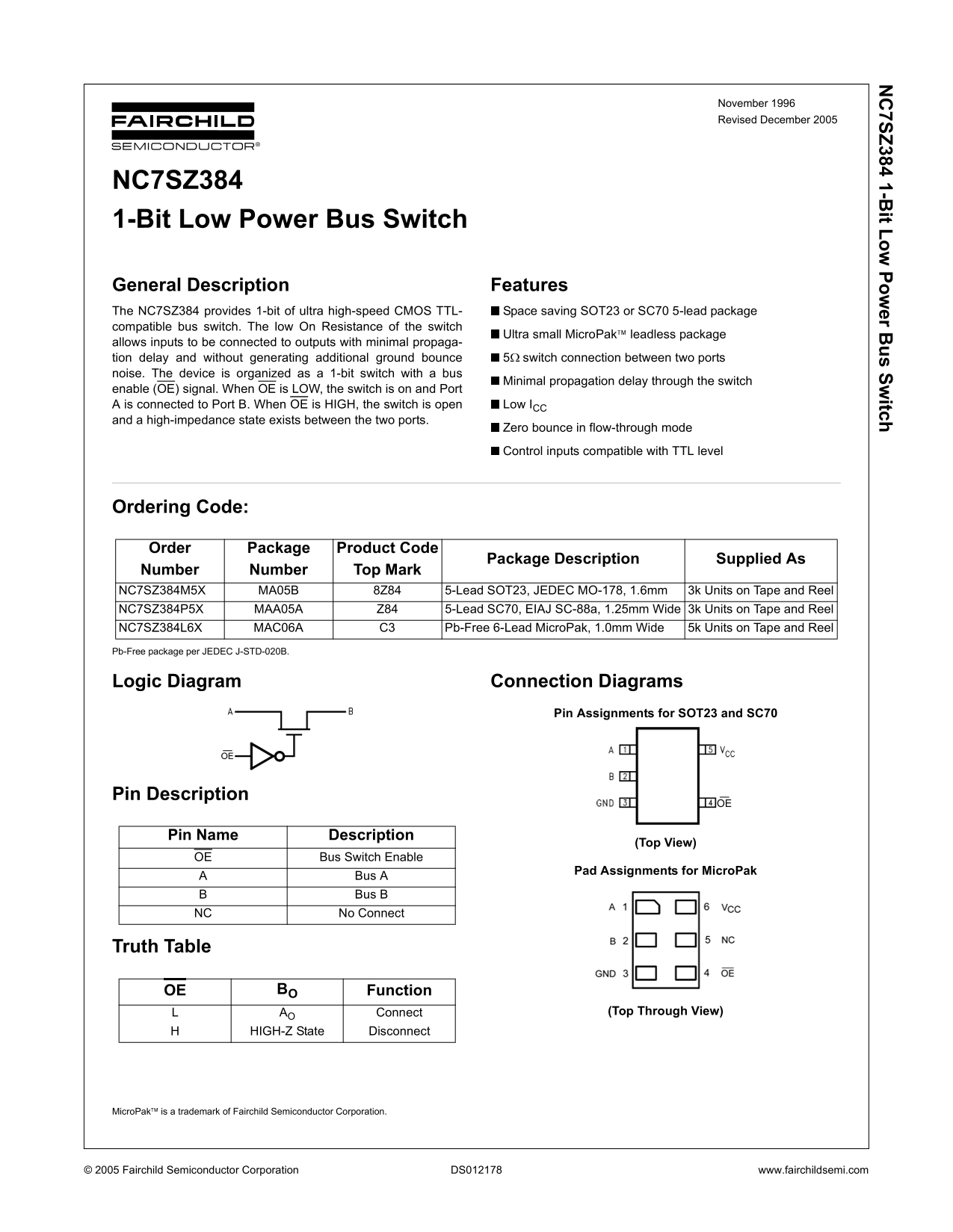

Fairchild NC7SZ384 1-Bit Low Power Bus Switch Data Sheet

7S 384 1-B it L er B s S itch

November 1996 Revised December 2005

NC7SZ384 1-Bit Low Power Bus Switch

General Description Features The NC7SZ384 provides 1-bit of ultra high-speed CMOS TTL- Space saving SOT23 or SC70 5-lead package compatible bus switch. The low On Resistance of the switch

Ultra small Micro Pak leadless package

allows inputs to be connected to outputs with minimal propaga-

tion delay and without generating additional ground bounce 5 switch connection between two ports

noise. The device is organized as a 1-bit switch with a bus

Minimal propagation delay through the switch

enable (OE) signal. When OE is LOW, the switch is on and Port

A is connected to Port B. When OE is HIGH, the switch is open Low ICC

and a high-impedance state exists between the two ports.

Zero bounce in flow-through mode

Control inputs compatible with TTL level

Ordering Code:

Order Package Product Code

Package Description Supplied As

Number Number Top Mark NC7SZ384M5X MA05B 8Z84 5-Lead SOT23, JEDEC MO-178, 1.6mm 3k Units on Tape and Reel NC7SZ384P5X MAA05A Z84 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3k Units on Tape and Reel NC7SZ384L6X MAC06A C3 Pb-Free 6-Lead Micro Pak, 1.0mm Wide 5k Units on Tape and Reel Pb-Free package per JEDEC J-STD-020B.

Logic Diagram Connection Diagrams

Pin Assignments for SOT23 and SC70

Pin Description

Pin Name Description

(Top View)

OE Bus Switch Enable

Pad Assignments for Micro Pak

Bus A Bus B

NC No Connect

Truth Table

OE BO Function

AO Connect (Top Through View)

HIGH-Z State Disconnect

Micro Pak is a trademark of Fairchild Semiconductor Corporation.

© 2005 Fairchild Semiconductor Corporation DS012178 www.fairchildsemi.com
