Fairchild NC7SZD384 1-Bit Low Power Bus Switch with Level Shifting Data Manual
Summary
This high-speed, 1-bit CMOS bus switch is engineered for critical signal path switching and robust level-shifting applications. The low-power NC7SZD384 provides a reliable connection between two data ports that can be digitally enabled or fully disconnected with minimal propagation delay. This manual offers comprehensive technical specifications, including operational ratings, AC/DC electrical characteristics, and available ultra-compact packages (like SOT23 and MicroPak), making it an essential component for hardware engineers designing efficient digital circuits requiring precise signal isolation.

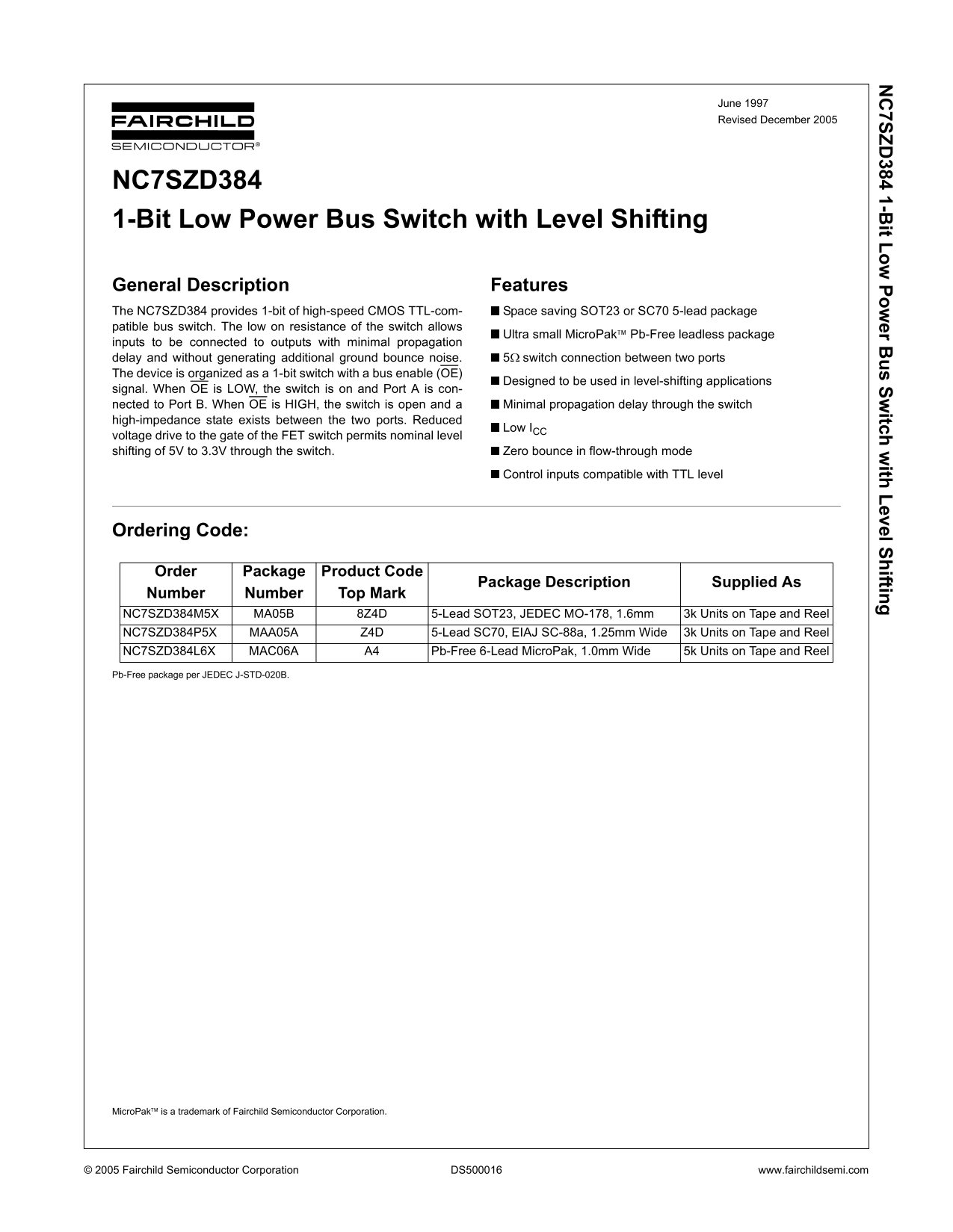

Page 1 Text Content
7S 384 1-B it L er B s S itch ith evel S iftin
June 1997 Revised December 2005
NC7SZD384 1-Bit Low Power Bus Switch with Level Shifting
General Description Features The NC7SZD384 provides 1-bit of high-speed CMOS TTL-com- Space saving SOT23 or SC70 5-lead package patible bus switch. The low on resistance of the switch allows
Ultra small Micro Pak Pb-Free leadless package
inputs to be connected to outputs with minimal propagation
delay and without generating additional ground bounce noise. 5 switch connection between two ports
The device is organized as a 1-bit switch with a bus enable (OE)
Designed to be used in level-shifting applications
signal. When OE is LOW, the switch is on and Port A is con-
nected to Port B. When OE is HIGH, the switch is open and a Minimal propagation delay through the switch
high-impedance state exists between the two ports. Reduced
Low ICC
voltage drive to the gate of the FET switch permits nominal level
shifting of 5V to 3.3V through the switch. Zero bounce in flow-through mode
Control inputs compatible with TTL level
Ordering Code:
Order Package Product Code
Package Description Supplied As
Number Number Top Mark NC7SZD384M5X MA05B 8Z4D 5-Lead SOT23, JEDEC MO-178, 1.6mm 3k Units on Tape and Reel NC7SZD384P5X MAA05A Z4D 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3k Units on Tape and Reel NC7SZD384L6X MAC06A A4 Pb-Free 6-Lead Micro Pak, 1.0mm Wide 5k Units on Tape and Reel Pb-Free package per JEDEC J-STD-020B.
Micro Pak is a trademark of Fairchild Semiconductor Corporation.
© 2005 Fairchild Semiconductor Corporation DS500016 www.fairchildsemi.com
Page Summary Contents For Fairchild NC7SZD384 1-Bit Low Power Bus Switch with Level Shifting Data Manual
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 11 |
| File Size | 226.96 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the primary function of the NC7SZD384?
It provides 1-bit of high-speed CMOS TTL-compatible bus switching, connecting Port A to Port B.
How is the switch controlled and what happens when it's disabled?
The 'OE' (Bus Switch Enable) input controls it. When OE is HIGH, the switch is opened, creating a high-impedance state.
What types of packages are available for this component?
It is available in SOT23 and SC70 5-lead packages, as well as MicroPak.
Is this device suitable for level shifting applications?
Yes, it supports nominal level shifting from 5V down to 3.3V due to its low Icc voltage drive to the gate of the FET switch.
