PHILIPS CBT6800 10-bit Bus Switch with Precharged Outputs for Live Insertion - Data Manual/Specifications/Owner's Manual
Summary
Product specification datasheet (October 1999) for the Philips CBT6800 10-bit bus switch with precharged outputs for live insertion, featuring 5Ω switch connection and TTL-compatible inputs/outputs. Key feature: B port precharged to user-selectable BIASV voltage to minimize signal distortion during live insertion, with B port connected to BIASV through equivalent 10 kΩ resistor when switch is open. Propagation delay: 250 ps typical (CL=50pF, VCC=5V) from An to Bn. Single enable input (OE): LOW c
Page 1 Text Content

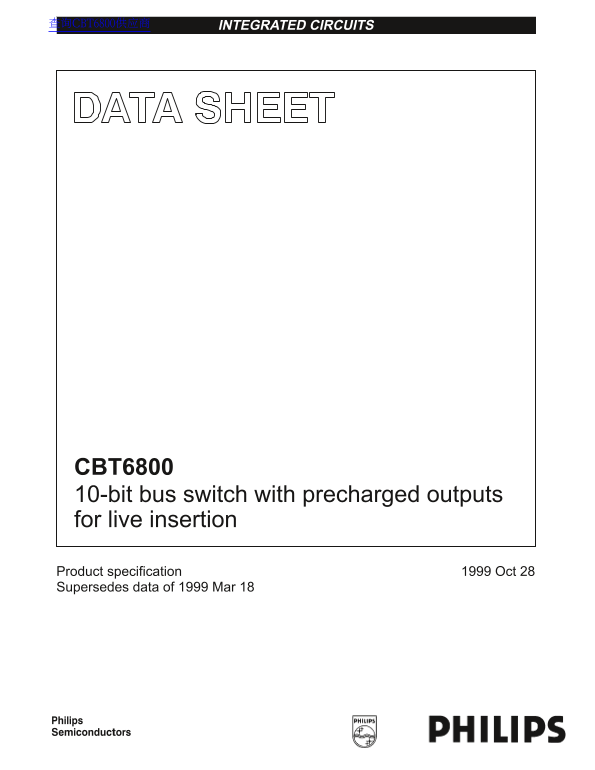

查询CBT6800供应商 INTEGRATED CIRCUITS
CBT6800 10-bit bus switch with precharged outputs for live insertion
Product specification 1999 Oct 28 Supersedes data of 1999 Mar 18
Page Summary Contents For PHILIPS CBT6800 10-bit Bus Switch with Precharged Outputs for Live Insertion - Data Manual/Specifications/Owner's Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 8 |
| File Size | 77.36 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How does the CBT6800 minimize signal noise during live insertion?
It precharges the B port to a user-selectable bias voltage (BIASV) to reduce live-insertion noise.
What condition must the Output Enable (OE) pin meet for the switch to operate?
The switch is active ("on") when OE input is low and opens when OE input is high.
Does this bus switch provide protection against static discharge?
Yes, it features ESD protection exceeding 2000 V HBM per JESD22-A114.
What are the recommended operating temperature limits for this device?
The CBT6800 is characterized for operation from –40°C to 85°C.
