PHILIPS CBT6832D 16-bit Controlled Enable Rate 1-of-2 Multiplexer Demultiplexer with Precharged Outputs and Charge Pump Undershoot Protection for Live Insertion
Summary
The CBT6832D is a specialized 16-bit controlled enable rate 1-of-2 multiplexer/demultiplexer designed for high-reliability signal routing in sensitive circuits. Featuring precharged outputs and comprehensive undershoot protection, it ensures stable operation during live insertion (hot-plugging) applications like PCI-X systems. This manual provides detailed technical specifications, including pin mappings, electrical characteristics, operating voltage/temperature ranges (+4.5V to +5.5V), and functional diagrams for seamless integration. It is essential reading for hardware engineers and digital designers developing advanced communication and data switching systems.
Page 1 Text Content
INTEGRATED CIRCUITS查询CBT6832D供应商

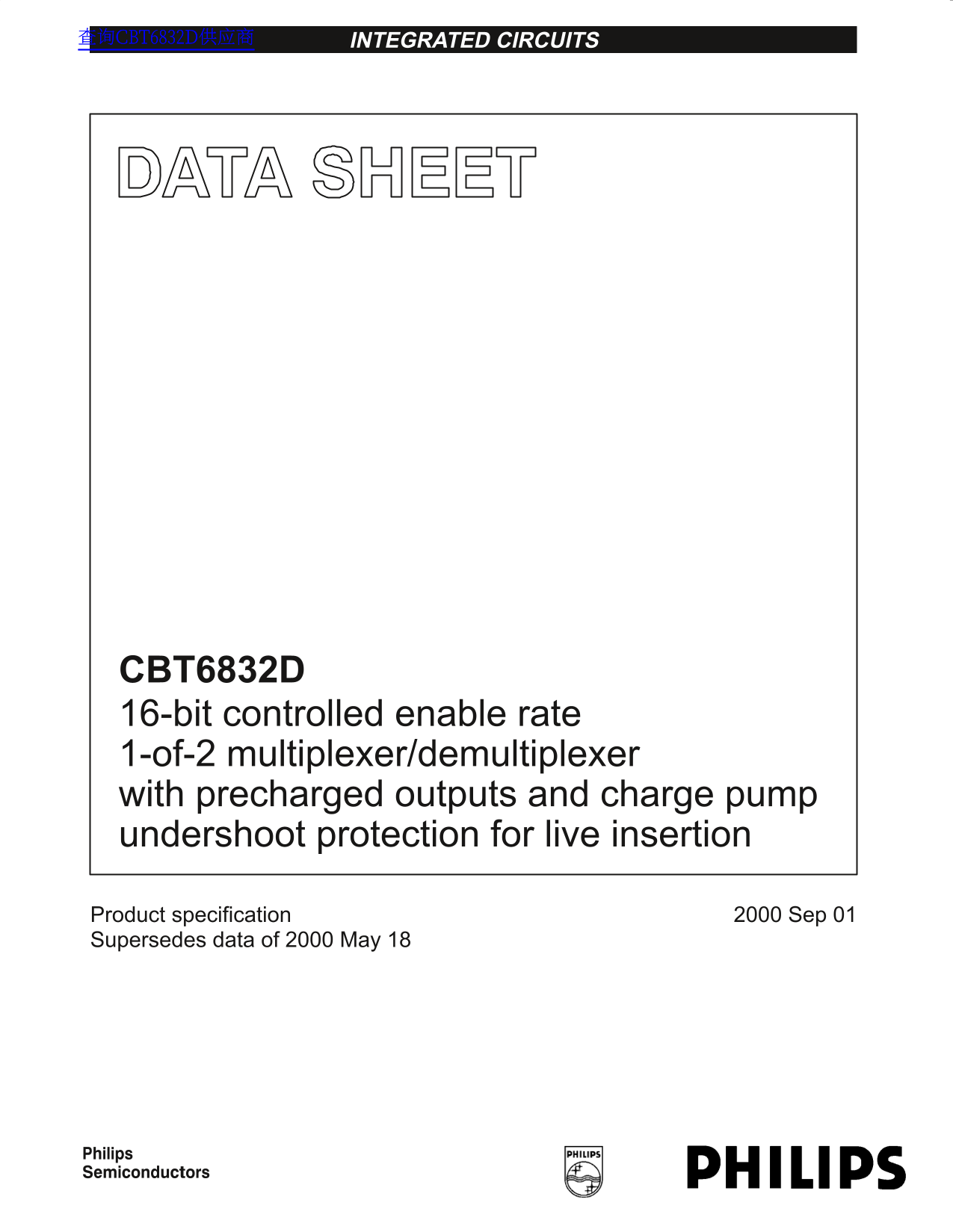

CBT6832D 16-bit controlled enable rate 1-of-2 multiplexer/demultiplexer with precharged outputs and charge pump undershoot protection for live insertion
Product specification 2000 Sep 01 Supersedes data of 2000 May 18
Page Summary Contents For PHILIPS CBT6832D 16-bit Controlled Enable Rate 1-of-2 Multiplexer Demultiplexer with Precharged Outputs and Charge Pump Undershoot Protection for Live Insertion
Manual Details
| Brand | Philips |
|---|---|
| Pages | 8 |
| File Size | 64.20 KB |
| Published | June 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended operating voltage range for this device?
The operating voltage (V CC) should be maintained between +4.5 V and +5.5 V.
What type of protection features does the CBT6832D offer?
It provides precharged outputs, charge pump undershoot protection for live insertion, and latch-up protection exceeding 100 mA.
How is the device packaged and what environment is it suitable for?
It comes in a 56-pin TSSOP package and has a temperature range of 0°C to +70°C.
What is the typical propagation delay at standard conditions?
The typical propagation delay (T = 25°C, C = 50 pF; V = 5 V) for both directions is 0.25 ns.
