PHILIPS 74HC HCT4353 Triple 2-Channel Analog Multiplexer Demultiplexer with Latch
Summary
Product specification datasheet (December 1990) for the Philips 74HC/HCT4353 triple 2-channel analog multiplexer/demultiplexer with address latch, part of the high-speed Si-gate CMOS logic family. Key features: wide analog input voltage range of ±5V, low ON resistance (80Ω typ. at 4.5V, 70Ω at 6.0V, 60Ω at 9.0V), logic level translation enabling 5V logic to communicate with ±5V analog signals, typical break-before-make switching, and address latches with active LOW latch enable (LE) input. Per J
Page 1 Text Content
查询74HC/HCT4353供应商

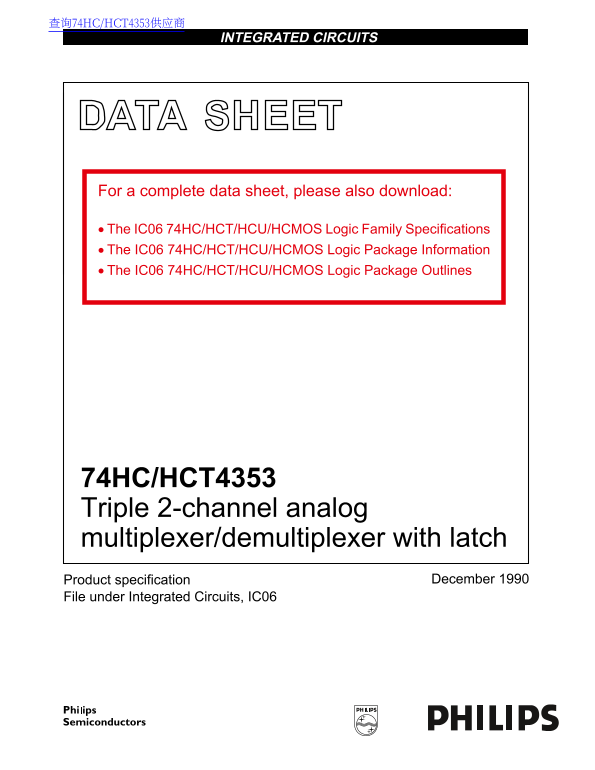

INTEGRATED CIRCUITS
DATA SHEET For a complete data sheet, please also download: The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications The IC06 74HC/HCT/HCU/HCMOS Logic Package Information The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines
74HC/HCT4353 Triple 2-channel analog multiplexer/demultiplexer with latch
Product specification December
File under Integrated Circuits, IC06
Page Summary Contents For PHILIPS 74HC HCT4353 Triple 2-Channel Analog Multiplexer Demultiplexer with Latch
Manual Details
| Brand | Philips |
|---|---|
| Pages | 16 |
| File Size | 119.34 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of applications can the 74HC/HCT4353 support?
It can be used for analog multiplexing and demultiplexing, as well as digital multiplexing and demultiplexing, and signal gating.
What are the operational voltage ranges (VCC) for this chip?
The general operating range is 2.0 to 10.0 V for HC, and 4.5 to 5.5 V for HCT.
How does the latch enable input (LE) function?
The active LOW latch enable input allows selected channels' data to be latched when LE passes through a transition.
Are there differences in functionality between HC and HCT types?
HCT is designed for interfacing with 5 V logic, operating with a lower voltage range (4.5–5.5V CC) compared to the standard HC type.
