PHILIPS 74HC HCT258 Quad 2-Input Multiplexer; 3-State; Inverting Data Manual
Summary
This datasheet provides specifications for the 74HC and 74HCT258 quad 2-input multiplexer with 3-state inverting outputs, a high-speed Si-gate CMOS logic device. It covers functional description, truth tables, propagation delay characteristics, and application notes for data selection and bus interfacing in digital logic circuit designs.
Page 1 Text Content
查询74HC/HCT258供应商
INTEGRATED CIRCUITS
DATA SHEET
74HC/HCT258 Quad 2-input multiplexer; 3-state; inverting Product specification Sep File under Integrated Circuits, IC06
Page Summary Contents For PHILIPS 74HC HCT258 Quad 2-Input Multiplexer; 3-State; Inverting Data Manual
Page 1

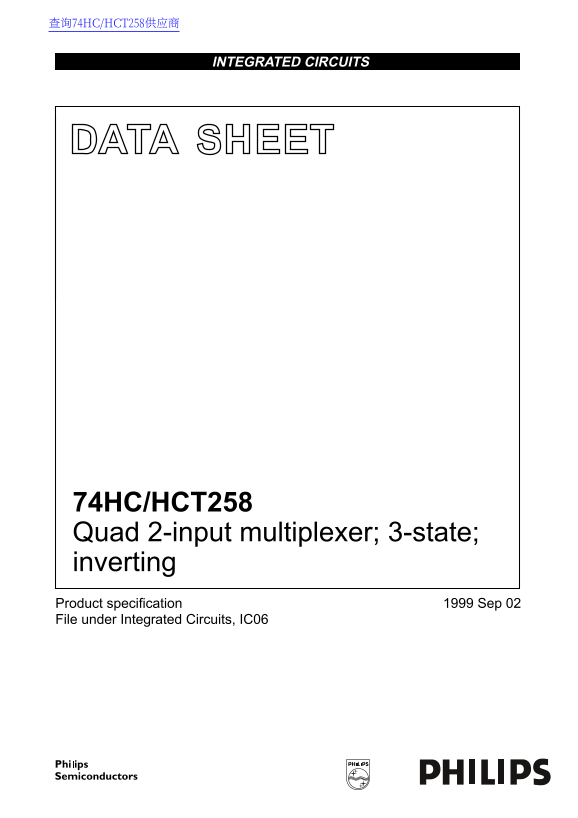

查询74HC/HCT258供应商 INTEGRATED CIRCUITS DATA SHEET 74HC/HCT258 Quad 2-input multiplexer; 3-state; inverting Product specification Sep File under Integrated Circuits, IC06
Page 2
Philips Semiconductors Product specification Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 FEATURES Data appears at the outputs (1Y to 4Y) in inverted form from the select inputs. Inverting...
Page 3
Philips Semiconductors Product specification Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 ORDERING INFORMATION PACKAGE TYPE NUMBER NAME DESCRIPTION VERSION 74HC258N; DIP16 plastic dual in-...
Page 4
Philips Semiconductors Product specification Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 handbook, full pagewidth SELECTOR 3-STATE MULTIPLEXER OUTPUTS MBL095 Fig.4 Functional diagram. FUN...
Page 5
Philips Semiconductors Product specification Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 DC CHARACTERISTICS FOR 74HC For the DC characteristics see chapter “HCMOS family characteristics”,...
Page 6
Philips Semiconductors Product specification Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 DC CHARACTERISTICS FOR 74HCT For the DC characteristics see chapter “HCMOS family characteristics”...
Page 7
Philips Semiconductors Product specification Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 AC WAVEFORMS handbook, full pagewidth (1) S, nl0, nl1 INPUT VM t PHL t PLH n Y OUTPUT (1) VM t THL...
Page 8
Philips Semiconductors Product specification se at in pl an Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 PACKAGE OUTLINES DIP16: plastic dual in-line package; 16 leads (300 mil); long body...
Page 9
Philips Semiconductors Product specification Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 SO16: plastic small outline package; 16 leads; body width 3.9 mm SOT109-1 (A )3 AA1 pin 1 index de...
Page 10
Philips Semiconductors Product specification Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 SSOP16: plastic shrink small outline package; 16 leads; body width 5.3 mm SOT338-1 pin 1 index det...
Page 11
Philips Semiconductors Product specification Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 SOLDERING Typical reflow peak temperatures range from to °C. The top-surface temperature of the In...
Page 12
Philips Semiconductors Product specification Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 Suitability of IC packages for wave, reflow and dipping soldering methods SOLDERING METHOD MOUNTIN...
Page 13
Philips Semiconductors Product specification Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 NOTES
Page 14
Philips Semiconductors Product specification Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 NOTES
Page 15
Philips Semiconductors Product specification Quad 2-input multiplexer; 3-state; inverting 74HC/HCT258 NOTES
Page 16
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 3 Figtree Drive, HOMEBUSH, NSW 21...
