PHILIPS 74HC HCT4511 BCD to 7-segment latch decoder driver
Summary
The 74HC/HCT4511 is a high-speed Si-gate CMOS BCD to 7-segment latch/decoder/driver, ideal for reliably interfacing digital logic with seven-segment displays. This comprehensive manual provides essential technical specifications, including functional timing diagrams, pull-up/pull-down details, and operational guidelines for multiple display types such as LED, LCD, and gas discharge screens. It is designed for electrical engineers needing a stable solution to decode BCD inputs into clear graphical segment outputs.
Page 1 Text Content

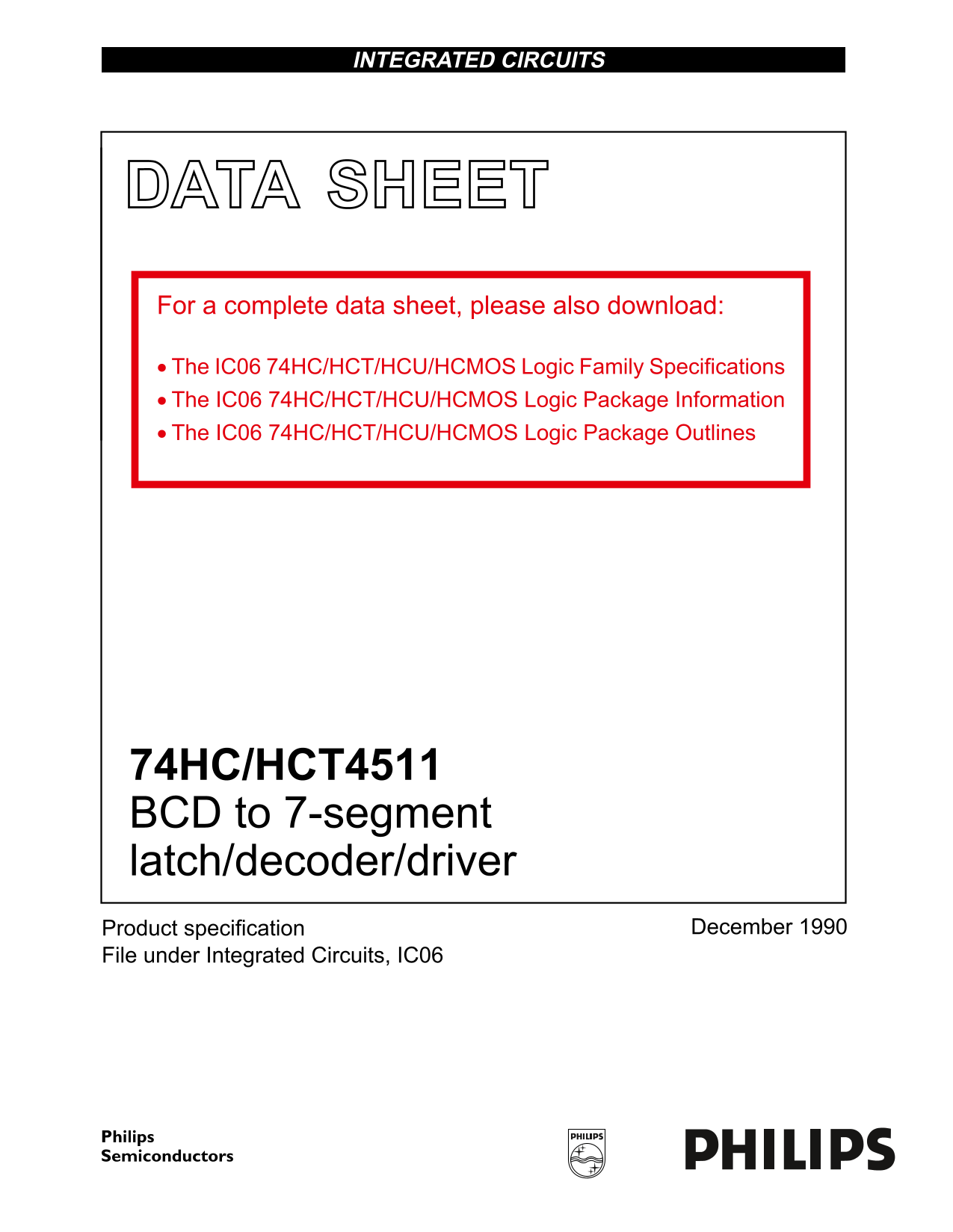

INTEGRATED CIRCUITS
DATA SHEET For a complete data sheet, please also download: The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications The IC06 74HC/HCT/HCU/HCMOS Logic Package Information The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines
74HC/HCT4511 BCD to 7-segment latch/decoder/driver
Product specification December
File under Integrated Circuits, IC06
Page Summary Contents For PHILIPS 74HC HCT4511 BCD to 7-segment latch decoder driver
Manual Details
| Brand | Philips |
|---|---|
| Pages | 12 |
| File Size | 76.47 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What displays can the 74HC/HCT4511 drive?
It can drive common cathode LED, incandescent, fluorescent, LCD, and gas discharge displays.
How does the latch store BCD inputs?
When LE is LOW, outputs follow D to D. When LE goes HIGH, the last data are stored and outputs stay stable.
What is the IC's guaranteed drive capability?
It has a guaranteed 10 mA drive capability per output and is categorized as MSI.
How do I use the lamp test feature?
Set the active LOW LT input to LOW; all segment outputs will go HIGH regardless of other inputs.
