PHILIPS 74HC HCT11 Triple 3-Input AND Gate Data Sheet
Summary
This 74HC/HCT11 is a high-speed CMOS triple 3-input AND gate logic device, pin-compatible with LSTTL circuits and adhering to JEDEC standards. The accompanying manual serves as a comprehensive resource for electronic engineers, detailing every aspect of the component's use. It covers full functional specifications, including detailed PIN descriptions, power dissipation calculations, electrical characteristics (AC/DC), propagation delay timing diagrams, and operational guidelines for both HC and HCT variants, ensuring accurate integration into digital logic designs.

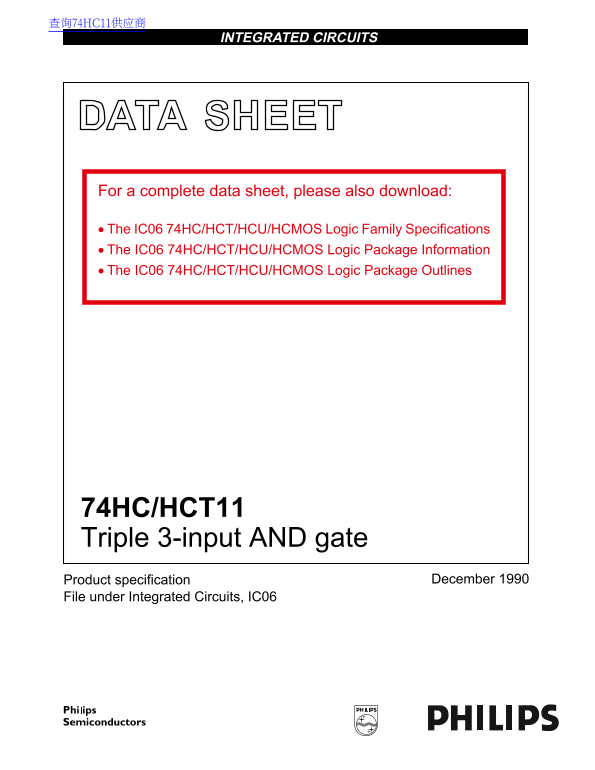

Page 1 Text Content
查询74HC11供应商
INTEGRATED CIRCUITS
DATA SHEET For a complete data sheet, please also download: The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications The IC06 74HC/HCT/HCU/HCMOS Logic Package Information The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines
74HC/HCT11 Triple 3-input AND gate
Product specification December
File under Integrated Circuits, IC06
Page Summary Contents For PHILIPS 74HC HCT11 Triple 3-Input AND Gate Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 5 |
| File Size | 35.30 KB |
| Published | June 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Is the 74HC/HCT11 compatible with TTL logic?
Yes, the 74HC/HCT11 is pin compatible with low power Schottky TTL (LSTTL).
What are the functions of pins 12, 6, and 8?
Pins 12, 6, and 8 are the data outputs (1Y to 3Y).
Where can I find ordering information for this IC?
Ordering information is available in the separate document '74HC/HCT/HCU/HCMOS Logic Package Information'.
How is dynamic power dissipation calculated for the 74HC/HCT11?
Use the formula: P_D = C_PD × V_CC² × f_i + ∑ (C_L × V_CC² × f_o), with C_PD specified per gate.
What voltage conditions are required for HCT series operation?
For 74HCT, input voltage V_I must be between GND and V_CC − 1.5 V.
