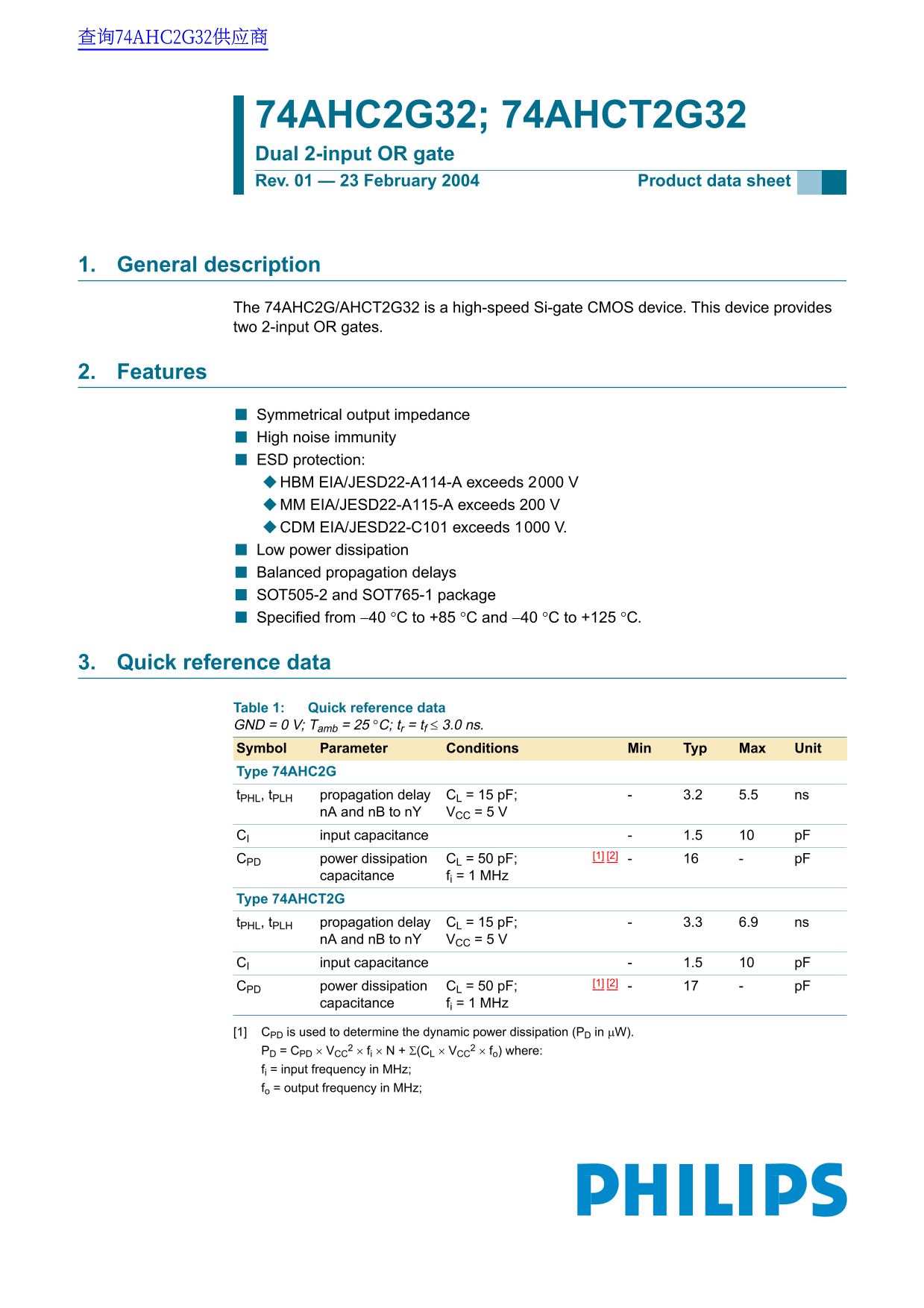

74AHC2G32; 74AHCT2G32 Dual 2-input OR gate Rev. 01 — 23 February 2004 Product data sheet
1. General description
The 74AHC2G/AHCT2G32 is a high-speed Si-gate CMOS device. This device provides two 2-input OR gates.
2. Features
Symmetrical output impedance High noise immunity ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 MM EIA/JESD22-A115-A exceeds 200 CDM EIA/JESD22-C101 exceeds 1000 V. Low power dissipation Balanced propagation delays SOT505-2 and SOT765-1 package Specified from −40 °C to +85 °C and −40 °C to +125 °C.
3. Quick reference data
Table 1: Quick reference data GND V; Tamb °C; tr tf 3.0 ns. Symbol Parameter Conditions Min Typ Max Unit Type 74AHC2G
t PHL, t PLH propagation delay CL p F; 3.2 5.5 ns n A and n B to n Y VCC CI input capacitance 1.5 p F
CPD power dissipation CL p F; p F capacitance fi MHz
Type 74AHCT2G
t PHL, t PLH propagation delay CL p F; 3.3 6.9 ns n A and n B to n Y VCC CI input capacitance 1.5 p F
CPD power dissipation CL p F; p F capacitance fi MHz
[1] CPD is used to determine the dynamic power dissipation (PD in µW). PD CPD VCC fi Σ(CL VCC fo) where: fi input frequency in MHz; fo output frequency in MHz;
