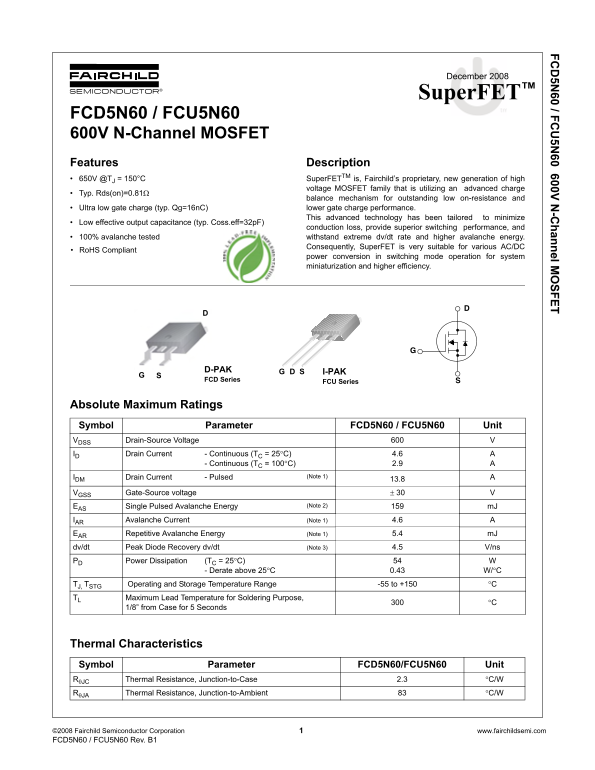

FC 5N 60 / FC 5N 60 600V N -C hannel M SFET
December 2008
Super FET
FCD5N60 / FCU5N60 600V N-Channel MOSFET Features Description 650V @TJ = 150°C Super FETTM is, Fairchild’s proprietary, new generation of high
voltage MOSFET family that is utilizing an advanced charge
Typ. Rds(on)=0.81Ω
balance mechanism for outstanding low on-resistance and
Ultra low gate charge (typ. Qg=16n C) lower gate charge performance.
This advanced technology has been tailored to minimize
Low effective output capacitance (typ. Coss.eff=32p F)
conduction loss, provide superior switching performance, and 100% avalanche tested withstand extreme dv/dt rate and higher avalanche energy. Consequently, Super FET is very suitable for various AC/DC
Ro HS Compliant
power conversion in switching mode operation for system miniaturization and higher efficiency.
D-PAK SD I-PAK FCD Series G
FCU Series
Absolute Maximum Ratings Symbol Parameter FCD5N60 / FCU5N60 Unit VDSS Drain-Source Voltage
ID Drain Current - Continuous (TC = 25°C) 4.6 - Continuous (TC = 100°C) 2.9
IDM Drain Current - Pulsed (Note 1)
VGSS Gate-Source voltage ± 30
EAS Single Pulsed Avalanche Energy (Note 2) m J
IAR Avalanche Current (Note 1) 4.6
EAR Repetitive Avalanche Energy (Note 1) 5.4 m J
dv/dt Peak Diode Recovery dv/dt (Note 3) 4.5 V/ns
PD Power Dissipation (TC = 25°C)
- Derate above 25°C 0.43 W/°C
TJ, TSTG Operating and Storage Temperature Range -55 to +150 °C
TL Maximum Lead Temperature for Soldering Purpose,
1/8” from Case for 5 Seconds
Thermal Characteristics Symbol Parameter FCD5N60/FCU5N60 Unit RθJC Thermal Resistance, Junction-to-Case 2.3 °C/W
RθJA Thermal Resistance, Junction-to-Ambient °C/W
©20 08 Fairchild Semiconductor Corporation www.fairchildsemi.com FC D5N60 / FCU5N60 Rev. B1
