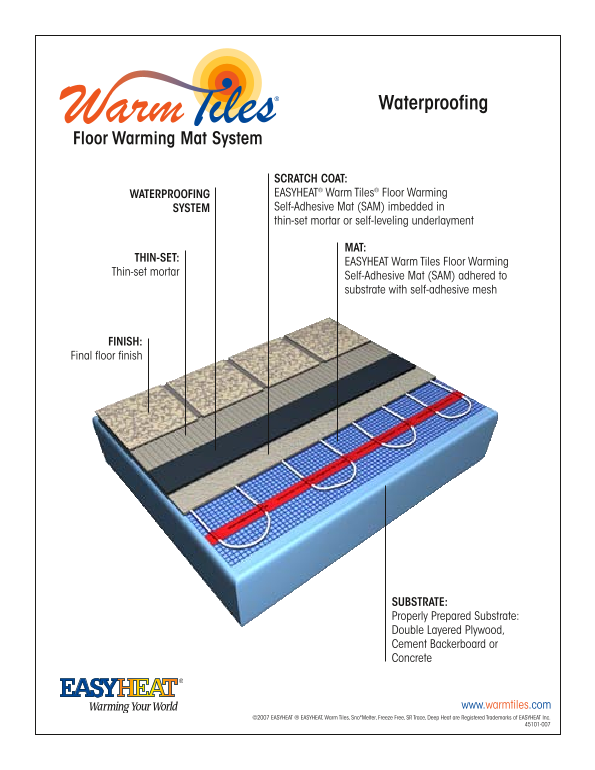

Page 1 Text Content
Waterproofing
Floor Warming Mat System
SCRATCH COAT:
WATERPROOFING EASYHEAT® Warm Tiles® Floor Warming
SYSTEM Self-Adhesive Mat (SAM) imbedded in thin-set mortar or self-leveling underlayment
THIN-SET:
EASYHEAT Warm Tiles Floor Warming
Thin-set mortar
Self-Adhesive Mat (SAM) adhered to substrate with self-adhesive mesh
FINISH: Final floor finish
SUBSTRATE: Properly Prepared Substrate: Double Layered Plywood, Cement Backerboard or Concrete
www.warmtiles.com
©2007 EASYHEAT EASYHEAT, Warm Tiles, Sno*Melter, Freeze Free, SR Trace, Deep Heat are Registered Trademarks of EASYHEAT Inc.
