EMERSON Installation Instructions RGASKETXC62 Fisher
Summary
This technical manual provides comprehensive installation instructions for various gasket assemblies and sealing kits. It details the proper selection and assembly of key components—including spiral gaskets, bonnet gaskets, seat rings, shims, and specialized hardware—needed for industrial applications. Designed for professional maintenance personnel and engineers, this guide ensures accurate and reliable installation procedures for achieving optimal system sealing performance.
Page 1 Text Content

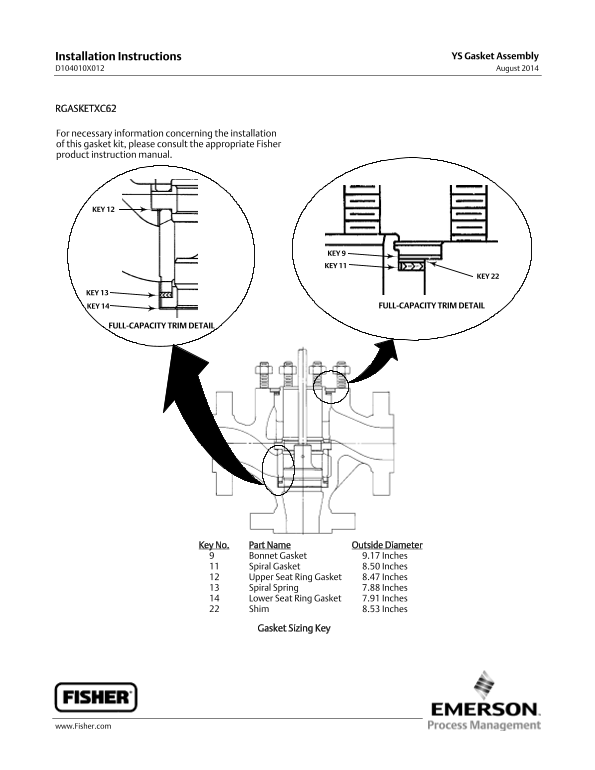

Installation Instructions YS Gasket Assembly
D104010X012 August
RGASKETXC62
For necessary information concerning the installation of this gasket kit, please consult the appropriate Fisher product instructionmanual.
KEY KEY
FULL-CAPACITY TRIMDETAILKEY
FULL-CAPACITY TRIMDETAIL
Key No. Part Name Outside Diameter
Bonnet Gasket 9.17 Inches Spiral Gasket 8.50 Inches Upper Seat Ring Gasket 8.47 Inches Spiral Spring 7.88 Inches Lower Seat Ring Gasket 7.91 Inches Shim 8.53 Inches
