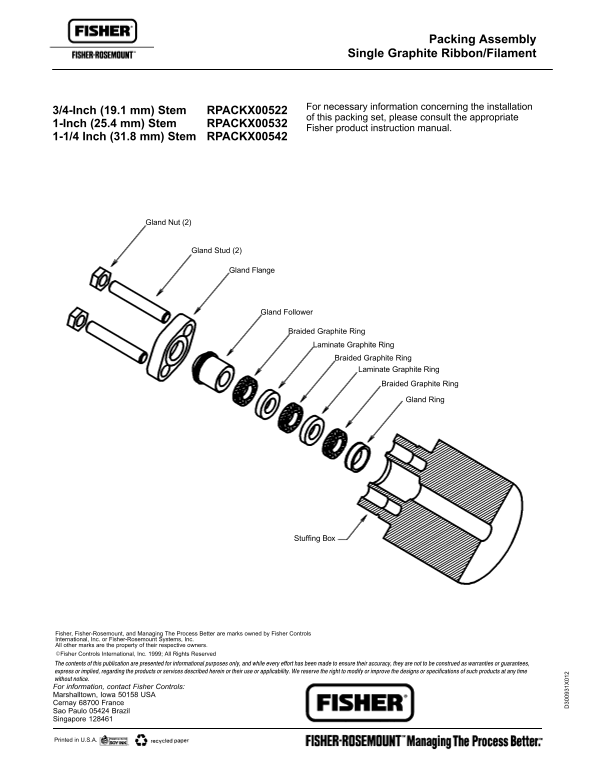

Packing Assembly
Single Graphite Ribbon/Filament
For necessary information concerning the installation
3/4-Inch (19.1 mm) Stem RPACKX00522
of this packing set, please consult the appropriate
1-Inch (25.4 mm) Stem RPACKX00532
Fisher product instruction manual.
1-1/4 Inch (31.8 mm) Stem RPACKX00542
Gland Nut (2)
Gland Stud (2)
Gland Flange
Gland Follower
Braided Graphite Ring Laminate Graphite Ring
Braided Graphite Ring Laminate Graphite Ring
Braided Graphite Ring
Gland Ring
Stuffing Box
