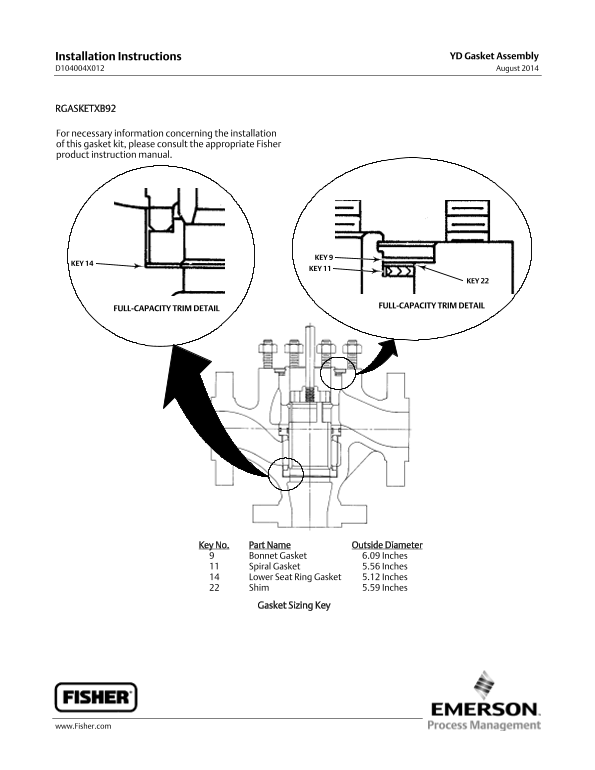

Installation Instructions YD Gasket Assembly
D104004X012 August
RGASKETXB92
For necessary information concerning the installation of this gasket kit, please consult the appropriate Fisher product instructionmanual.
FULL-CAPACITY TRIMDETAIL
FULL-CAPACITY TRIMDETAIL
Key No. Part Name Outside Diameter
Bonnet Gasket 6.09 Inches Spiral Gasket 5.56 Inches Lower Seat Ring Gasket 5.12 Inches Shim 5.59 Inches
Gasket Sizing Key
