EMERSON Installation Instructions RGASKETXC52 Fisher
Summary
This guide provides comprehensive installation instructions for essential Fisher gasket assemblies and related sealing components. Designed for industrial maintenance professionals, it details how to correctly install various standardized gaskets, seat rings, shims, and seals used in pressurized applications. Consult this manual to ensure proper fitment and reliable performance when servicing equipment requiring critical sealing solutions.
Page 1 Text Content

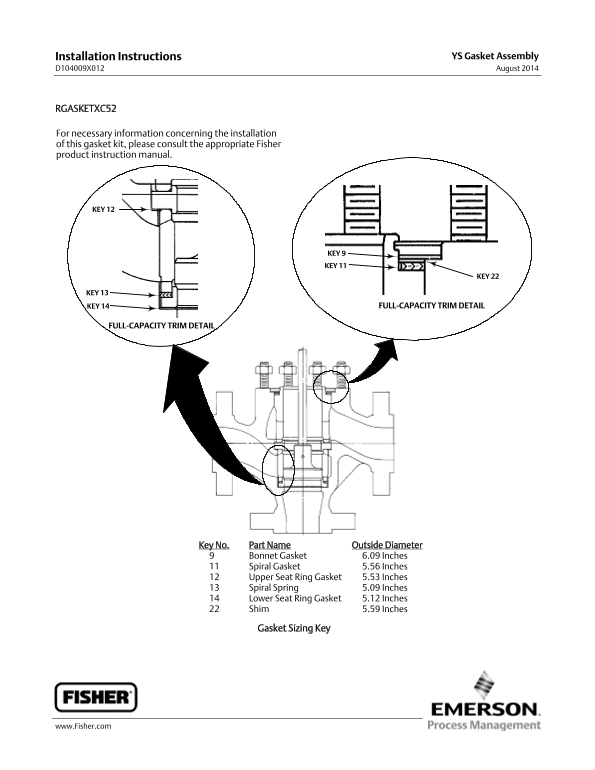

Installation Instructions YS Gasket Assembly
D104009X012 August
RGASKETXC52
For necessary information concerning the installation of this gasket kit, please consult the appropriate Fisher product instructionmanual.
KEY KEY
FULL-CAPACITY TRIMDETAILKEY
FULL-CAPACITY TRIMDETAIL
Key No. Part Name Outside Diameter
Bonnet Gasket 6.09 Inches Spiral Gasket 5.56 Inches Upper Seat Ring Gasket 5.53 Inches Spiral Spring 5.09 Inches Lower Seat Ring Gasket 5.12 Inches Shim 5.59 Inches
Gasket Sizing Key
