EMERSON Installation Instructions RGASKETXB82 Fisher
Summary
Essential sealing kit designed for industrial process management applications. This manual provides detailed specifications, part numbers, and sizing information for critical components like gaskets, seat rings, and shims needed to ensure secure equipment assembly. It is intended for professional maintenance personnel, engineers, and industrial users requiring accurate guidance on product selection and use with Emerson Process Management systems. Consult the appropriate Fisher technical guide for full installation details.
Page 1 Text Content

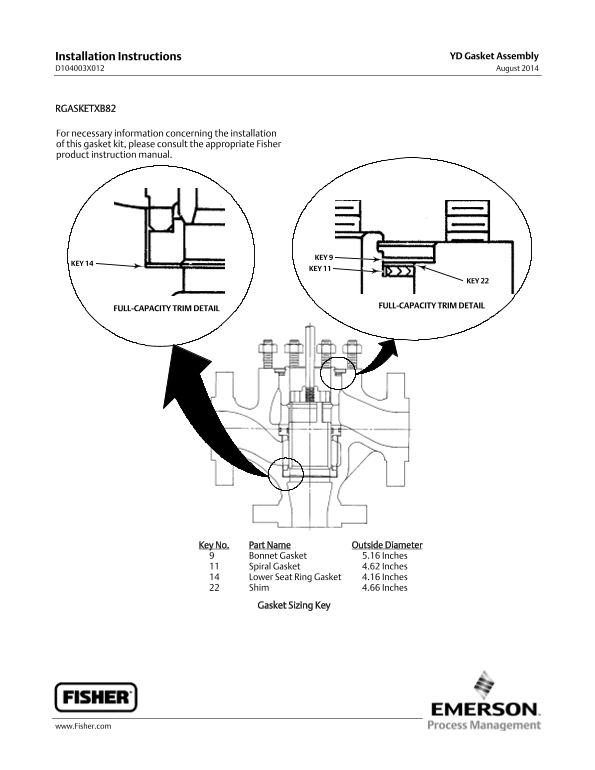

Installation Instructions YD Gasket Assembly
D104003X012 August
RGASKETXB82
For necessary information concerning the installation of this gasket kit, please consult the appropriate Fisher product instructionmanual.
FULL-CAPACITY TRIMDETAIL
FULL-CAPACITY TRIMDETAIL
Key No. Part Name Outside Diameter
Bonnet Gasket 5.16 Inches Spiral Gasket 4.62 Inches Lower Seat Ring Gasket 4.16 Inches Shim 4.66 Inches
Gasket Sizing Key
www.Fisher.com
