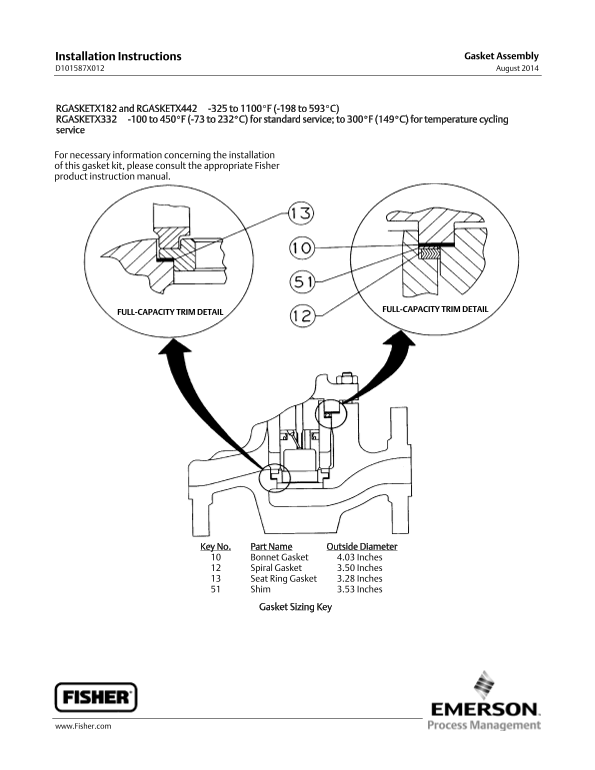

Installation Instructions Gasket Assembly
D101587X012 August
RGASKETX182 and RGASKETX442 -325 to 1100_F (-198 to 593_C) RGASKETX332 -100 to 450_F (-73 to 232_C) for standard service; to 300_F (149_C) for temperature cycling service
For necessary information concerning the installation of this gasket kit, please consult the appropriate Fisher product instructionmanual.
FULL-CAPACITY TRIMDETAIL
FULL-CAPACITY TRIMDETAIL
Key No. Part Name Outside Diameter
Bonnet Gasket 4.03 Inches Spiral Gasket 3.50 Inches Seat Ring Gasket 3.28 Inches Shim 3.53 Inches
Gasket Sizing Key
www.Fisher.com
