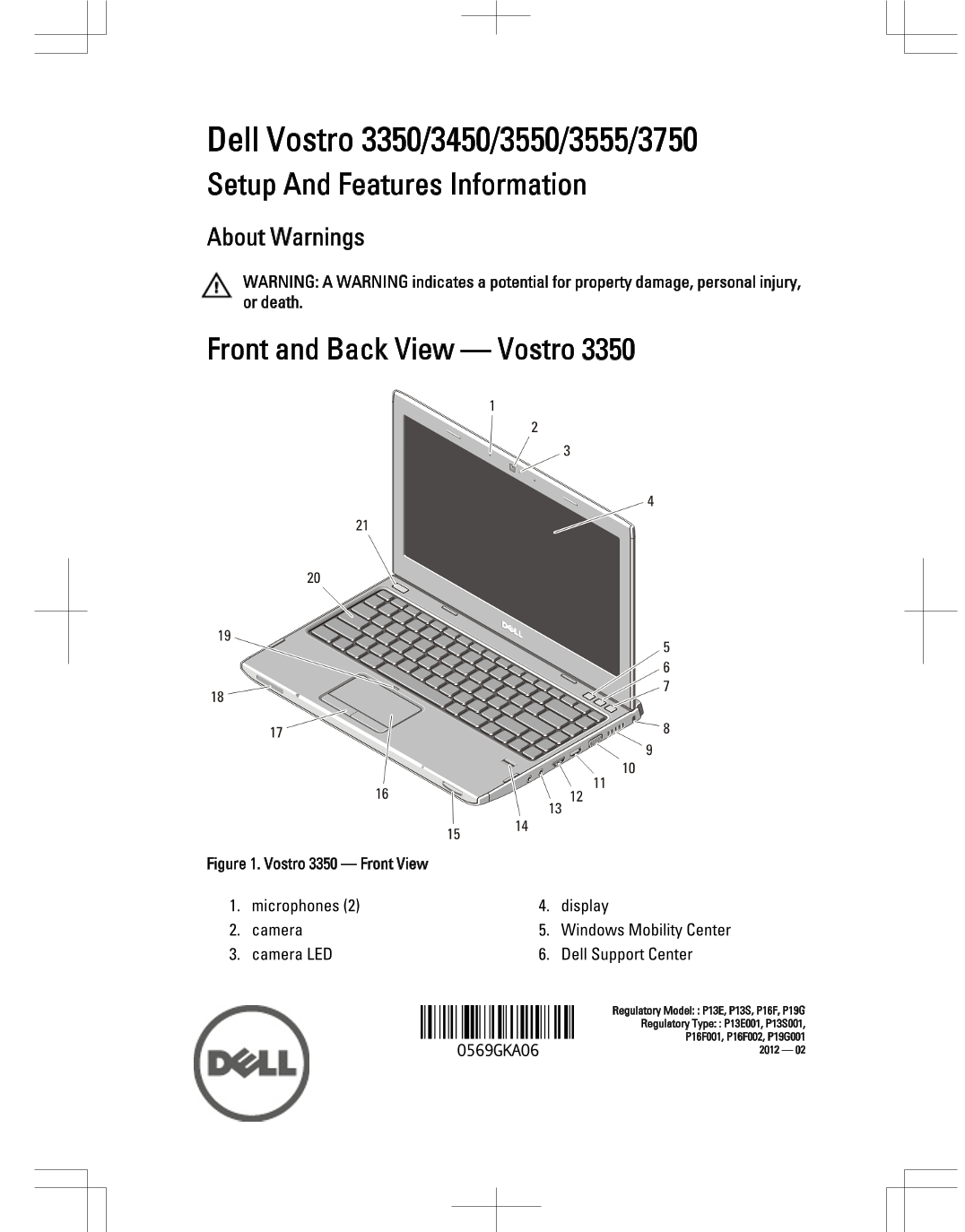

Dell Vostro 3350/3450/3550/3555/3750 Setup And Features Information About Warnings WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Front and Back View — Vostro...
Page 2
7. Dell Instant Launch Manager 15. 8-in-1 memory card reader 8. security slot 16. touchpad 9. cooling vents 17. touchpad buttons (2) 10. VGA connector 18. device status lights 11. HDMI connector 19. t...
Page 3
Front and Back View — Vostro 3450 Figure 3. Vostro 3450 — Front View 1. microphones (2) 11. optical drive eject button 2. camera 12. fingerprint reader 3. camera LED 13. touchpad 4. display 14. touchp...
Page 4
Figure 4. Vostro 3450 — Back View 1. network connector 8. HDMI connector 2. USB 3.0 connector 9. e-SATA connector 3. battery 10. USB 2.0 connector 4. security cable slot 11. 8-in-1 memory card reader ...
Page 5
Front and Back View — Vostro 3550/3555 Figure 5. Vostro 3550/3555 — Front View 1. microphones (2) 11. optical-drive eject button 2. camera 12. fingerprint reader 3. camera LED 13. Express Card slot 4....
Page 6
Figure 6. Vostro 3550/3555 — Back View 1. security cable slot 8. cooling vents 2. network connector 9. HDMI connector 3. USB 3.0 connector 10. e-SATA connector 4. battery 11. 8-in-1 memory card reader...
Page 7
Front and Back View — Vostro 3750 Figure 7. Vostro 3750 — Front View 1. microphones (2) 11. optical-drive eject button 2. camera 12. fingerprint reader 3. camera LED 13. Express Card slot 4. display 1...
Page 8
Figure 8. Vostro 3750 — Back View 1. network connector 7. e-SATA connector 2. VGA connector 8. HDMI connector 3. battery 9. audio connectors 4. security cable slot 10. 8-in-1 memory card reader 5. AC ...
Page 9
WARNING: The AC adapter works with electrical outlets worldwide. However, power connectors and power strips vary among countries. Using an incompatible cable or improperly connecting the cable to the ...
Page 10
Figure 11. USB Connector 4. Open the computer display and press the power button to turn on the computer. Figure 12. Power Button NOTE: It is recommended that you turn on and shut down your computer a...
Page 11
System Information AMD Quad Core Video Video type integrated on system board discrete video card Video controller and memory UMA: Vostro 3350 / 3450 / 3550 / 3750 Intel Graphics Media Accelerator HD V...
Page 12
Battery 8-cell "smart" lithium ion (2.8 Ah) Dimensions: Depth 4-cell / 8-cell — 43.45 mm (1.71 inches) Height 4-cell — 19.10 mm (0.75 inch) 8-cell — 42.36 mm (1.67 inches) Width 4-cell — 199...
Page 13
Battery Depth 6-cell / 9-cell — 57.80 mm (2.27 inches) Height 6-cell — 20.80 mm (0.82 inch) 9-cell — 40.15 mm (1.58 inches) Width 6-cell/9-cell — 255.60 mm (10.06 inches) Weight 6-cell — 340.00 g (0.7...
Page 14
AC Adapter Dimensions: Height 65 W — 28.30 mm (1.11 inches) 90 W — 22.60 mm (0.88 inch) 130 W — 25.40 mm (1.00 inch) Width 65 W — 137.20 mm (5.40 inches) 90 W — 147.00 mm (5.78 inches) 130 W — 154.70 ...
Page 15
Physical Vostro 3550/3555 Height 30.40 mm to 34.80 mm (1.20 inches to 1.37 inches) Width 375.40 mm (14.78 inches) Depth 260.20 mm (10.24 inches) Weight (minimum) 2.47 kg (5.45 lb) Vostro 3750 Height 3...
Page 16
Warranty Terms and Conditions (U.S. only) End User License Agreement Additional information on your product is available at support.dell.com/manuals. Information in this publication is subject to chan...
