D-Link DVG-G5402SP VoIP Wireless Router User’s Manual
Summary
Elevate your connectivity with this advanced VoIP Wireless Router. This comprehensive user manual is designed for users needing robust, feature-rich network management. The guide covers end-to-end setup, including internet connection, wireless security, and LAN configuration. It provides detailed instructions on utilizing sophisticated voice features (SIP compatible Call Waiting, Transfer) and advanced networking controls like firewall settings, making it ideal for prosumers and small business owners establishing complex smart home or office VoIP systems.
Page 1 Text Content

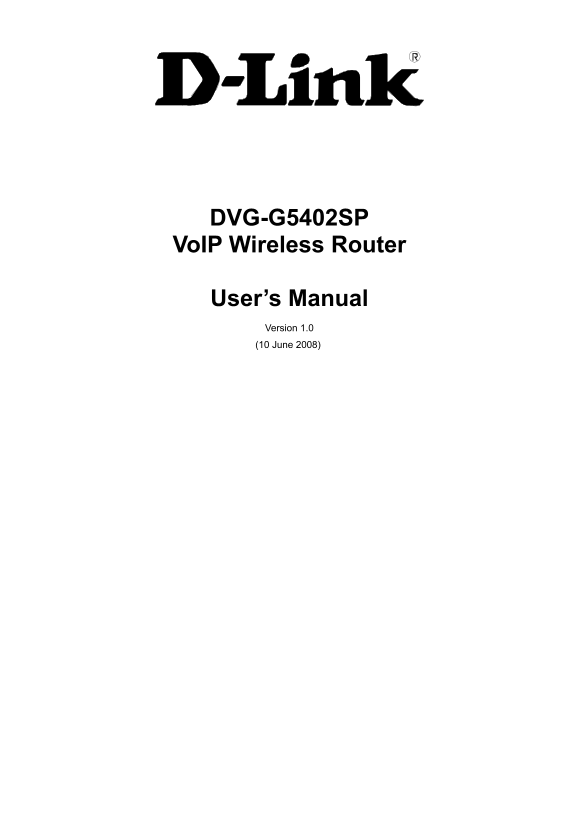

DVG-G5402SP Vo IP Wireless Router
User’s Manual Version 1.0 (10 June 2008)
Page Summary Contents For D-Link DVG-G5402SP VoIP Wireless Router User’s Manual
Page 1
DVG-G5402SP Vo IP Wireless Router User’s Manual Version 1.0 (10 June 2008)
Page 2
© 2007 D-Link Corporation. All rights reserved. Reproduction in any manner whatsoever without the written permission of D-Link Corporation is strictly forbidden. Trademarks used in this text: D-Link a...
Page 3
Contents 1. Introduction 1-1 Product Overview 1-2 Hardware Description 2. Vo IP Router Web Configuration (continued).......................................................................................
Page 4
DVG-G5402SP User’s Manual Product Overview 1. Introduction 1-1 Product Overview The DVG-G5402SP is designed to carry both voice and facsimile over the IP network and wirelessly share Internet access. ...
Page 5
DVG-G5402SP User’s Manual Telephone Interface Description 1-2 Hardware Description Front Panel Power: Power LED. A steady light indicates a proper connection to a power source. Prov./Alm.: A blinking ...
Page 6
DVG-G5402SP User’s Manual Telephone Interface Description Rear Panel 1. Line: Connect to your original telephone line on the wall jack with RJ-11 cable. 2. Phone Port (1-2): Connect to your phones usi...
Page 7
DVG-G5402SP User’s Manual SETUP 2. Vo IP Router Web Configuration (continued) During configuration, please follow the Setup Hint for some specific procedure in case the Vo IP Router fails to make the ...
Page 8
DVG-G5402SP User’s Manual SETUP Situation 2: (example: Enable IP Filtering) Setup Hint: 1. Click “Enable IP Filtering” check box to open the main screen. 2. Click “Add” to enter an entry. 3. After Add...
Page 9
DVG-G5402SP User’s Manual SETUP 2-1 SETUP 2-1-1 Internet Setup WAN (Wide Area Network) Settings are used to connect to your ISP (Internet Service Provider). The WAN settings are provided to you by you...
Page 10
DVG-G5402SP User’s Manual SETUP SETUP → Internet Setup SETUP → Internet Setup DHCP: Select this option if your ISP (Internet Service Provider) provides you an IP address automatically. Cable modem pro...
Page 11
DVG-G5402SP User’s Manual SETUP SETUP → Internet Setup PPPo E: Select this option if your ISP requires you to use a PPPo E (Point-to-Point Protocol over Ethernet) connection. Enter the PPPo E Account,...
Page 12
DVG-G5402SP User’s Manual SETUP 2-1-2 Wireless Setup This section instructs you how to setup your wireless network on the Vo IP Router device. Setup Hint: 1. Every device in the same wireless network ...
Page 13
DVG-G5402SP User’s Manual SETUP 2-1-2-2 Wireless Security This section introduces you different ways of wireless security you can setup. It is important to enable secure algorithm to protect your data...
Page 14
DVG-G5402SP User’s Manual SETUP Default Tx Key: You can select one of the keys as active key at a time. WEP Key Format: Select the preferred WEP Key Format according to which WEP encryption you choose...
Page 15
DVG-G5402SP User’s Manual SETUP AES - The most powerful encryption algorithm that is commonly used in WPA. WPA2 Cipher Suite: WPA2 Cipher Suite is used for the configuration of WPA2 or WPA2 Mixed. TKI...
Page 16
DVG-G5402SP User’s Manual SETUP WPA2 Cipher Suite: WPA2 Cipher Suite is used for the configuration of WPA2 or WPA2 Mixed. TKIP - TKIP is the security protocol used in WPA. The length of TKIP encryptio...
Page 17
DVG-G5402SP User’s Manual SETUP SETUP → LAN Setup Enable DHCP Server: This variable is to assign the IP address for the devices connected to LAN port of the Vo IP Router. IP Pool Starting Address: Ent...
Page 18
DVG-G5402SP User’s Manual ADVANCED 2-2 ADVANCED 2-2-1 Firewall and DMZ 2-2-1-1 DMZ DMZ (Demilitarized Zone) allows the server on the LAN site to be directly exposed to the Internet for accessing data ...
Page 19
DVG-G5402SP User’s Manual ADVANCED 2-2-1-2 Do S Prevention ADVANCED → Firewall and DMZ → Do S Prevention D-Link Systems, Inc. 19
Page 20
DVG-G5402SP User’s Manual ADVANCED ADVANCED → Firewall and DMZ → Do S Prevention Enable Do S Prevention: Check the box to prevent Do S attacks from WAN or LAN. There are various types of Do S attackin...
Page 21
DVG-G5402SP User’s Manual ADVANCED 2-2-1-3 IP Filtering Use IP Filters to deny particular LAN IP addresses from accessing the Internet. You can deny specific port numbers or all ports for a specific I...
Page 22
DVG-G5402SP User’s Manual ADVANCED 2-2-1-4 Port Filtering Port filtering enables you to control all data that can be transmitted over routers. When the port used at the source end is within the define...
Page 23
DVG-G5402SP User’s Manual ADVANCED 2-2-1-5 Virtual Server Enable users on Internet to access the WWW, FTP and other services from your NAT. It is also known as port forwarding. When remote users are a...
Page 24
DVG-G5402SP User’s Manual ADVANCED 2-2-2 Advanced Wireless 2-2-2-1 Advanced This section introduces advanced configuration for the wireless access point. If you are not familiar with the following fun...
Page 25
DVG-G5402SP User’s Manual ADVANCED RTS Threshold: RTS Threshold is a mechanism to implement in collision avoidance. In a large wireless network, two stations do not hear each other but can hear wirele...
Page 26
DVG-G5402SP User’s Manual ADVANCED 2-2-2-2 Access Control The Access Control setting provides a service that you can control different access rights for different wireless clients connected to your Vo...
Page 27
DVG-G5402SP User’s Manual ADVANCED 2-2-3 Advanced Network 2-2-3-1 QOS LAN Qo S ADVANCED → Advanced Network → Qo S Enable LAN Qo S: Check the box to enable LAN Qo S by Hardware. Priority: Use the drop-...
Page 28
DVG-G5402SP User’s Manual ADVANCED 2-2-3-2 Static Route Build static routes within an internal network. These routes will not apply to the Internet. ADVANCED → Advanced Network → Static Route Route: D...
Page 29
DVG-G5402SP User’s Manual MAINTENANCE 2-3 MAINTENANCE 2-3-1 Device Management MAINTENANCE → Device Management Password: By default there is no password configured. It is highly recommended that you cr...
Page 30
DVG-G5402SP User’s Manual MAINTENANCE Restore Default Settings MAINTENANCE → Backup and Restore Select Restore Default Settings to reset the Vo IP Router’s settings back to the factory default setting...
Page 31
DVG-G5402SP User’s Manual MAINTENANCE 2-3-3 Dynamic DNS ADVANCED → Dynamic DNS Enable Dynamic DNS: Check the box to enable DDNS function. It is only necessary when the Vo IP Router is set up behind an...
Page 32
DVG-G5402SP User’s Manual MAINTENANCE 2-3-4 Diagnostics Use “Ping” to verify if a remote peer is reachable. Enter a remote IP address and click “Test” to ping the remote host. The result would be show...
Page 33
DVG-G5402SP User’s Manual Dialing Principles 2-4 STATUS 2-4-1 Device Info STATUS → Device Info For WAN Port Information, it shows IP address, subnet mask, default gateway and DNS server. If you use PP...
Page 34
DVG-G5402SP User’s Manual Dialing Principles For LAN Port Information, it shows LAN port IP, subnet mask, and the status of DHCP server. For Hardware, it shows the hardware platform and driver version...
Page 35
DVG-G5402SP User’s Manual Dialing Principles 2-4-3 LAN Client The Active Wireless Clients table displayed the identification and transmission status of active wireless clients on wireless LAN interfac...
Page 36
DVG-G5402SP User’s Manual Dialing Principles 2-4-4 Statistics STATUS → Statistics Display the information of the last call made. Press Refresh button to get the latest RTP Packet Summary. 2-4-5 Logout...
Page 37
DVG-G5402SP User’s Manual Appendix Appendix Product Features WAN • One 10/100Mbps auto-negotiation, auto-crossover RJ-45 Ethernet port • Support static IP, PPPo E, Big Pond Cable and DHCP address assi...
Page 38
DVG-G5402SP User’s Manual Appendix Configuration & Maintenance • Configuration methods: o Web o IVR o Telnet • Status reports: o Port status o Registration status o Ping tests o STUN/UPn P status ...
