D-Link AirPlus DWL-810+ 2.4GHz Ethernet-to-Wireless Bridge Manual
Summary
The D-Link AirPlus DWL-810+ is an Ethernet-to-Wireless Bridge designed to transform wired equipment into Wi-Fi capable units. It allows users with devices like network printers, game consoles, or cameras to easily connect to existing wireless networks via 802.11b standards. The included manual guides you through simple installation using the Setup Wizard, detailed web configuration settings, and essential troubleshooting steps, ensuring seamless integration of your valuable wired hardware into a modern wireless home or office environment.
Page 1 Text Content

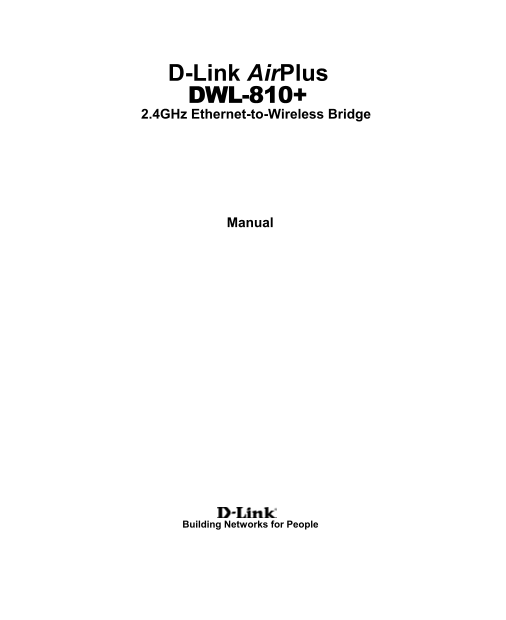

D-Link Air Plus DWL-810+ 2.4GHz Ethernet-to-Wireless Bridge
Manual
Building Networks for People
Page Summary Contents For D-Link AirPlus DWL-810+ 2.4GHz Ethernet-to-Wireless Bridge Manual
Page 1
D-Link Air Plus DWL-810+ 2.4GHz Ethernet-to-Wireless Bridge Manual Building Networks for People
Page 2
Contents 1. Package Contents 2. Introduction........................................................ 3. Wireless Basics 4. Getting Started 5. Web Configuration............................................
Page 3
1. Package Contents Contents of Package: • D-Link Air Plus DWL-810+ Ethernet-to-Wireless Bridge • AC Power Adapter – 5V; 2.5A • Manual and Warranty on CD • Ethernet Cable (the DWL-810+ Auto MDI/MDIX E...
Page 4
2. Introduction The D-Link Air Plus DWL-810+ Ethernet-to-Wireless Bridge is a device that can be implemented in a variety of ways to provide wireless access by converting an Ethernet connection. For d...
Page 5
Features and Benefits • Transforms an Ethernet device into a wireless device • Up to 22Mbps transfer rates* • Fully compatible with standard 802.11b-compliant devices • Equipped with one 10/100 Ethern...
Page 6
Connections Ethernet Port – this RJ-45 Auto MDI/MDIX port provides Reset Button connection to a network device using a Cat 5 Ethernet cable. (The auto MDI/MDIX port accommodates either Straight- Throu...
Page 7
3. Wireless Basics With the DWL-810+ you can provide instant wireless access to the LAN (Local Area Network) for Ethernet-enabled devices. With an Ethernet (CAT5) cable simply connect the DWL-810+ to ...
Page 8
Wireless Basics People use WLAN technology for many different purposes. Mobility - Productivity increases when people have access to data in any location within the operating range of the WLAN. Manage...
Page 9
Wireless Basics The DWL-810+ is also compatible with the following D-Link Air Plus family of products: DWL-650+ Enhanced 2.4GHz Wireless Cardbus Adapter for laptop PCs DWL-520+ Enhanced 2.4GHz Wireles...
Page 10
Wireless Basics meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position Access Points and Adapters so that the ...
Page 11
Getting Started Setup #2: This example illustrates an Infrastructure setup. To connect the DWL-810+ to a wireless network with a wireless router or access point, please refer to the printed Quick Inst...
Page 12
5. Web Configuration Before using the Web Configuration for the DWL-810+, please consider the following: You will need a Java Script-enabled web-browser such as the Internet Explorer 6.0 or later, or ...
Page 13
Configuration Menu Whenever you want to configure your network or the DWL-810+, you can access the Configuration Utility by opening the web-browser and typing in the IP Address of the DWL-810+. The DW...
Page 14
Configuration Menu Network This window displays the default settings of the DWL-810+. The default IP Address is 192.168.30. If you select Dynamic IP Address, you will obtain a dynamic IP Address from ...
Page 15
Configuration Menu Channel: Channel 6 is the default channel. Input a new number if you want to change the default setting. All devices on the network must be set to the same channel to communicate on...
Page 16
Configuration Menu Admin Monday, December 30, 2002 Administrator Settings: Change your password in this window. Re-enter the new password to confirm. It can be up to 14 characters in length. Please ke...
Page 17
Configuration Menu The Help window displays information about each window in the Configuration menu. When you change the settings in the Configuration menu, you will need to restart the DWL-810+ for t...
Page 18
6. Troubleshooting This section provides solutions to situations that can occur during the installation and operation of the DWL-810+ Ethernet-to-Wireless Bridge. Read the following descriptions if yo...
Page 19
How do I assign a Static IP Address in Windows XP/2000? (continued) • Right-click on Local Area Connections • Double-click Properties • Click on Internet Protocol (TCP/IP) • Click Properties • In the ...
Page 20
How do I assign a Static IP Address in Windows XP/2000? (continued) • IP Address: e.g., 192.168.0.2 • Subnet Mask: 255.255.255.0 • Default Gateway: Enter the LAN IP address of the wireless router. (D-...
Page 21
How do I assign a Static IP Address in Macintosh OSX? (continued) • Select Built-in Ethernet in the Show pull-down menu • Select Manually in the Configure pull-down menu. • Input the Static IP Address...
Page 22
Advanced Setup (optional) For advanced setup features, enter http://192.168.0.30 into your Internet browser and gain access to the web configuration of the DWL-810+. The advanced setup features can be...
Page 23
8. I cannot connect the DWL-810+ to my network. • Check that the LED indicators for the broadband modem are indicating normal activity. If not, there may be a problem with the broadband connection. • ...
Page 24
• If you are using 2.4GHz cordless phones, X-10 equipment or other home security systems, ceiling fans, and lights, your wireless connection will degrade dramatically or drop altogether. Try changing ...
Page 25
• Outdoors – Up to 1,312 ft. (400m)* *Environmental factors may adversely affect range Modulation Technology: • PBCC – Packet Binary Convolutional Coding • DSSS – Direct Sequence Spread Spectrum • 11-...
Page 26
Safety & Emissions: • FCC • UL Dimensions: • L=3.5 inches (90mm) • W=3.2 inches (82mm) • H=1.6 inches (40mm) Weight: • 0.34 lbs (153g) Warranty: • 3 Year 9. Contacting Technical Support You can fi...
Page 27
10. Warranty and Registration Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited warranty for its product only to the person or entity that ori...
Page 28
The original product owner must obtain a Return Material Authorization (“RMA”) number from the Authorized D-Link Service Office and, if requested, provide written proof of purchase of the product (suc...
Page 29
Governing Law: This Limited Warranty shall be governed by the laws of the State of California. Some states do not allow exclusion or limitation of incidental or consequential damages, or limitations o...
Manual Details
| Brand | D-Link |
|---|---|
| Pages | 29 |
| File Size | 1.21 MB |
| Published | May 28, 2026 |
74 views
Enter the captcha to get the download link:
Frequently Asked Questions
What types of wired devices can the DWL-810+ connect wirelessly?
It can transform virtually any Ethernet device into a wireless unit, including printers, game consoles, and set top boxes.
How is connectivity configured on the new device?
Users should use an Ethernet connection to configure it and follow the Setup Wizard via the provided Quick Installation Guide.
Is the Ethernet port compatible with different cable types?
Yes, the RJ-45 Auto MDI/MDIX port automatically accommodates both Straight-Through or Cross-Over cables.
How should I handle radio frequency interference?
If harmful interference occurs, users can try reorienting antennas, increasing separation distance, or connecting the device to a different circuit outlet.
